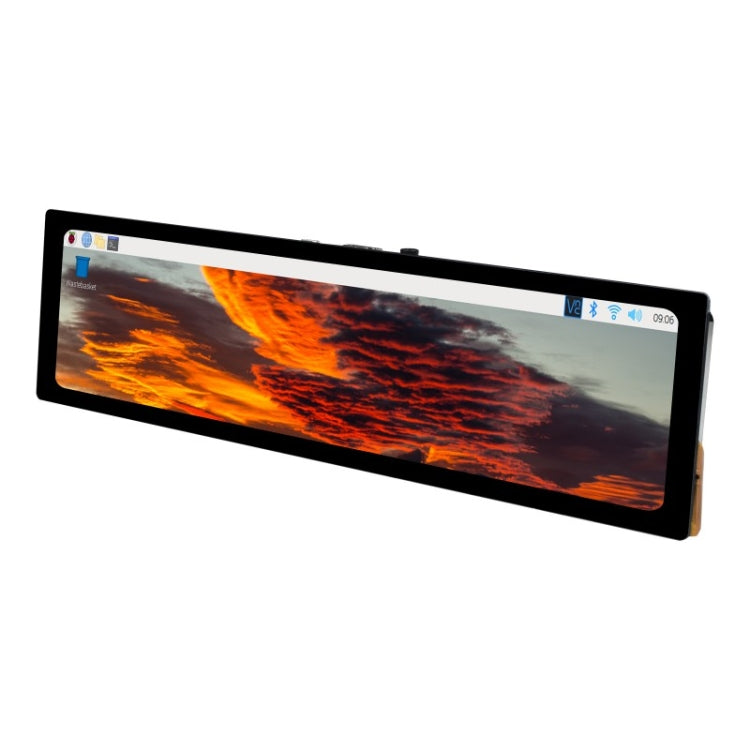

Features1. 11.9 inch IPS screen, 320 x1480 high resolution
2. Toughened glass capacitive touch panel, 6H hardness.
3. Capacitive touch, supports up to 5-point touch.
4. Working with Raspberry Pi, we provide the driver for Raspberry Pi OS.
5. Adjustable brightness via software

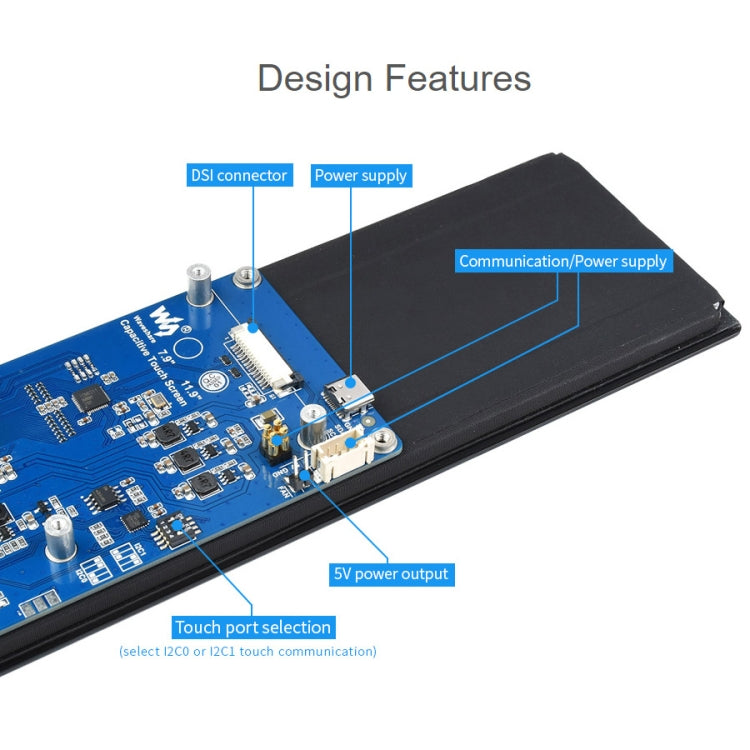

6. DSI interface, refresh rate up to 60Hz.

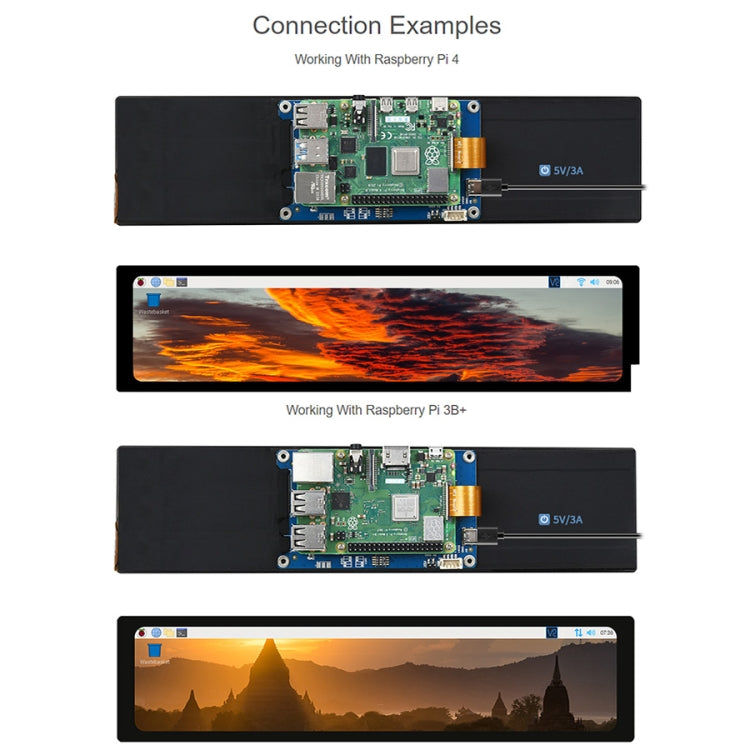

7. Support Pi 4B/3B+/3A+, CM3+/4,must be used with adapter cable
Package List1. 11.9 inch DSI LCD x 1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x 2
3. Screws pack x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.45kgs / 1.00lb
|
| One Package Size |
30cm * 10cm * 5cm / 11.81inch * 3.94inch * 1.97inch
|
| Carton Weight |
20.00kgs / 44.09lb
|
| Carton Size |
52cm * 42cm * 32cm / 20.47inch * 16.54inch * 12.6inch
|
| Loading Container |
20GP: 381 cartons * 40 pcs = 15240 pcs
40HQ: 885 cartons * 40 pcs = 35400 pcs
|
|
