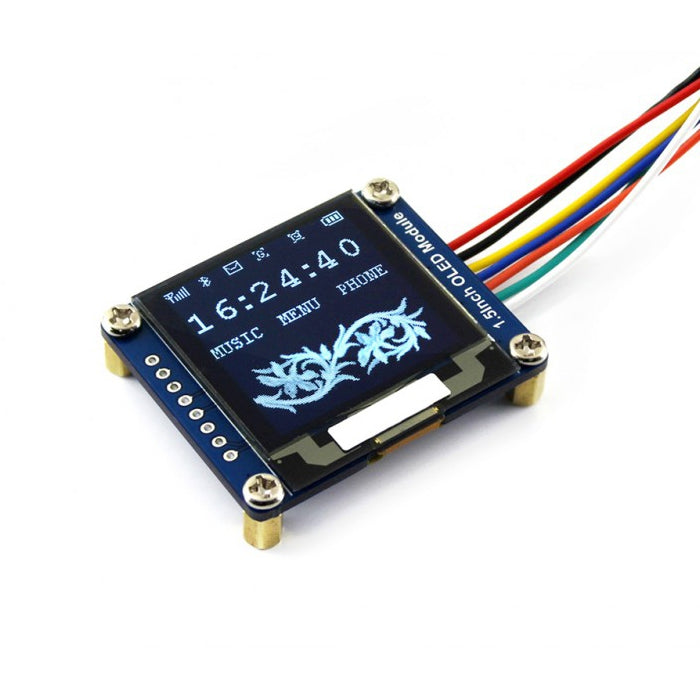

1. 128x128 high resolution
2. 16 gray scale, better display effect

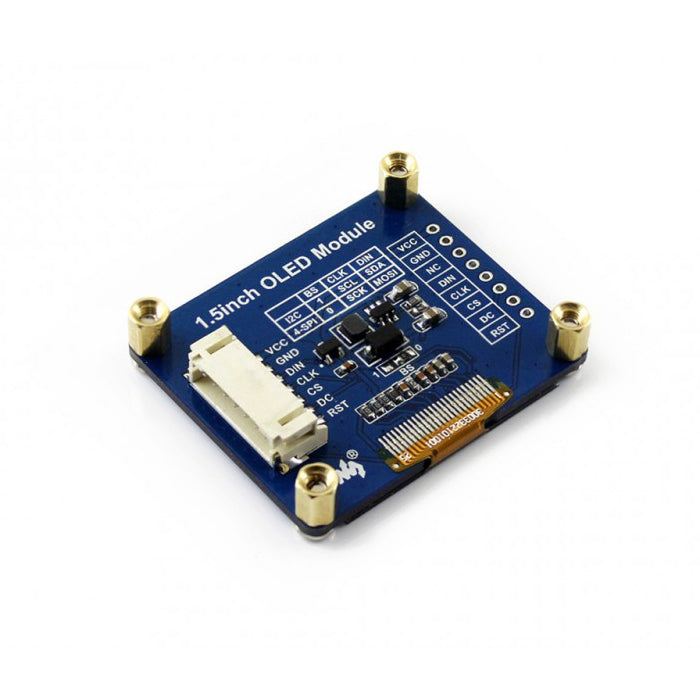

3. Supports SPI or I2C interface, configured via onboard resistor
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
5. Driver: SSD1327
6. Interface: SPI / I2C
7. Display color: White
8. Gray scale: 16
9. Resolution: 128x128 (most other competitive products are typically 128x64)
10. Viewing angle: >160?°
11. Operating voltage: 3.3V / 5V
12. Dimension: 44.5 x 37 (mm)
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.11lb
|
| One Package Size |
10cm * 8cm * 8cm / 3.94inch * 3.15inch * 3.15inch
|
| Carton Weight |
6.30kgs / 13.89lb
|
| Carton Size |
60cm * 32cm * 32cm / 23.62inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 434 cartons * 150 pcs = 65100 pcs
40HQ: 1007 cartons * 150 pcs = 151050 pcs
|
|
