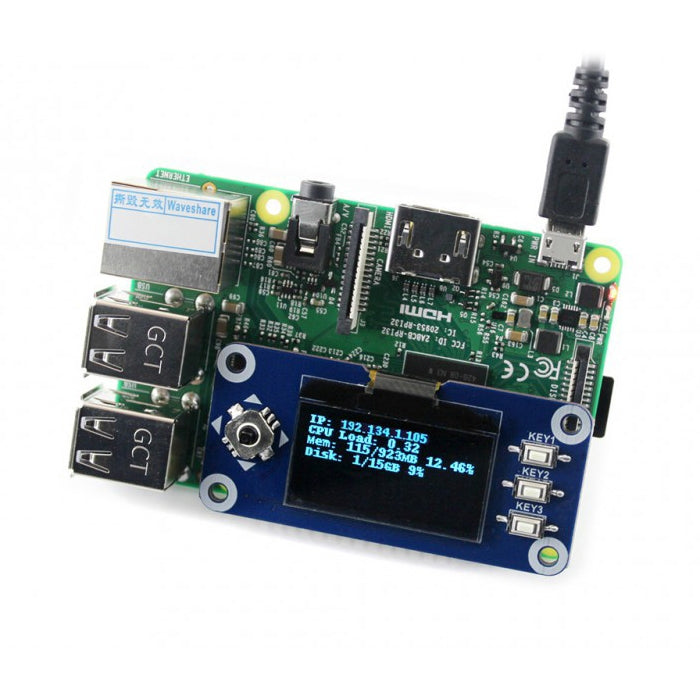

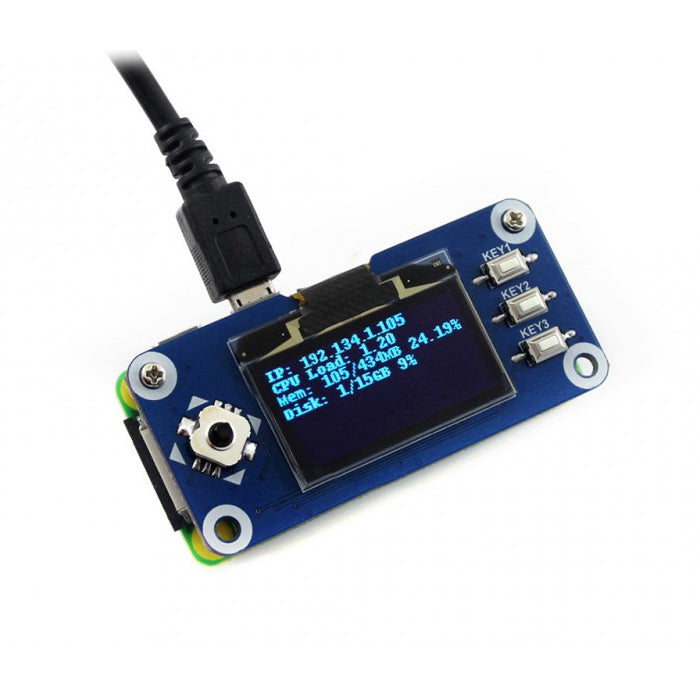

1. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W

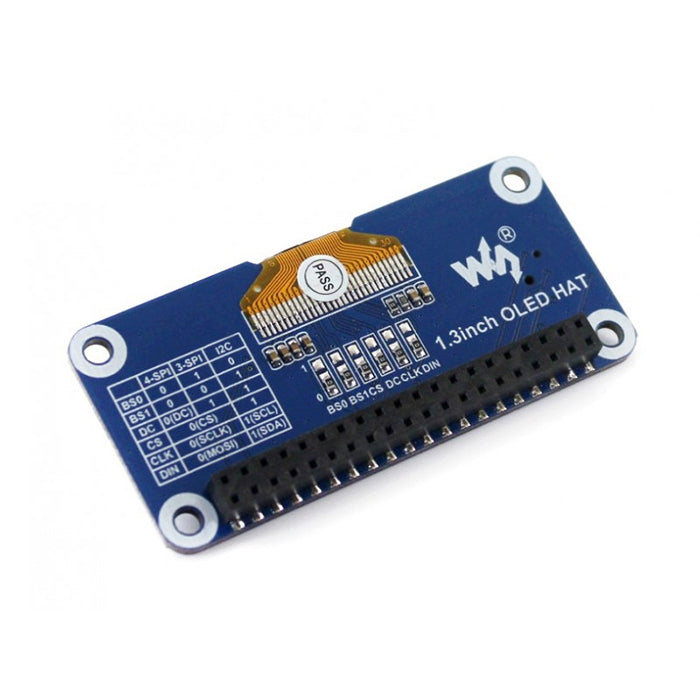

2. Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor

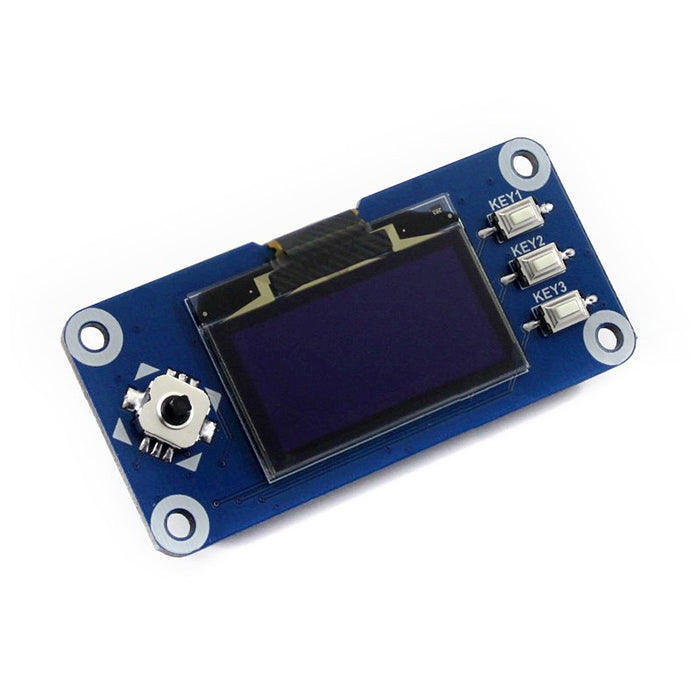

3. 1x joystick (5-position), 3x pushbuttons, handy and useful
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
5. Driver: SH1106
6. Interface: 4-wire SPI, 3-wire SPI, I2C
7. Display color: blue
8. Resolution: 128x64
9. Operating voltage: 3.3V
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.11lb
|
| One Package Size |
10cm * 8cm * 8cm / 3.94inch * 3.15inch * 3.15inch
|
| Carton Weight |
8.60kgs / 18.96lb
|
| Carton Size |
60cm * 32cm * 32cm / 23.62inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 434 cartons * 150 pcs = 65100 pcs
40HQ: 1007 cartons * 150 pcs = 151050 pcs
|
|
