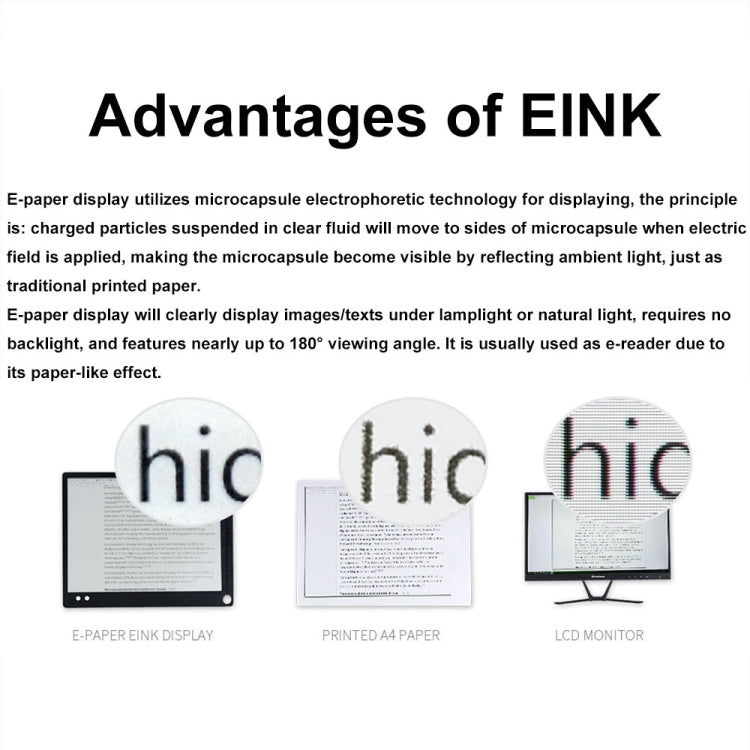

1. No backlight is required, and the display content of the last screen can be maintained for a long time when the power is off
2. The power consumption is very low, and basically only consumes power when refreshing

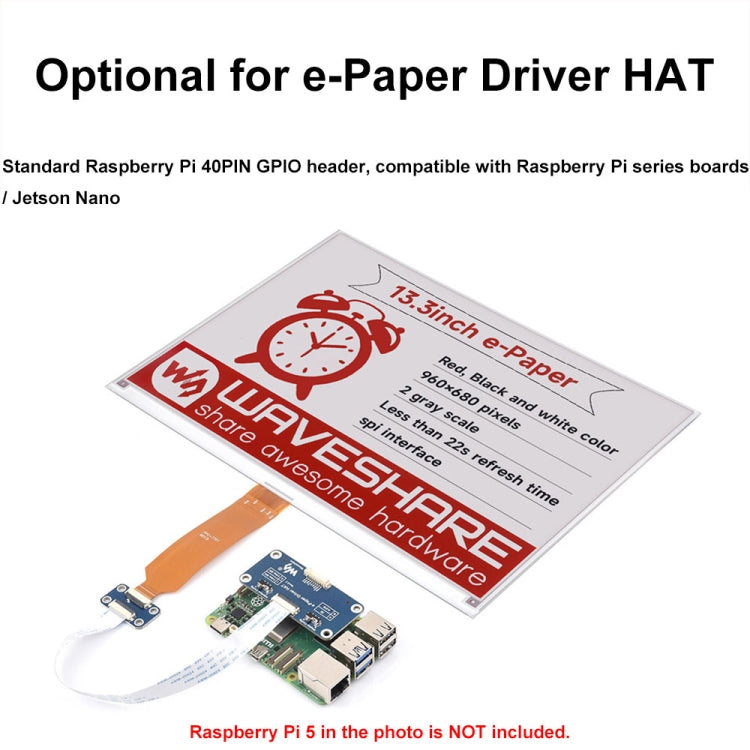

3. Provide a complete supporting data manual (driver board schematic, Raspberry Pi/Jetson Nano/RDKX3/Arduino/STM32 and other sample programs)
4. Bare screen version working voltage: 3.3V
5. Screen size: 286.32 x 212.26 x 1.20mm
6. Display size: 275.52 x 195.16mm
7. Dot pitch: 0.287 x 0.287mm
8. Resolution: 960 x 680 pixels
9. Display color: red, black, white
10. Grayscale level: 2
11. Local refresh: 2.9s
12. Global refresh: 22s
13. Refresh power consumption: 75mW
14. Sleep current: less than 0.01 microamperes (close to 0)
15. Viewing angle: greater than 170 degrees

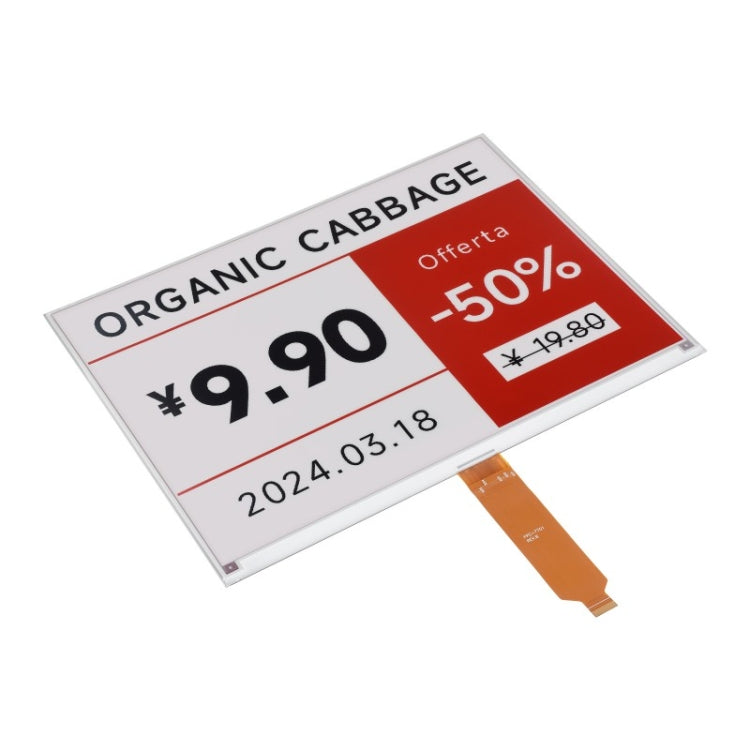

16. Application areas: for display applications such as shelf labels and industrial instruments
17. Weight: 164 grams
Packing list:
-Display x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.20kgs / 0.45lb
|
| One Package Size |
34cm * 25cm * 3cm / 13.39inch * 9.84inch * 1.18inch
|
| Carton Weight |
4.30kgs / 9.48lb
|
| Carton Size |
36cm * 27cm * 50cm / 14.17inch * 10.63inch * 19.69inch
|
| Loading Container |
20GP: 548 cartons * 16 pcs = 8768 pcs
40HQ: 1273 cartons * 16 pcs = 20368 pcs
|
|
