1. Working voltage: 3.3V/5V
2. Interface: 3-wire SPI, 4-wire SPI
3. Gray scale: 2
4. Full refresh time: 321
5. Refresh power: about 57mW

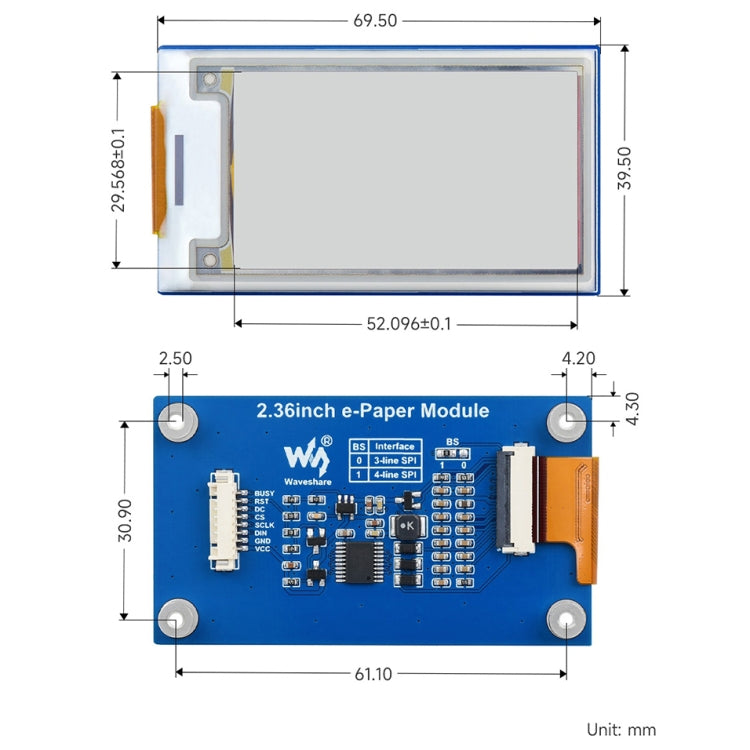

6. Dot pitch: 0.176 × 0.176mm
7. Standby current: about 0.01uA

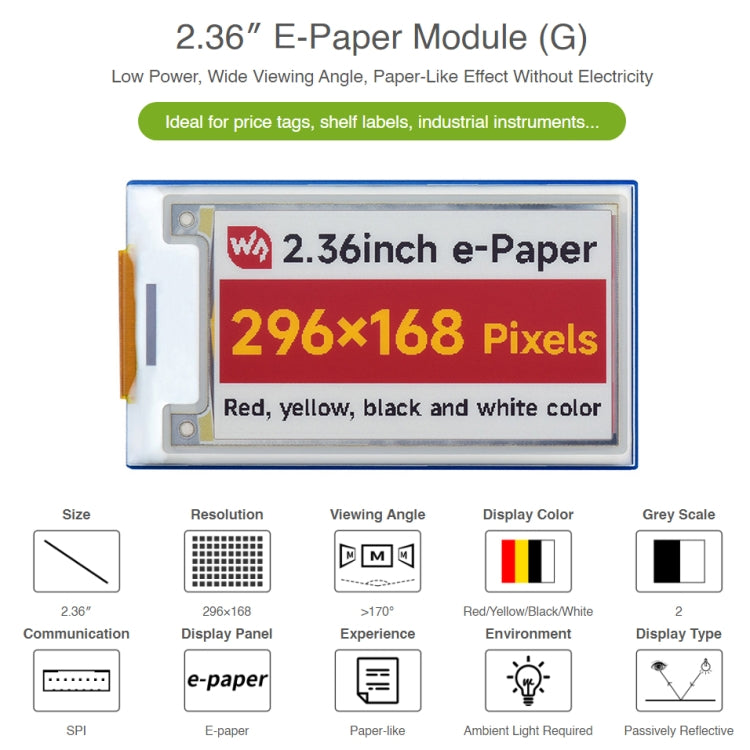

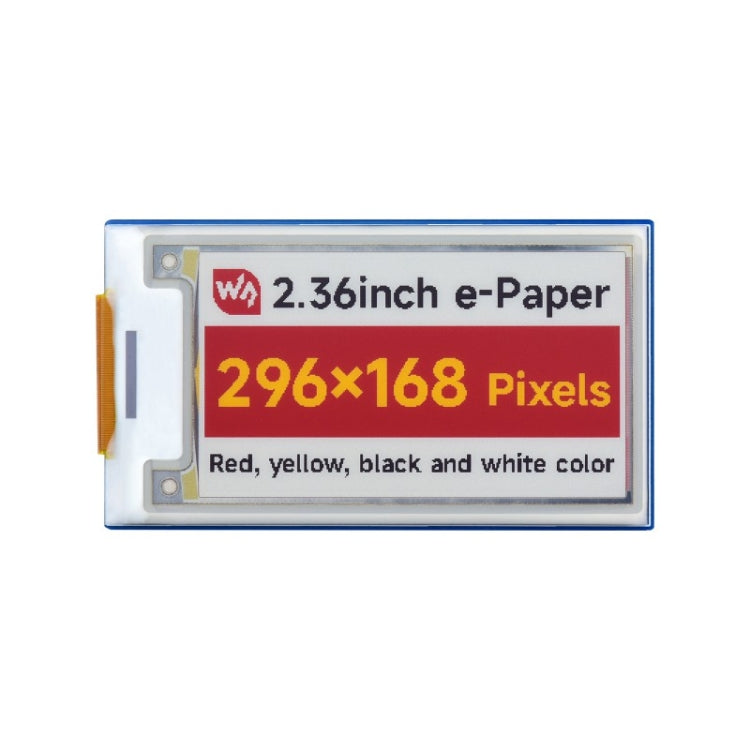

8. Resolution: 296×168 pixels
9. Without backlight, the last content can be displayed for a long time even if the power is cut off.
10. Ultra-low power consumption, basically only need to refresh.

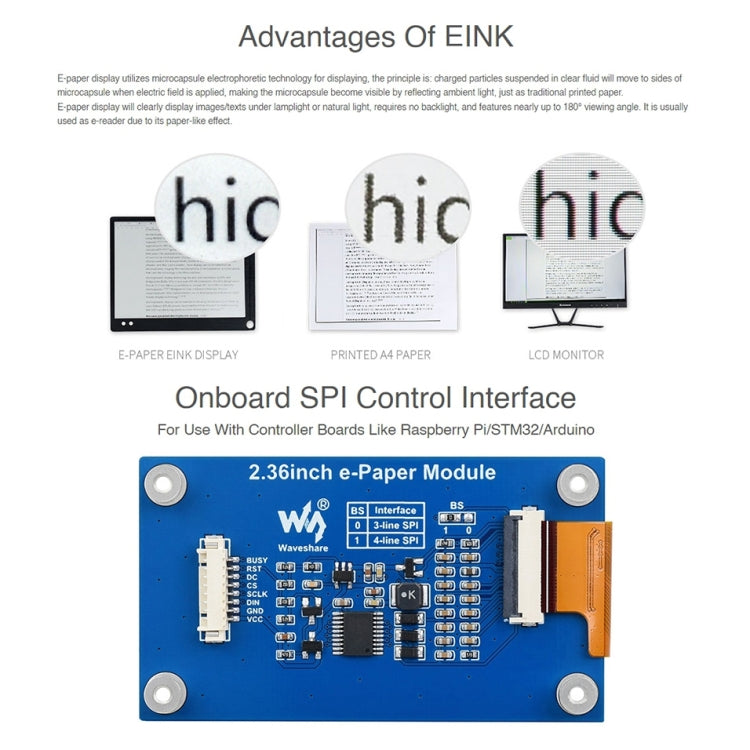

11. SPI interface for connecting Raspberry Pi / Jetson Nano / Arduino / STM32 and other controller boards.

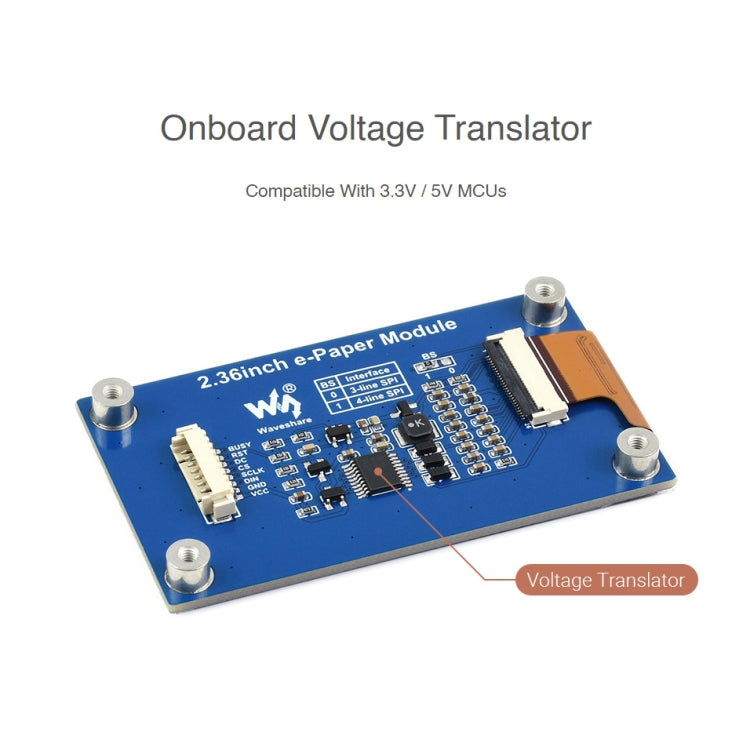

12. Onboard voltage converter, compatible with 3.3V/5V MC.
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
8cm * 4cm * 3cm / 3.15inch * 1.57inch * 1.18inch
|
| Carton Weight |
25.00kgs / 55.12lb
|
| Carton Size |
42cm * 34cm * 32cm / 16.54inch * 13.39inch * 12.6inch
|
| Loading Container |
20GP: 583 cartons * 400 pcs = 233200 pcs
40HQ: 1354 cartons * 400 pcs = 541600 pcs
|
|
