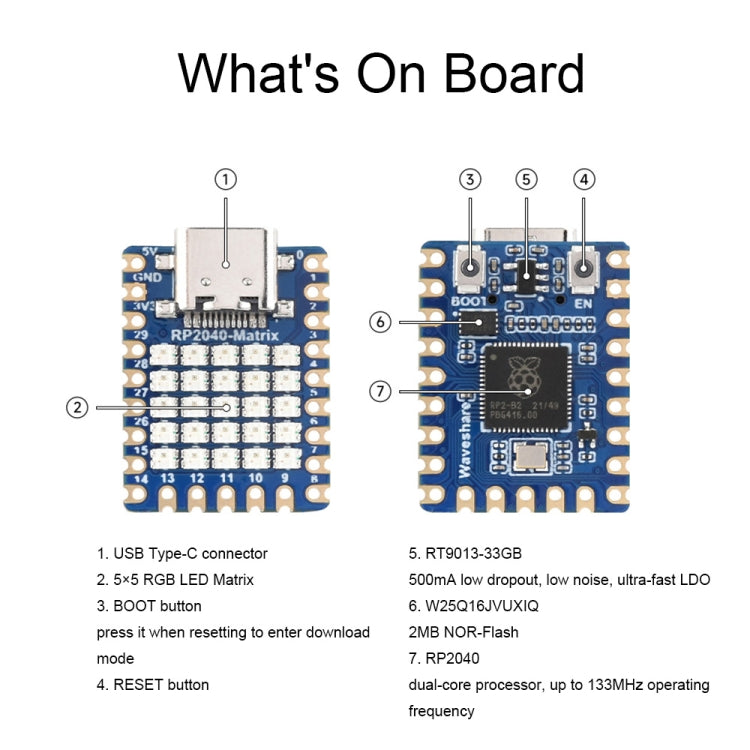

1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 2MB of on-board Flash memory

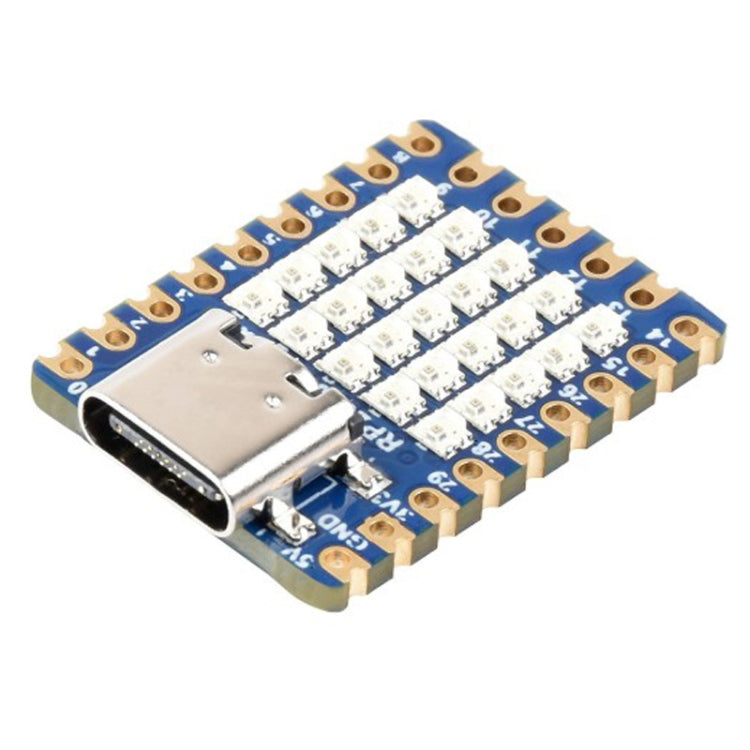

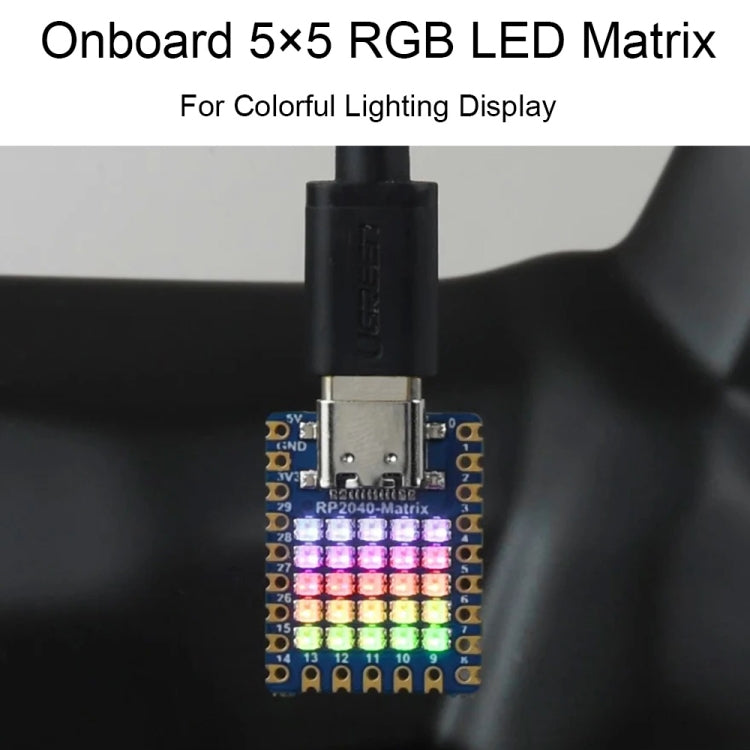

4. Onboard 5 × 5 RGB LED matrix for colorful lighting display

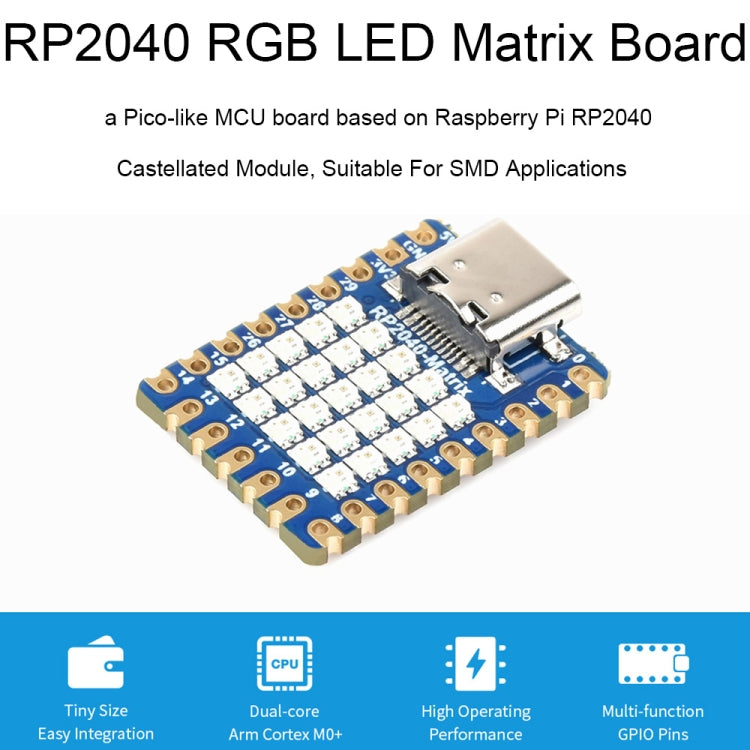

5. Castellated module allows soldering direct to carrier boards
6. USB 1.1 with device and host support
7. Low-power sleep and dormant modes
8. Drag-and-drop programming using mass storage over USB

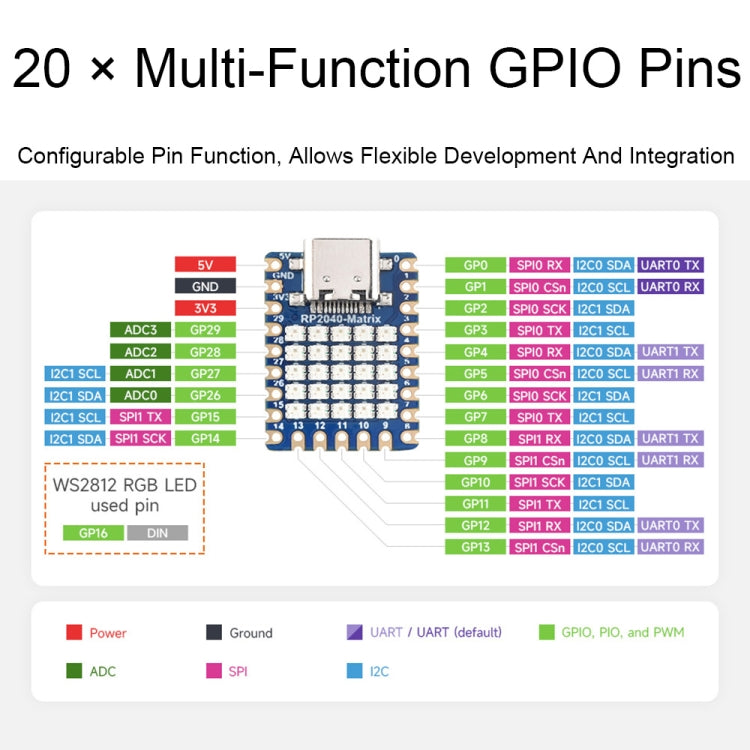

9. 20 × multi-function GPIO pins
10. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
11. Accurate clock and timer on-chip
12. Temperature sensor
13. Accelerated floating-point libraries on-chip
14. 8 × Programmable I/O (PIO) state machines for custom peripheral support
Specification:
|
Package Weight
|
| One Package Weight |
0.02kgs / 0.05lb
|
| One Package Size |
6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch
|
| Carton Weight |
9.00kgs / 19.84lb
|
| Carton Size |
47cm * 31cm * 15cm / 18.5inch * 12.2inch * 5.91inch
|
| Loading Container |
20GP: 1220 cartons * 500 pcs = 610000 pcs
40HQ: 2832 cartons * 500 pcs = 1416000 pcs
|
|
