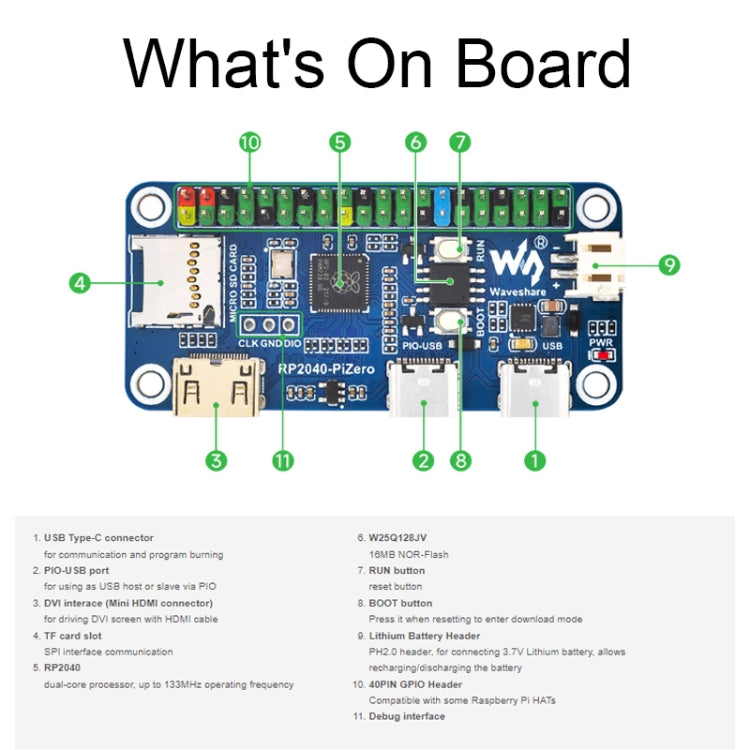

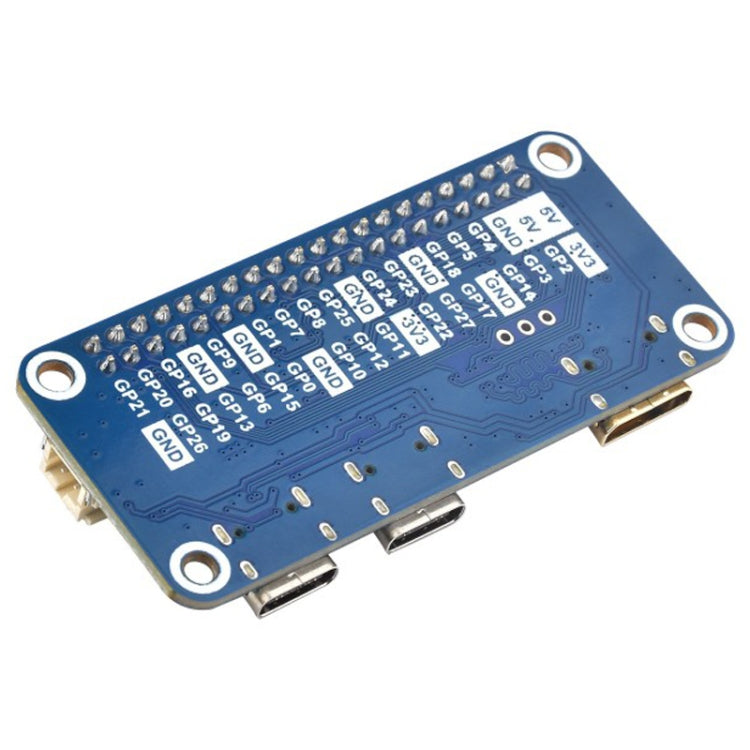

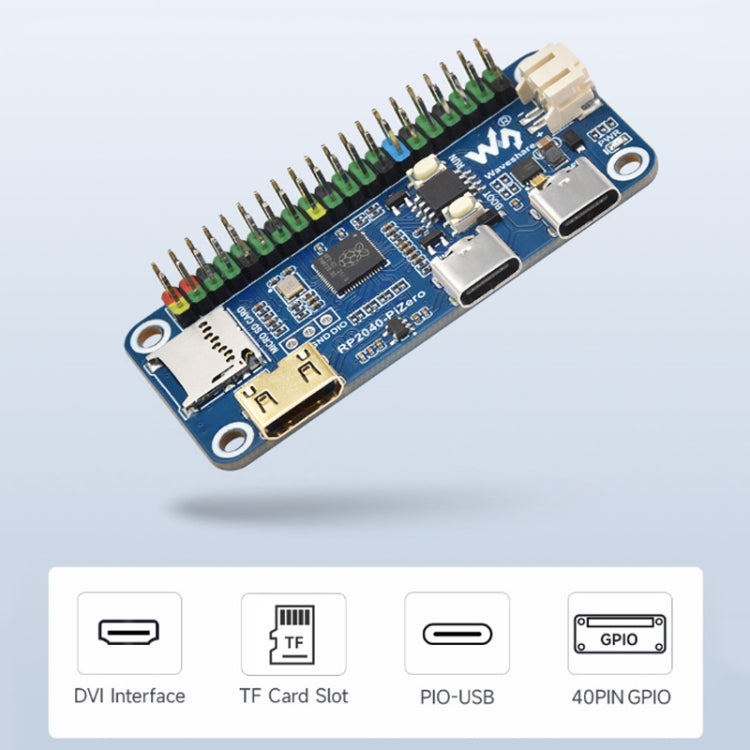

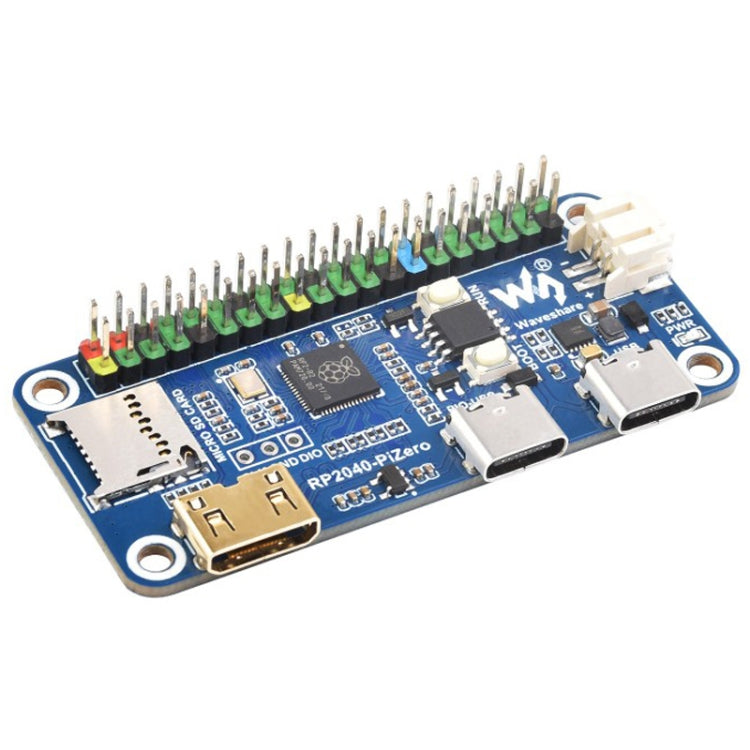

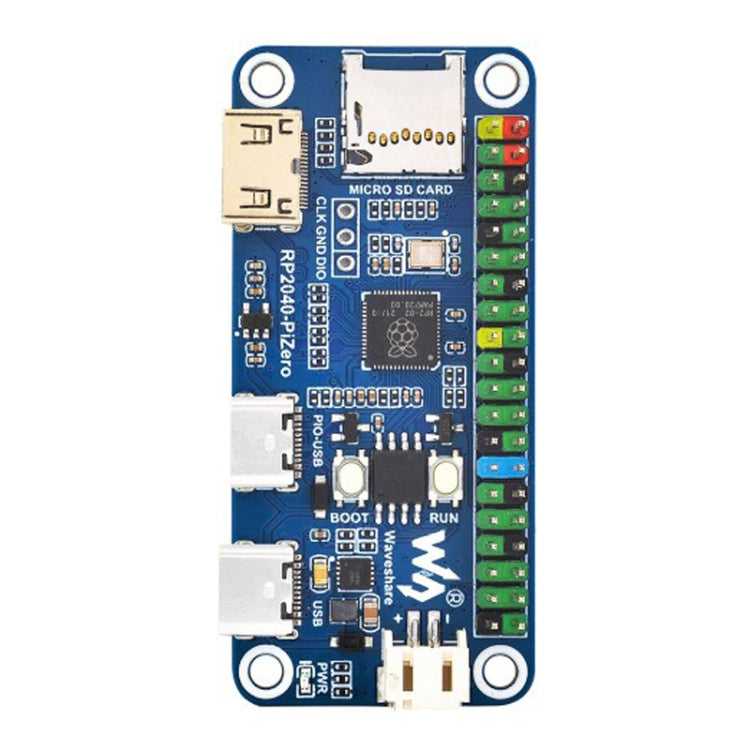

1. Onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, easy to develop and integrate into products
2. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
3. Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
4. 264KB of SRAM, and 16MB of onboard Flash memory
5. Onboard DVI interface can drive most HDMI screens (DVI compatibility required)
6. Supports using as a USB host or slave via onboard PIO-USB port
7. Onboard TF card slot for reading and writing TF card
8. Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
9. USB 1.1 with device and host support
10. Drag-and-drop programming using mass storage over USB
11. Low-power sleep and dormant modes
12. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
13. Accurate clock and timer on-chip
14. Temperature sensor
15. Accelerated floating-point libraries on-chip
16. 8 × Programmable I/O (PIO) state machines for custom peripheral support

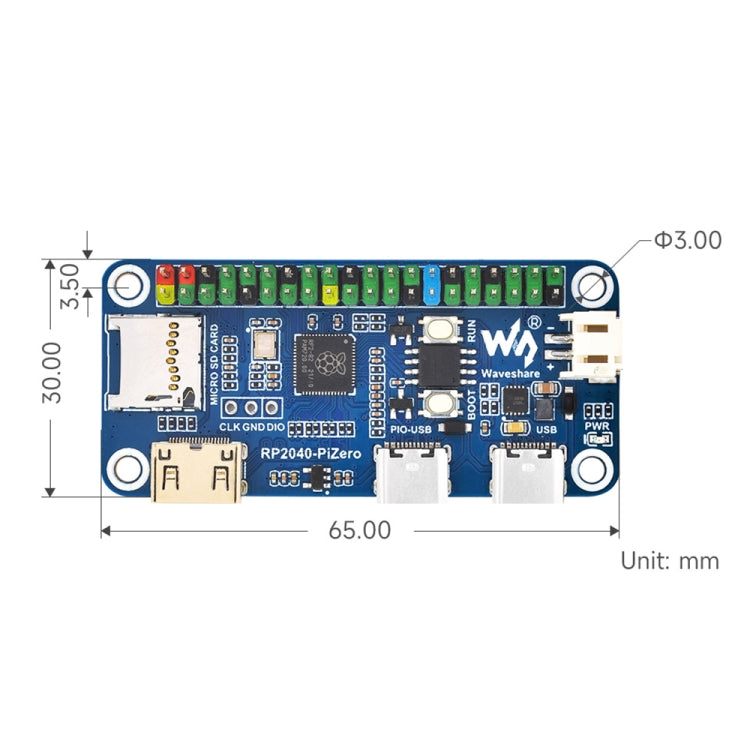

17. Product size: 65 x 30mm
18. Weight: 12 grams
Specification:
|
Package Weight
|
| One Package Weight |
0.02kgs / 0.05lb
|
| One Package Size |
10cm * 2cm * 5cm / 3.94inch * 0.79inch * 1.97inch
|
| Carton Weight |
7.58kgs / 16.71lb
|
| Carton Size |
32cm * 38cm * 32cm / 12.6inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 685 cartons * 324 pcs = 221940 pcs
40HQ: 1590 cartons * 324 pcs = 515160 pcs
|
|
