1. Pixel count: 5 million
2. Photographic sensor: OS05A10

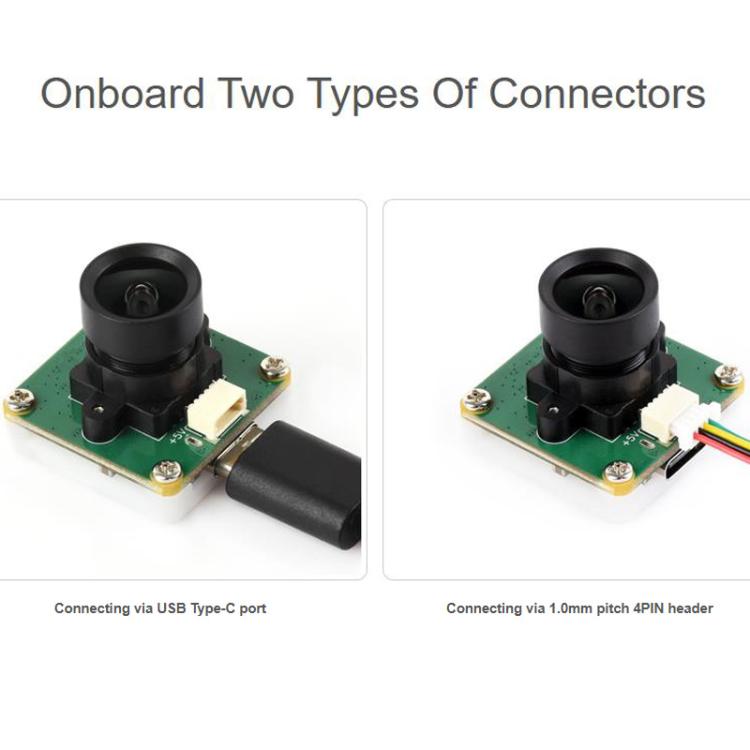

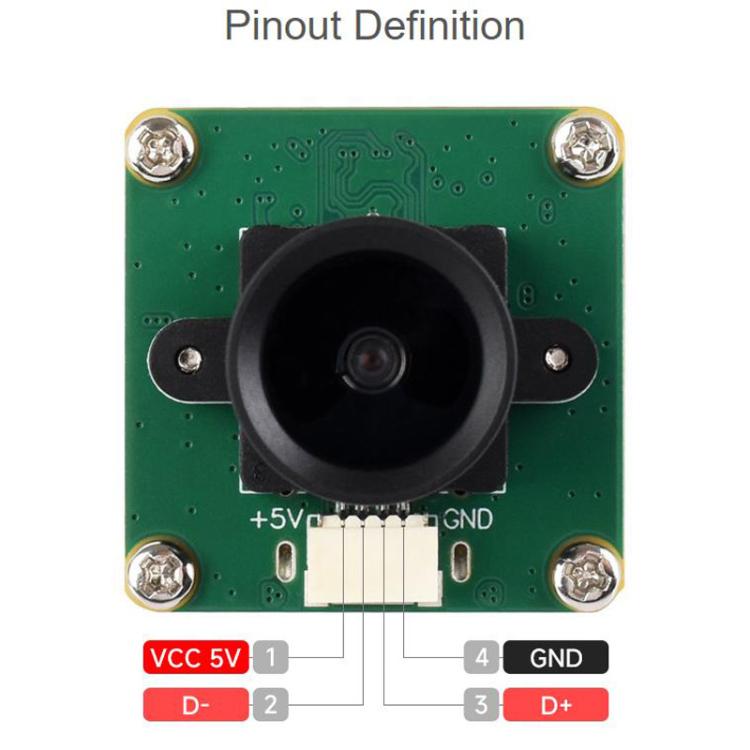

3. Interface type: USB2.0 Type-C / SH1.0 4-pin connector
4. Sensor size: 1/2.7 inches
5. Aperture (F): 2.7
6. Focal length (EFL): 2.88mm
7. Field of view (FOV): 96°
8. Distortion: less than -0.2%
9. Focusing method: fixed focusing
10. Supported formats: MJPG, YUY2
11. Static image resolution: 2592 x 1944
12. Video recording support: 30 FPS 2592 x 1944; 30 FPS 1920 x 1080; 30 FPS 1280 x 720
13. Operating voltage: 5V ± 5%
14. Operating temperature: 0°C - 50°C

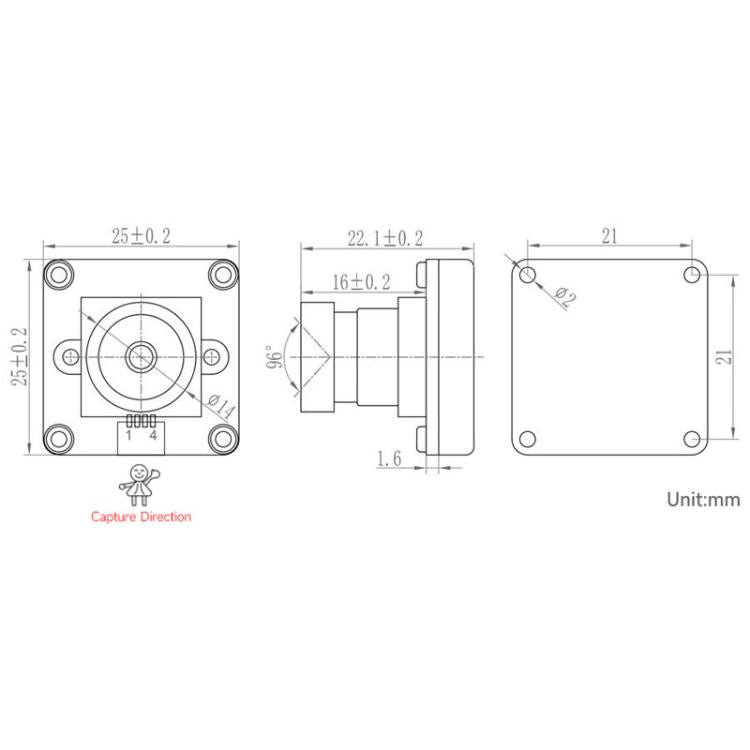

15. Module size: about 2.5 x 2.5 cm
16. Packaging list: OS05A10 5MP USB Camera (A) x 1; 4PIN dual-head cable x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
5cm * 5cm * 4cm / 1.97inch * 1.97inch * 1.57inch
|
| Carton Weight |
16.00kgs / 35.27lb
|
| Carton Size |
47cm * 38cm * 32cm / 18.5inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 466 cartons * 485 pcs = 226010 pcs
40HQ: 1083 cartons * 485 pcs = 525255 pcs
|
|
