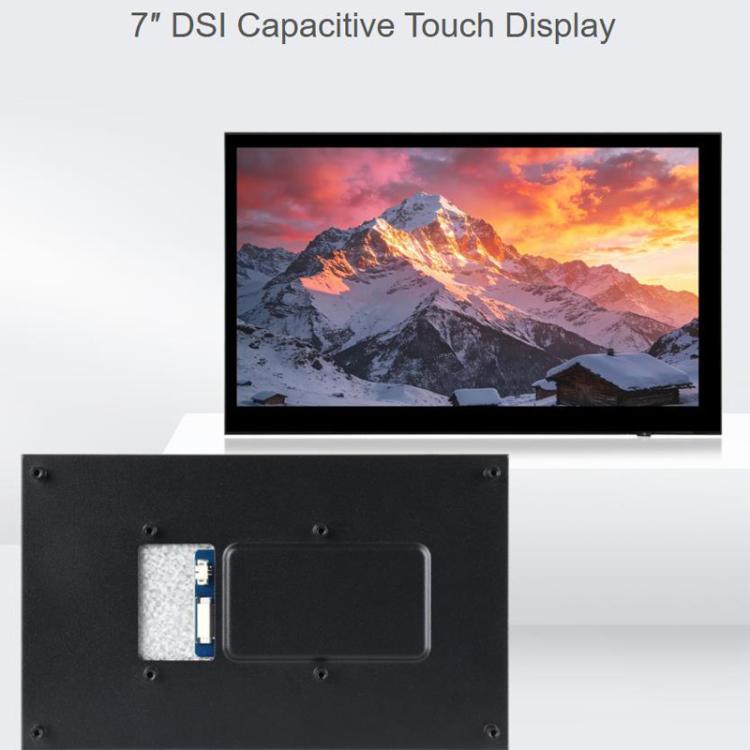

1. Capacitive five-point touch, capable of supporting five-point touch. The actual number of touch points is related to the software system

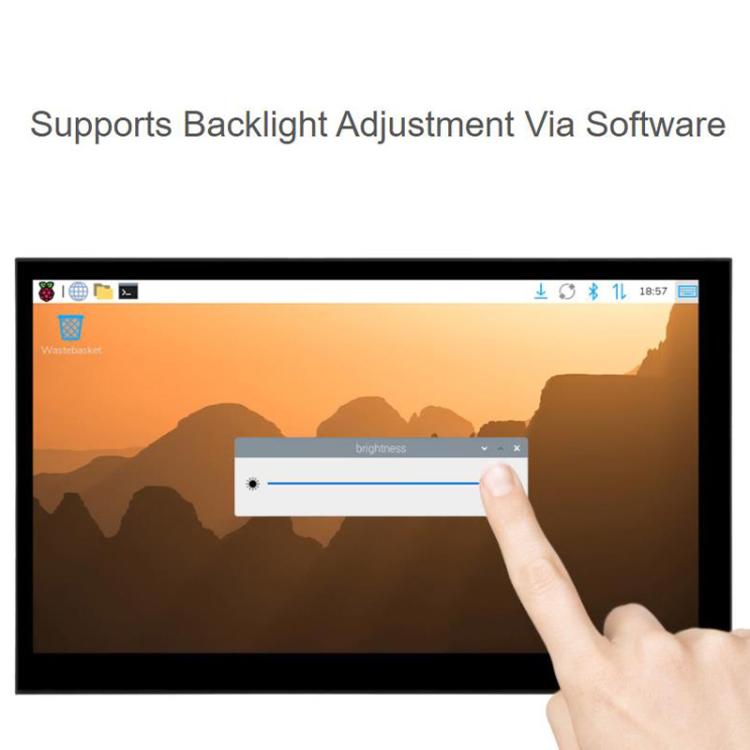

2. Backlight brightness can be adjusted through the software, and the operation is simple
3. IPS display panel, with excellent display performance, with a viewing angle of 170°
4. Resolution: 1024 x 600

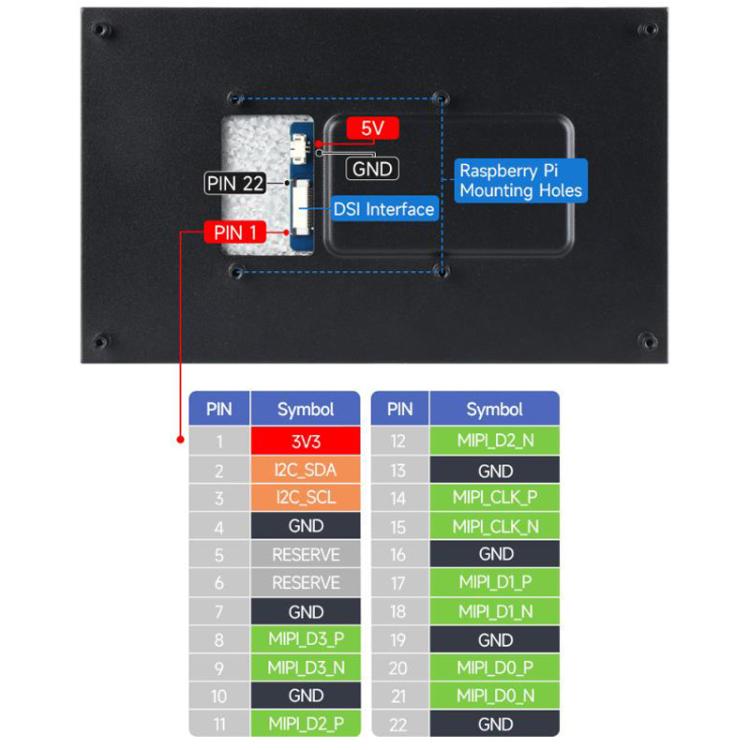

5. Display interface: DSI
6. Display panel: IPS
7. Viewing angle: 170°
8. Touch type: capacitive touch

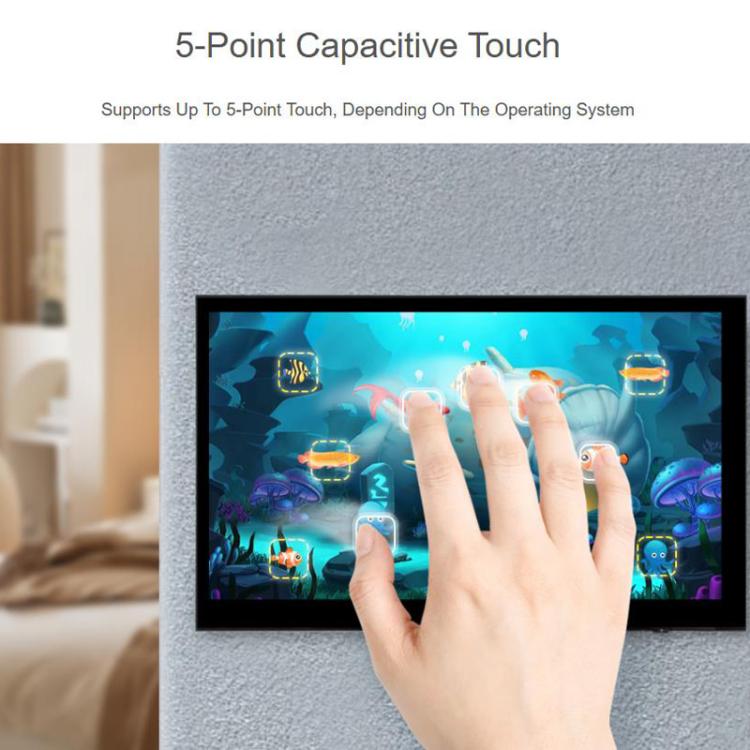

9. Touch points: 5-point touch
10. Touch interface: I2C
11. Brightness: 400cd/square meter

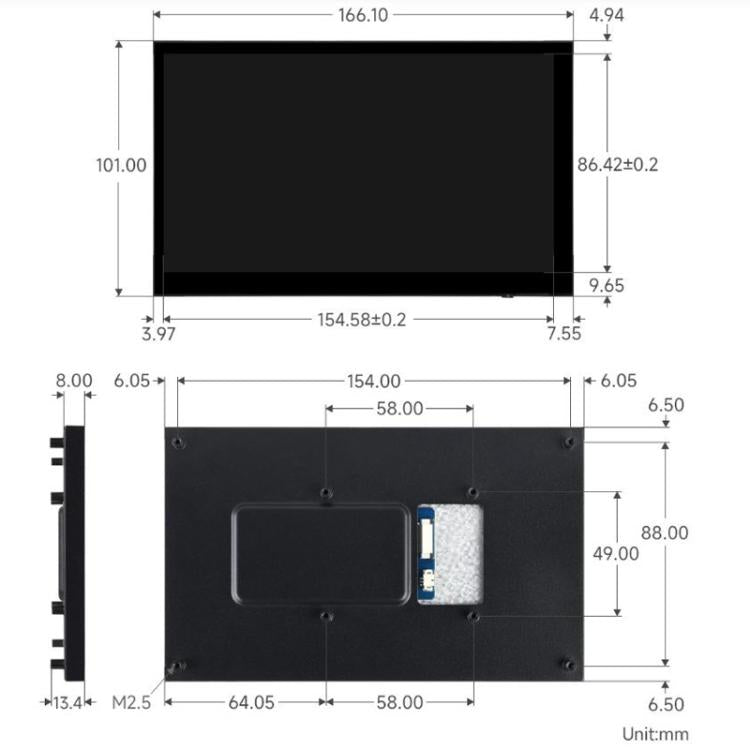

12. Size: 7 inch
Package contents:
- 7-DSI-TOUCH-C touchscreen x 1
- MIPI-DSI-Cable-12 cm x 1
- MX1.25 2-pin to 2.54 mm 3-pin adapter cable x 1
- 22-pin FFC cable, 200mm (reverse orientation) x 2
- MX1.25 2-pin to MX1.25 4-pin adapter, about 150mm x 1
- Pack of copper pillars x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.30kgs / 0.67lb
|
| One Package Size |
20cm * 14cm * 4cm / 7.87inch * 5.51inch * 1.57inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
42cm * 38cm * 30cm / 16.54inch * 14.96inch * 11.81inch
|
| Loading Container |
20GP: 556 cartons * 36 pcs = 20016 pcs
40HQ: 1292 cartons * 36 pcs = 46512 pcs
|
|
