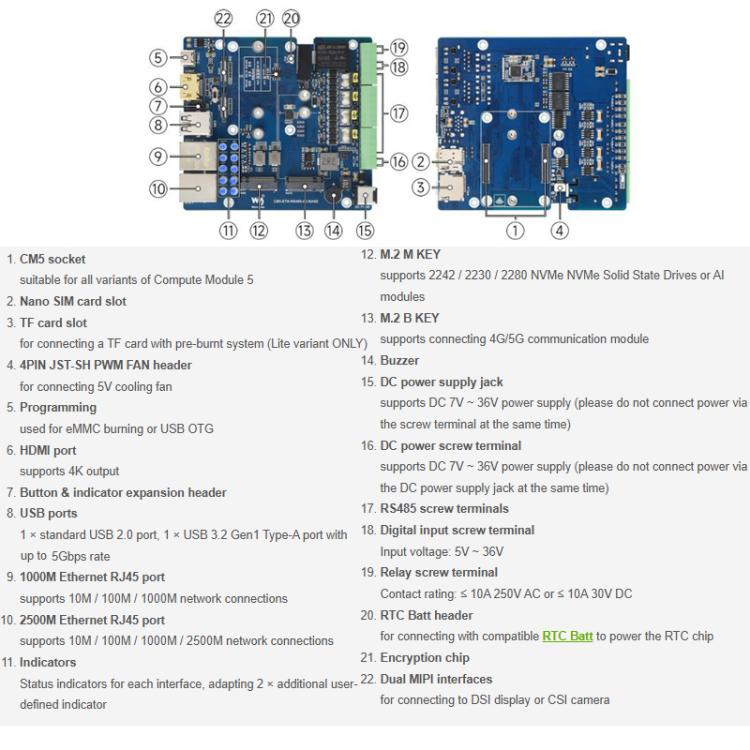

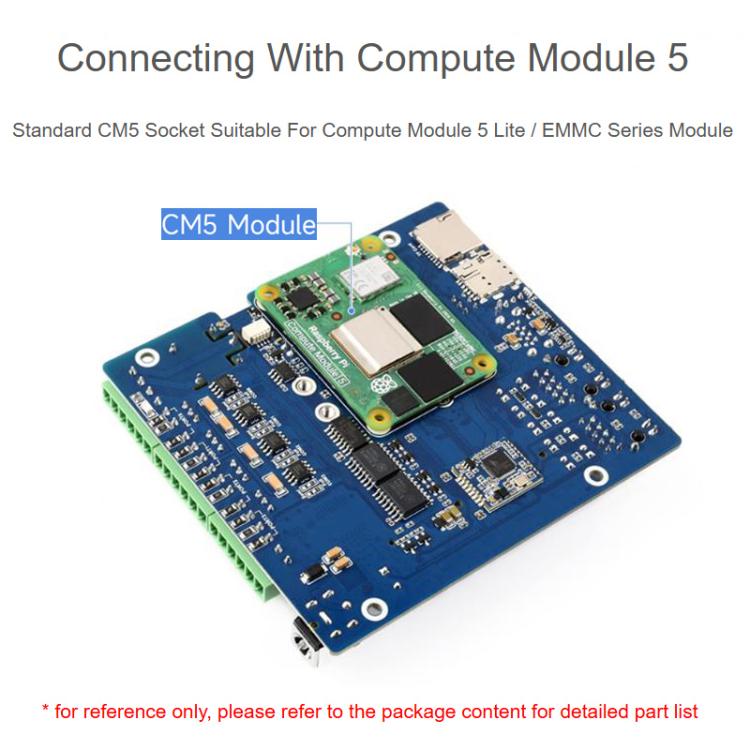

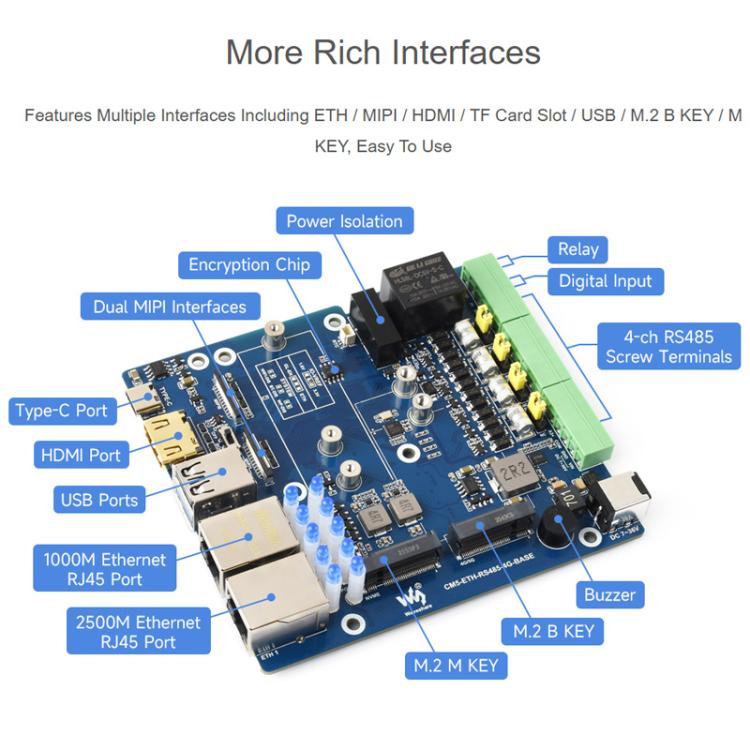

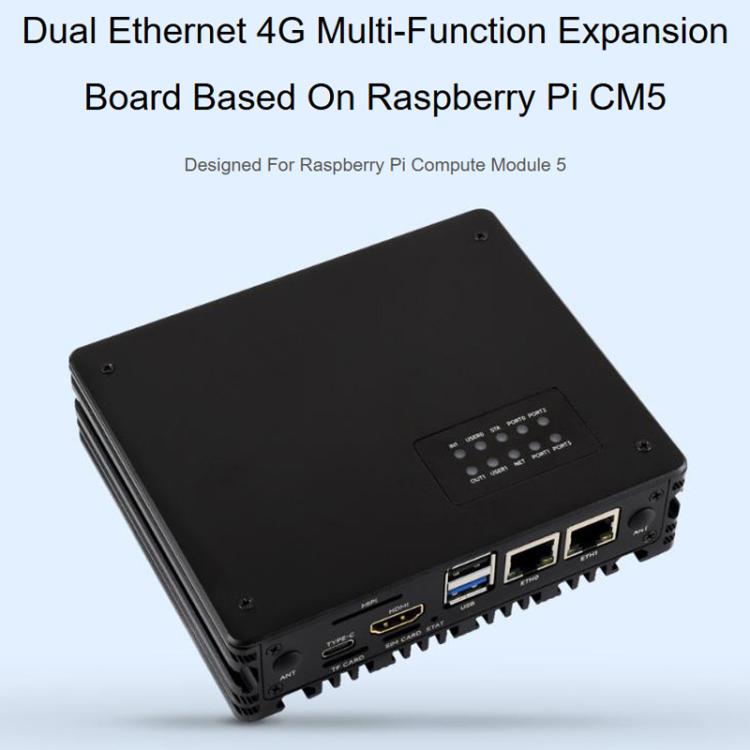

1. CM5 card slot: compatible with all versions of Compute Module 5

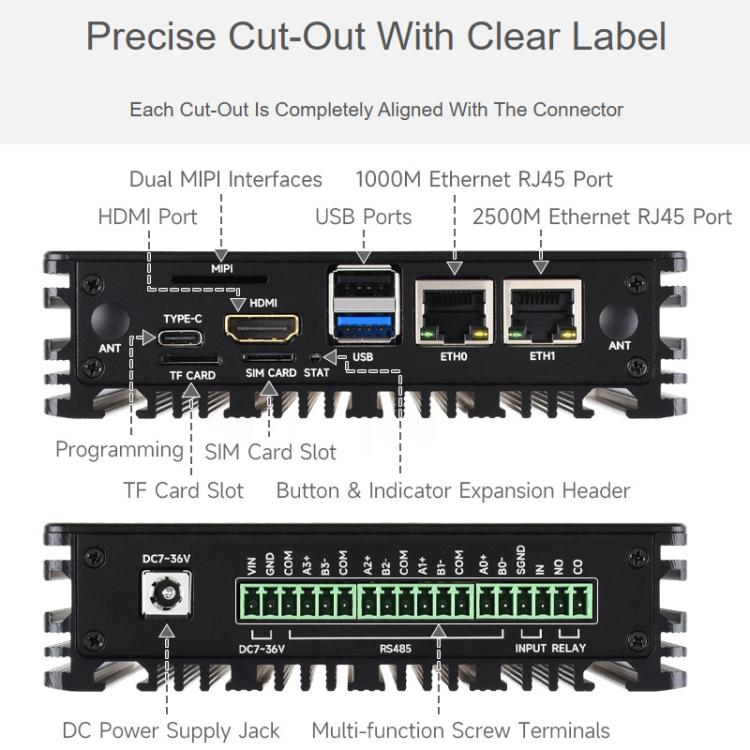

2. Networking: 1000M Ethernet RJ45 port x 1; 2500M Ethernet RJ45 port x 1
3. Video: HDMI port x 1, supporting 4K output
4. USB: USB 2.0 port (Type-C) x 1; USB 2.0 port (Type-A) x 1; USB 3.2 Gen1 port (Type-A) x 1

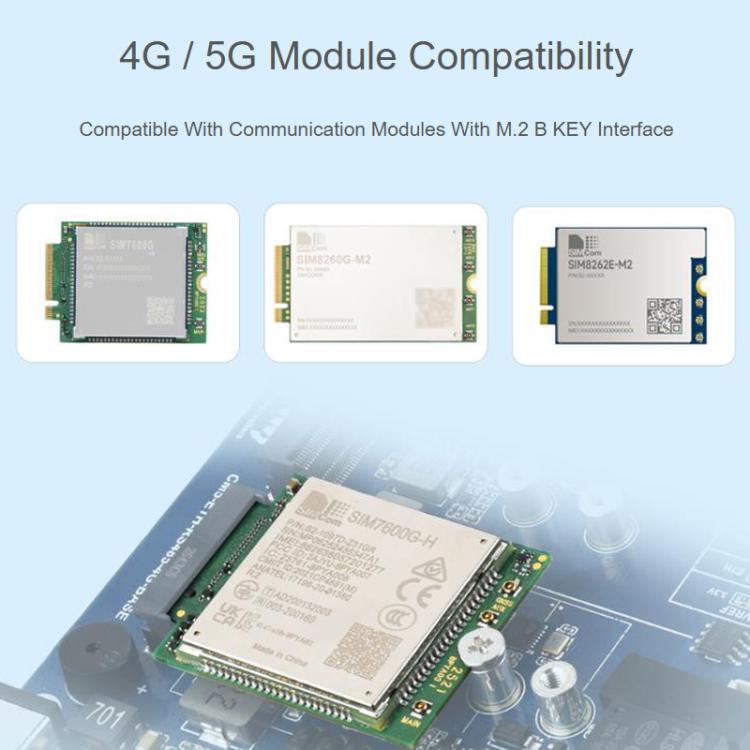

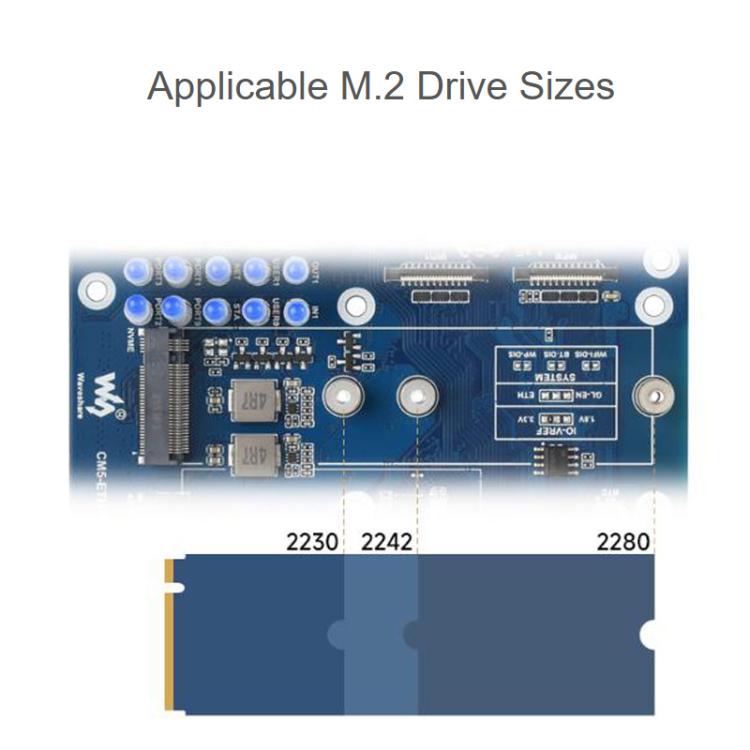

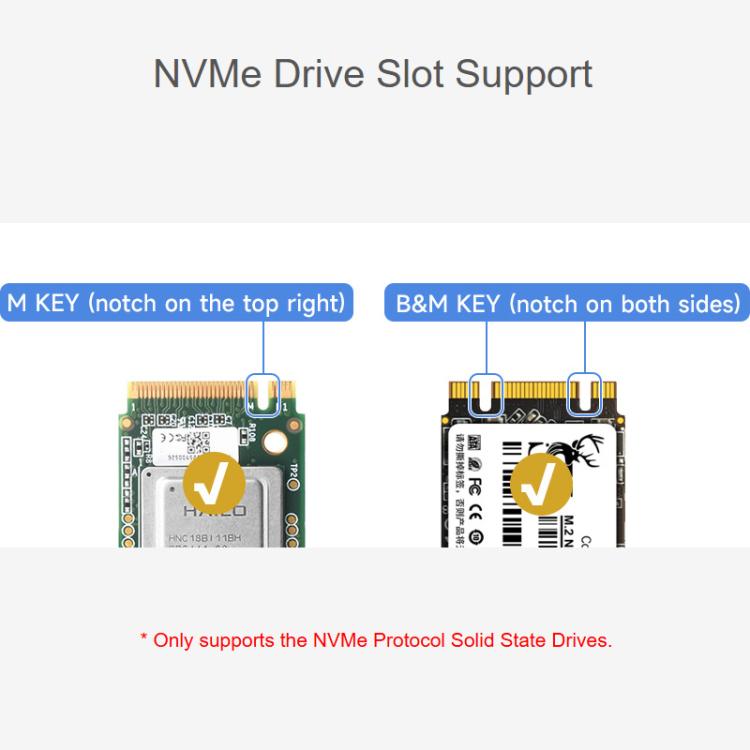

5. M.2: M.2 M KEY (PCIe Gen2/3 x 1, supporting 2230 / 2242 / 2280 NVMe or AI modules); M.2 B KEY, supporting 4G / 5G communication modules
6. Storage: onboard Micro SD card slot (for CM5 versions without eMMC)
7. Serial interface: RS485 x 4
8. Digital input: digital input x 1 (input voltage: 5V - 36V)
9. Relay: allowable load: less than or equal to 10A 250V AC or less than or equal to 10A 30V DC
10. Fan interface: 5V, 4-pin JST-SH PWM fan connector
11. Beeper: single-channel controllable
12. Others: onboard encryption chip
13. Power input: 7V - 36V wide voltage (terminal block + round hole) or 5V 5A (Type-C)

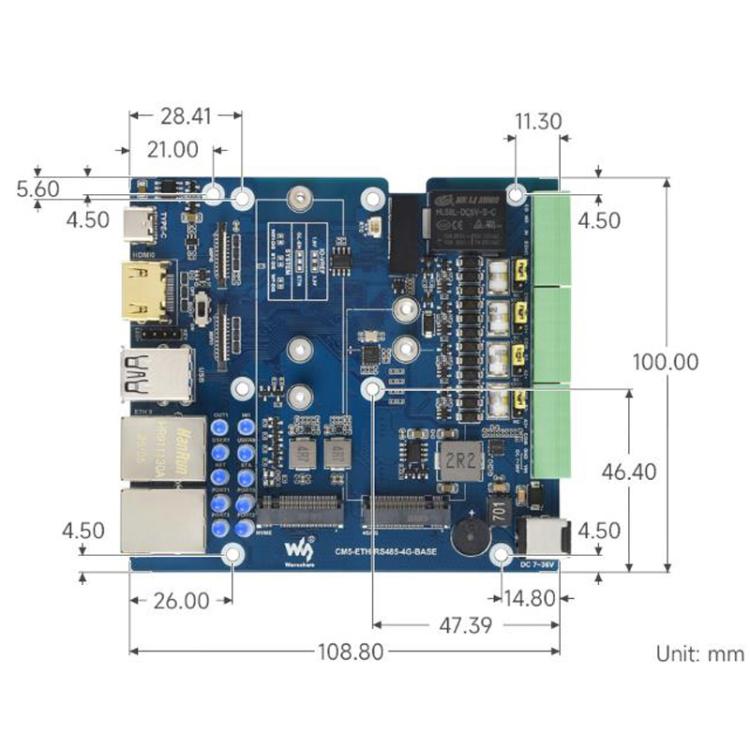

14. Size: about 13.25 x 11.22 x 3.45 cm

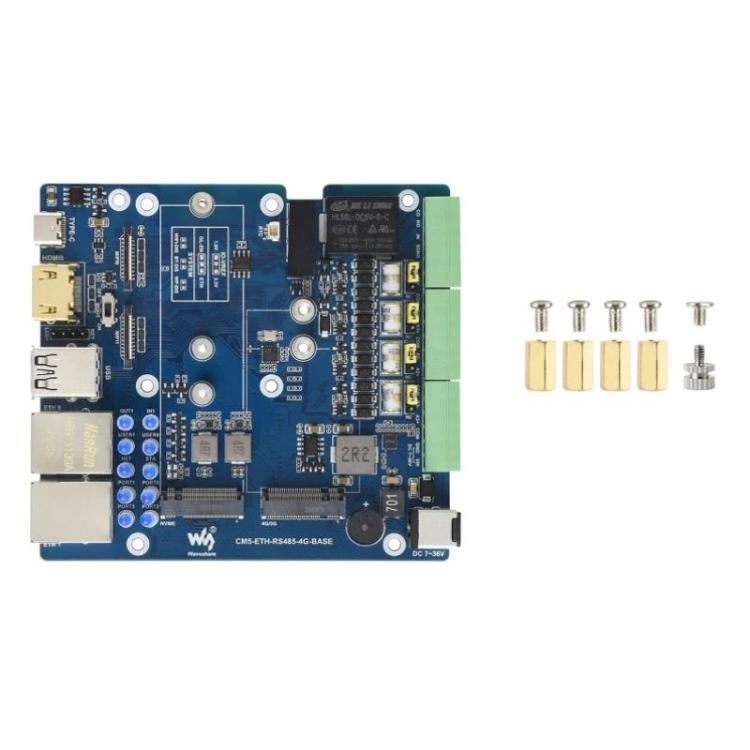

Base plate packing list:
- CM5-ETH-RS485-4G-BASE x 1
- Screw cap x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.12kgs / 0.26lb
|
| One Package Size |
16cm * 14cm * 6cm / 6.3inch * 5.51inch * 2.36inch
|
| Carton Weight |
13.00kgs / 28.66lb
|
| Carton Size |
50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch
|
| Loading Container |
20GP: 467 cartons * 96 pcs = 44832 pcs
40HQ: 1086 cartons * 96 pcs = 104256 pcs
|
|
