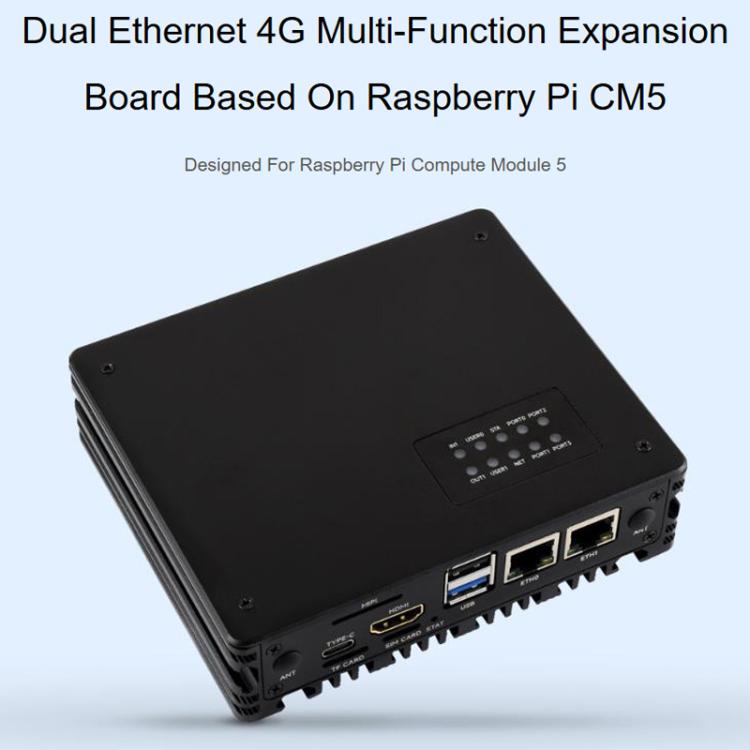

Waveshare 34252 CM5 Gigabit/2.5G Dual Ethernet Multi-Function Expansion Board Supports RS485 Industrial Communication, 4G / 5G Module And 4K Display Output EU Plug

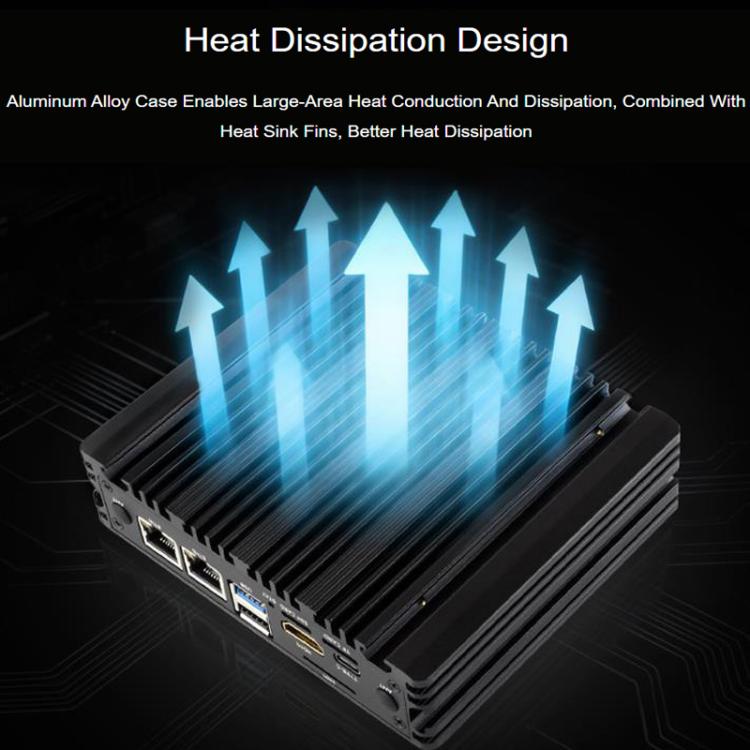

1. The entire casing is made of aluminum alloy, which can conduct and dissipate heat over a large area. Coupled with heat dissipation fins, the heat dissipation is more efficient

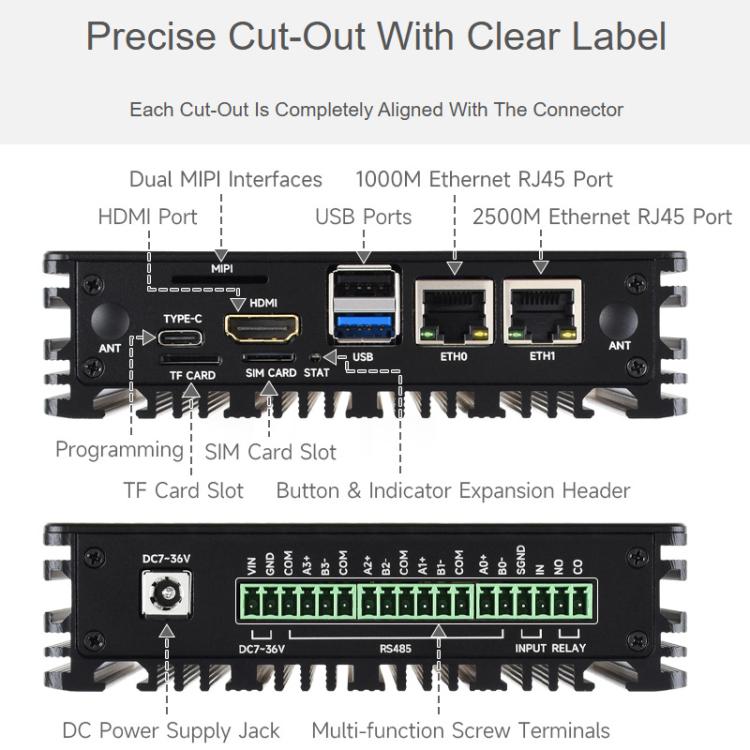

2. The detailed hole layout ensures that each interface can fit tightly to the motherboard, and the interface areas are marked with clear silk-screening for easy viewing

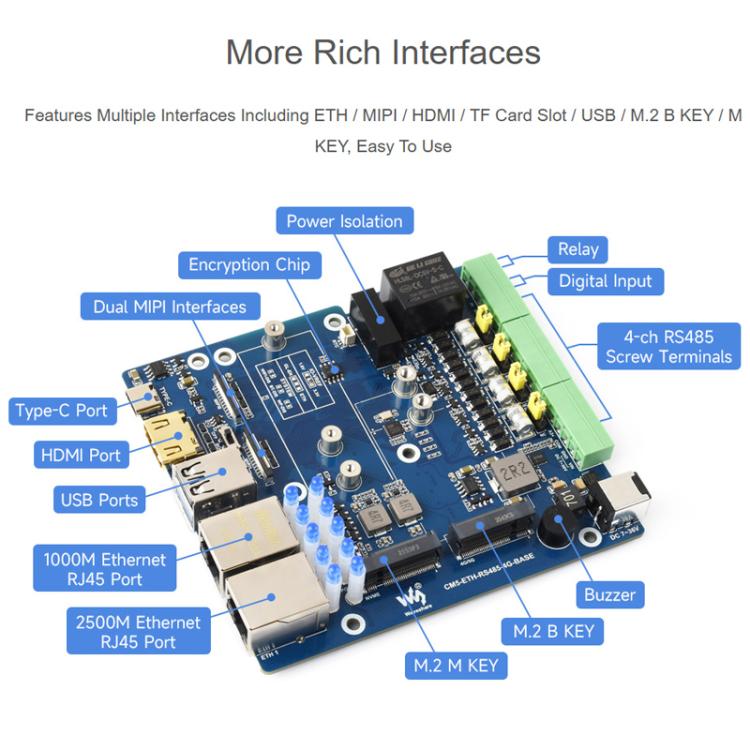

3. There are more abundant interfaces, equipped with ETH / MIPI / HDMI / Micro SD / USB / M.2 B KEY / M KEY and other various interfaces. They are more convenient to use

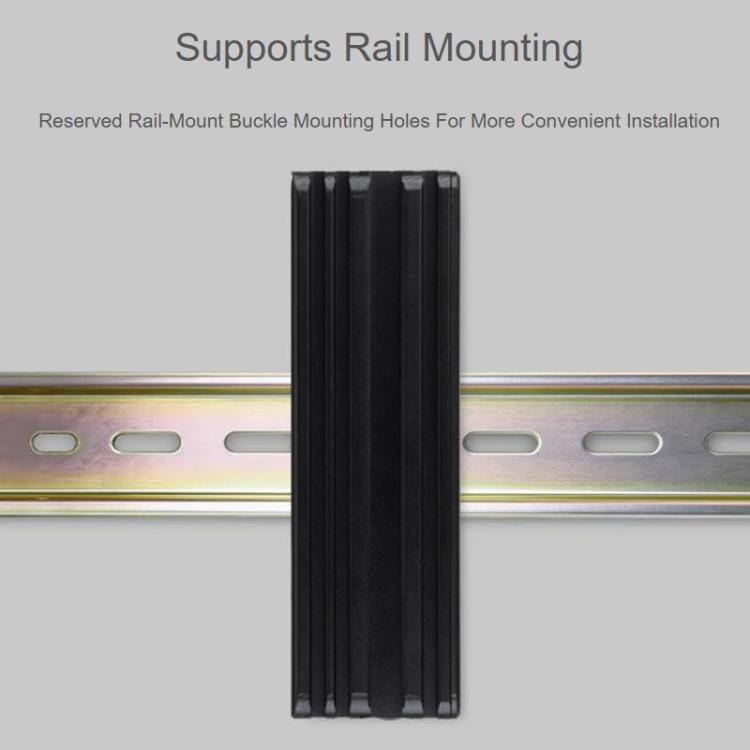

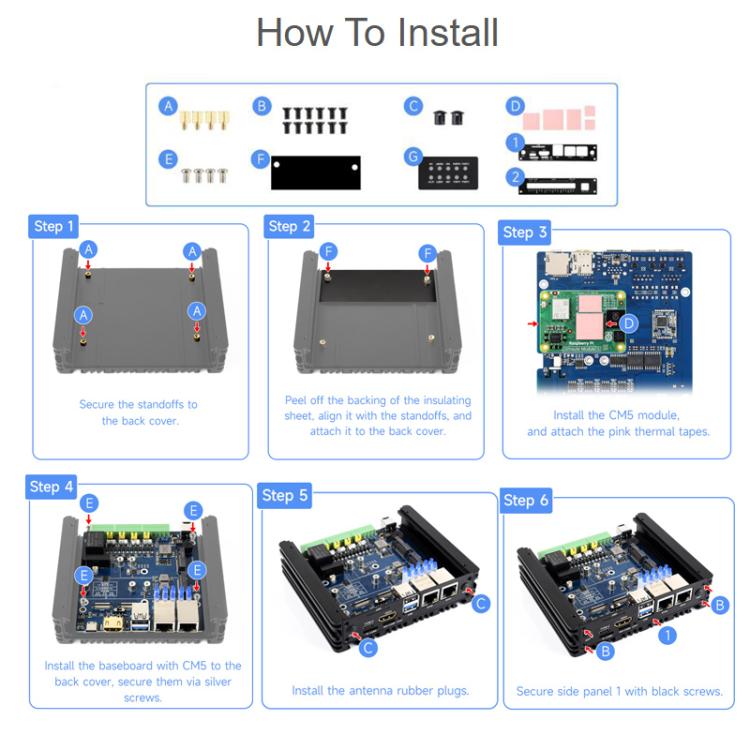

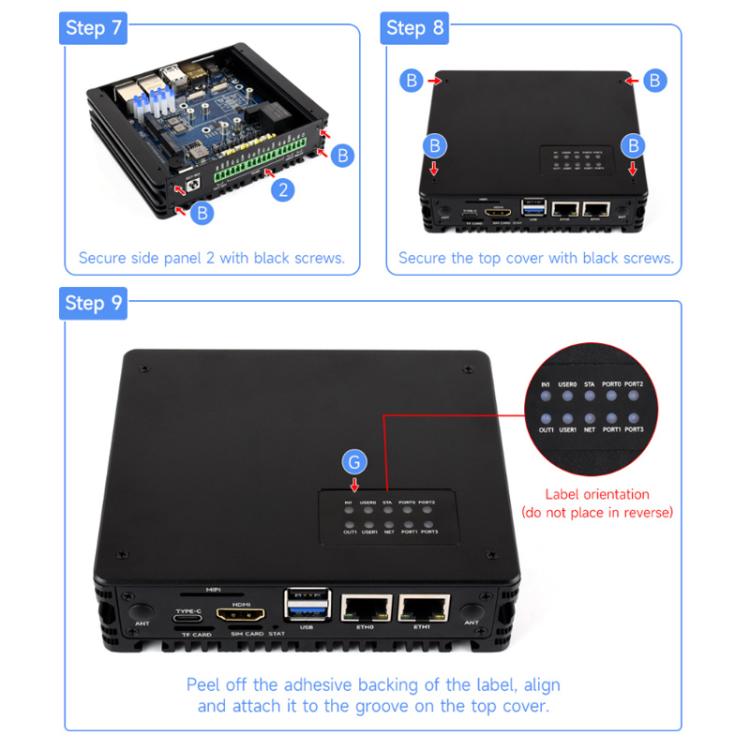

4. It supports rail brackets. The back of the host is reserved for installation screw holes, allowing it to be fixed on the rail

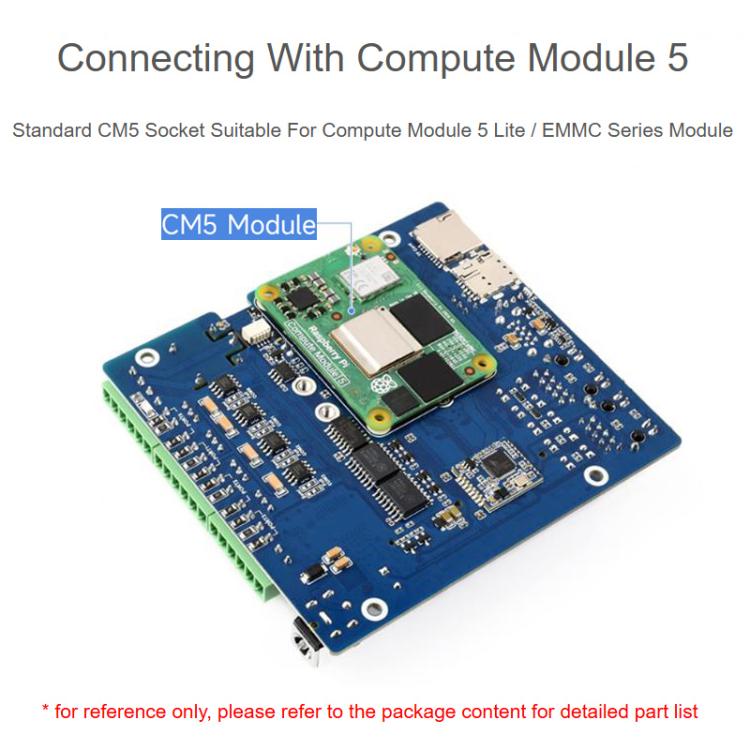

5. It is equipped with a standard CM5 connector, supporting the connection of Compute Module 5 Lite / eMMC series core boards

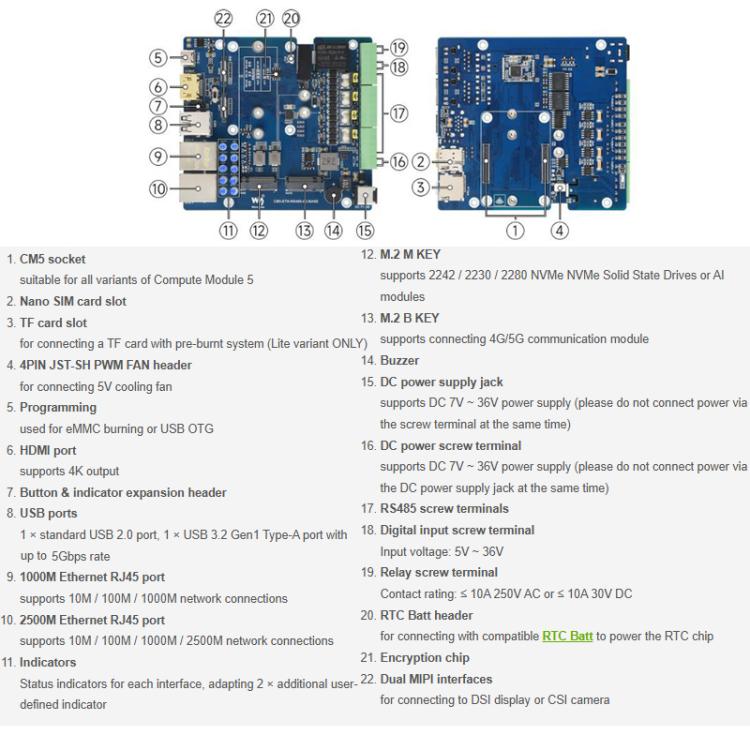

Parameters
1. CM5 slot: suitable for all versions of Compute Module 5
2. Networking: 1000M Ethernet RJ45 interface x 1; 2500M Ethernet RJ45 interface x 1
3. Video: HDMI interface x 1, supporting 4K output
4. USB: USB 2.0 interface (Type-C) x 1; USB 2.0 interface (Type-A) x 1; USB 3.2 Gen1 interface (Type-A) x 1

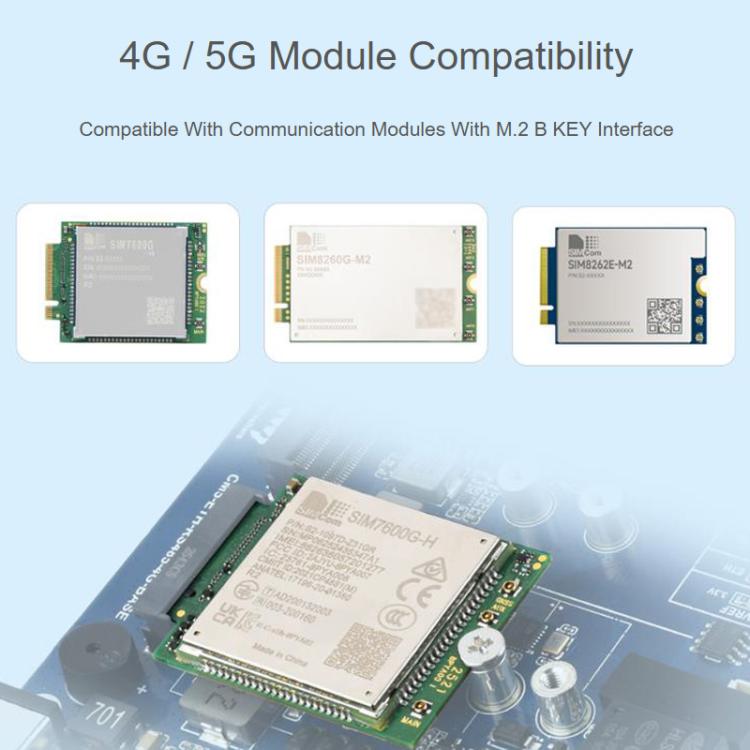

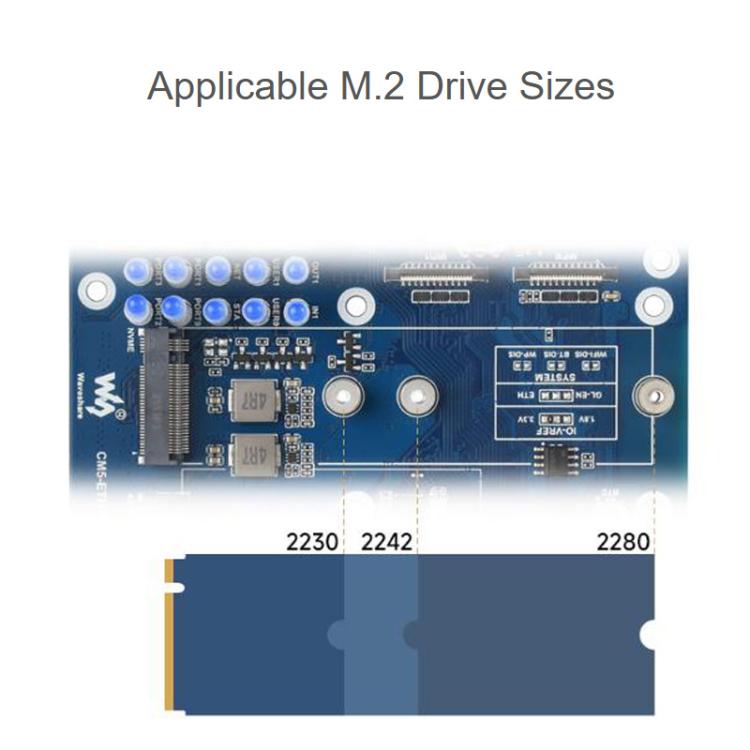

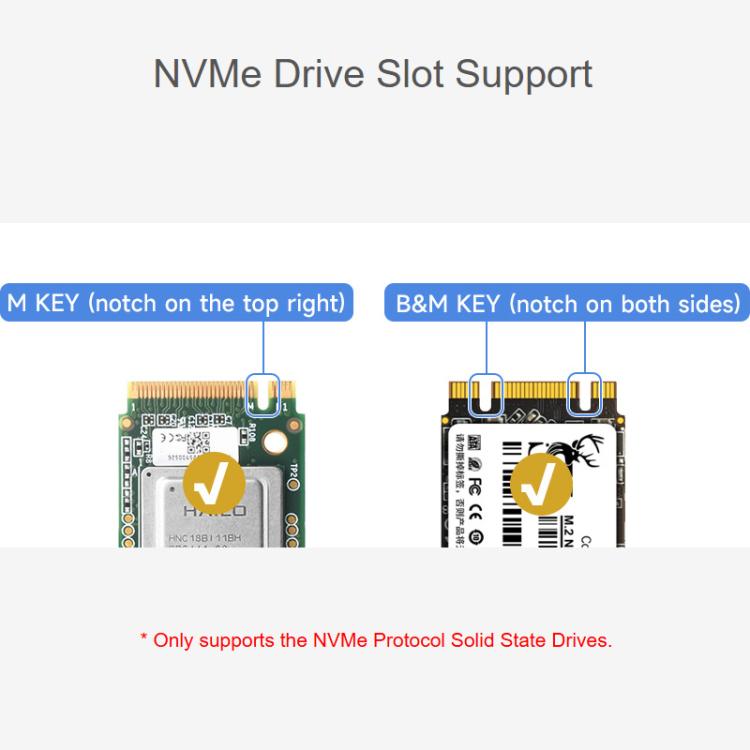

5. M.2: M.2 M KEY (PCIe Gen2/3 x 1, supporting 2230/2242/2280 NVMe or AI module); M.2 B KEY, supporting 4G/5G communication module
6. Storage: built-in Micro SD card slot (applicable to CM5 versions without eMMC)
7. Serial interface: RS485 x 4
8. Digital input: digital input x 1 (input voltage: 5V - 36V)
9. Relay: allows connection of loads: less than or equal to 10A 250V AC or less than or equal to 10A 30V DC
10. Fan interface: 5V, 4PIN JST-SH PWM fan connector
11. Beeper: single-channel controllable
12. Others: built-in encryption chip
13. Power input: 7V - 36V wide voltage (terminal + round hole) or 5V 5A (Type-C)

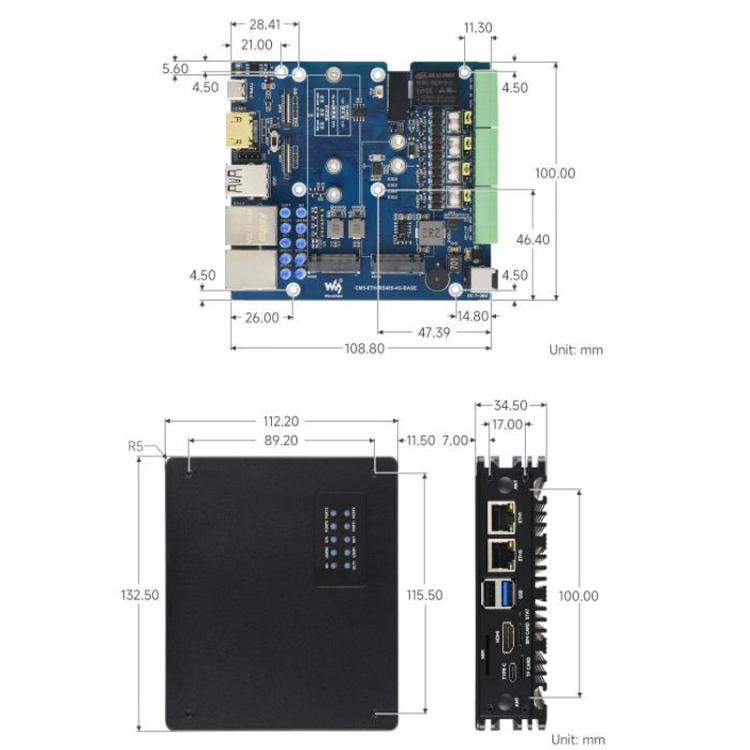

14. Size: about 13.25 x 11.22 x 3.45 cm

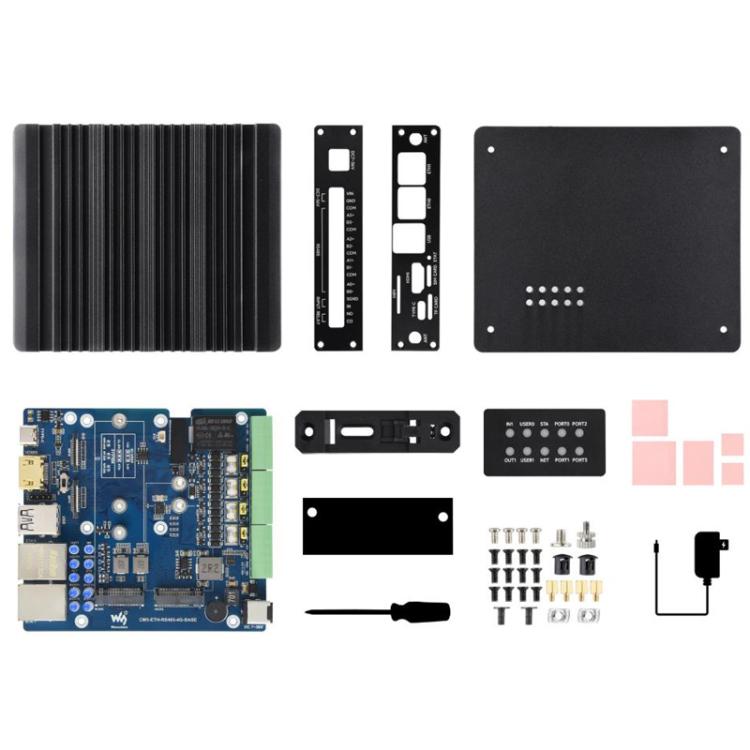

Packaging list:
- Metal casing (top cover + bottom shell) and two baffles
- CM5-ETH-RS485-4G-BASE x 1
- Guide clip (20 x 76mm) x 1
- Label x 1
- Pink high thermal conductivity silicone sheet x 5
- PC insulating sheet (104 x 40 x 0.2mm) x 1
- Cross-head screwdriver x 1
- Screw pack x 1
- 12V 4A power supply x 1
