1. Resolution: 800 × 480
2. Display interface: DSI
3. Display panel: IPS
4. Viewing angle: 160 degrees
5. Touch screen models:
- Touch type: capacitive touch
- Touch points: 5 points touch
- Touch interface: I2C
- Touch panel: tempered glass panel
9. Application scenarios: smart home, automotive equipment, consumer electronics, industrial equipment, etc.
10. Screen size: about 4.34 inches

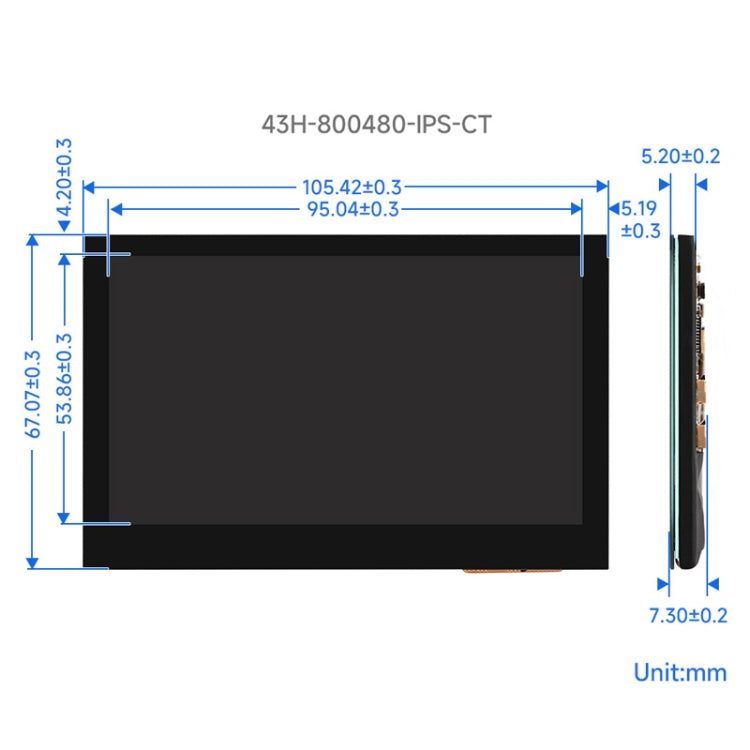

11. Size ：approx. 10.5 x 6.7 x 5.2cm
Features:
1. IPS display panel with good display performance and wide viewing angle of up to 160 degrees

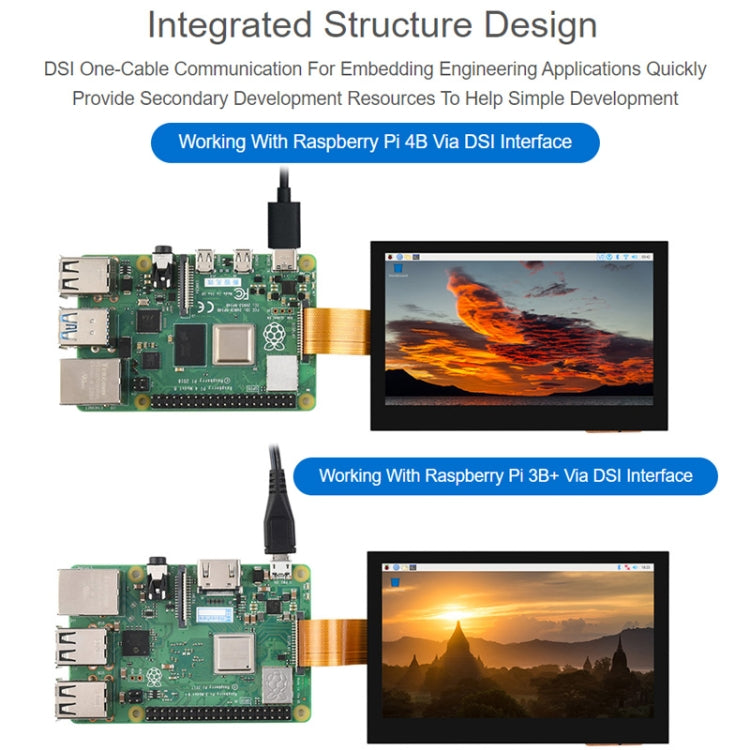

2. Integrated structure design, DSI one-line, easy to integrate integrated design, provide secondary development materials, help simple development

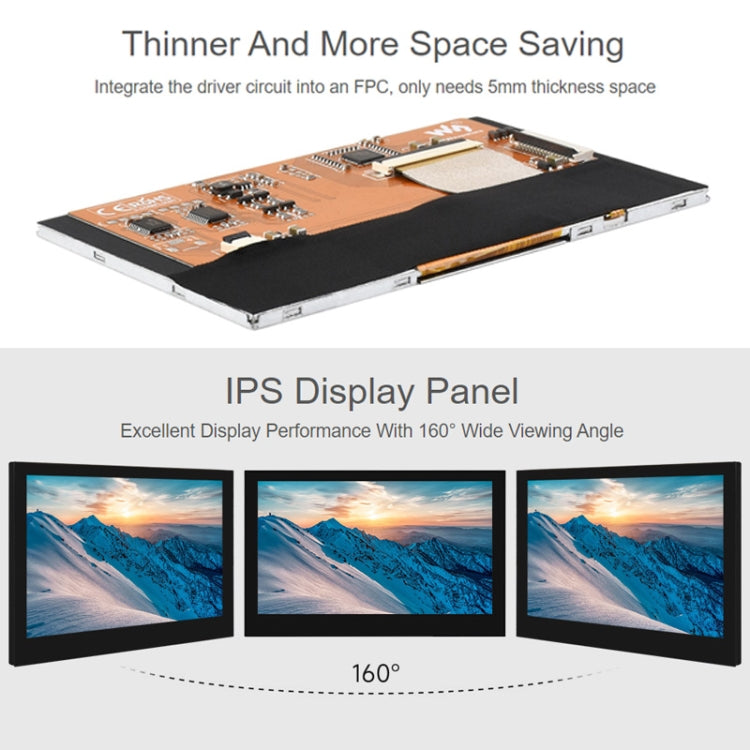

3. Thinner and more space-saving, the driver circuit is integrated into the FPC, about 5mm thickness space can be

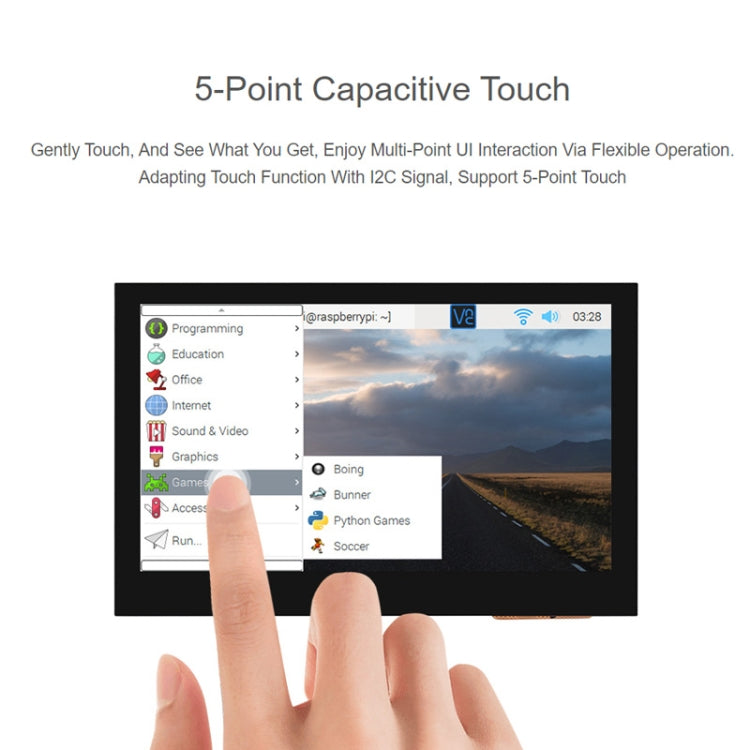

4. Touch models capacitive five-point touch, flexible operation, through the I2C signal, lead to touch function, support five-point touch

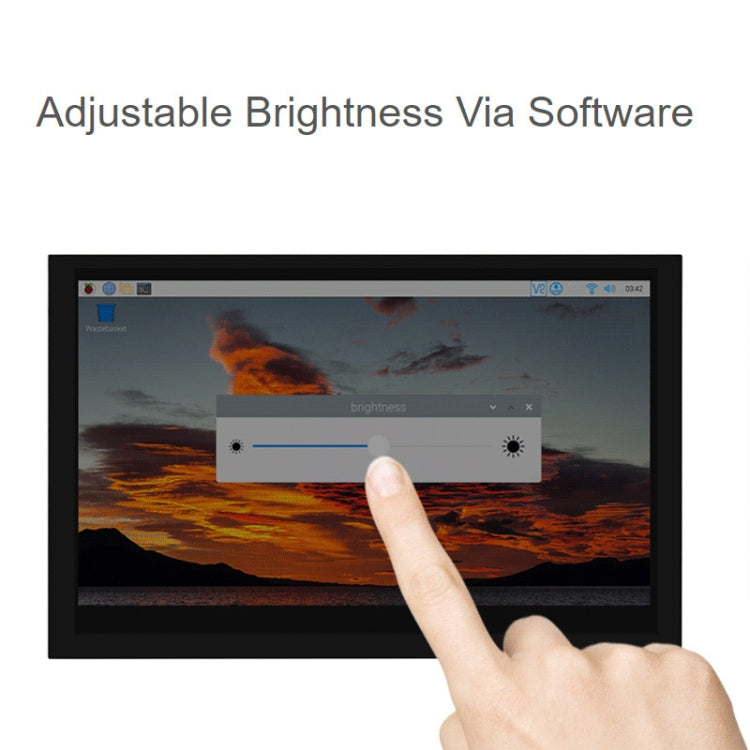

5. Touch model backlight brightness can be adjusted by software
6. Support Raspberry Pi OS, 5-point touch, driver-free
7. Support Ubuntu / Kali / WIN10 IoT, single-touch, driver-free
8. Support Retropie, driver-free

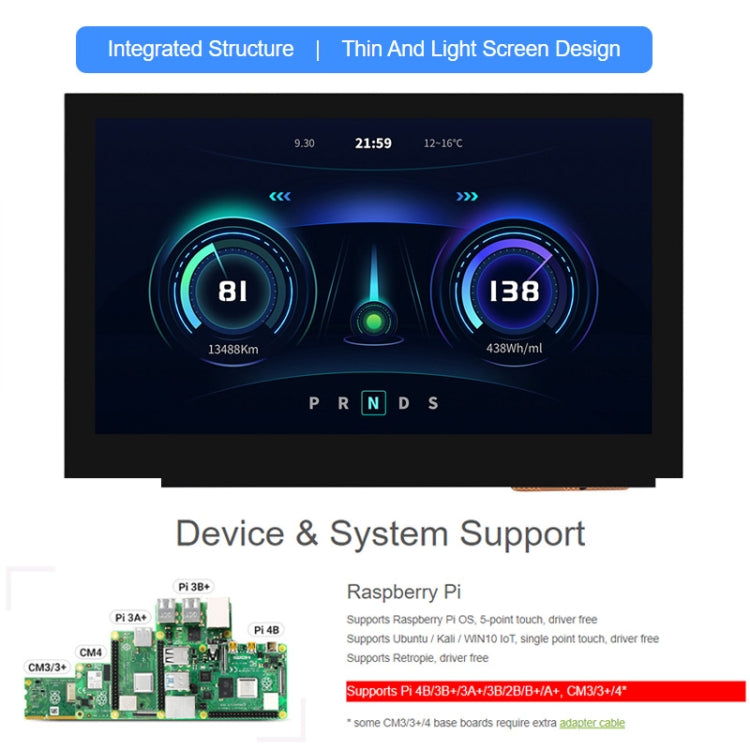

9. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, some CM3/3+/4 backplanes need to buy adapter cable separately
Specification:
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.89lb
|
| One Package Size |
12cm * 10cm * 3cm / 4.72inch * 3.94inch * 1.18inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 41cm * 12cm / 19.69inch * 16.14inch * 4.72inch
|
| Loading Container |
20GP: 1084 cartons * 74 pcs = 80216 pcs
40HQ: 2516 cartons * 74 pcs = 186184 pcs
|
|
