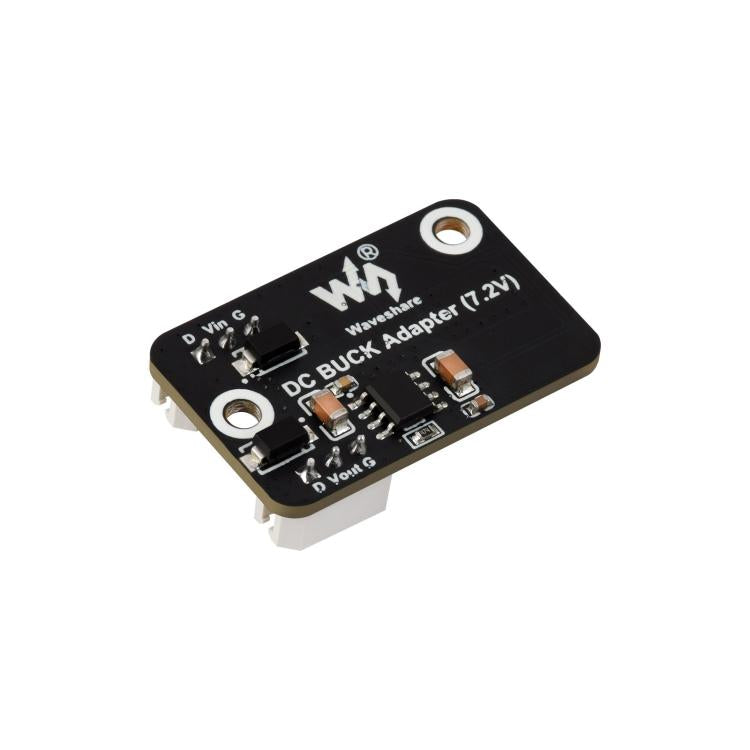

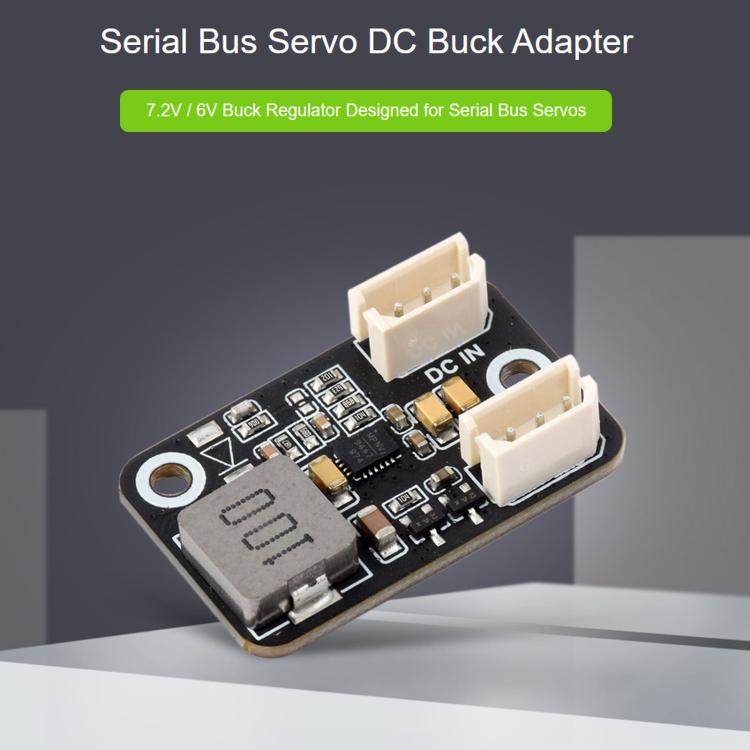

1. 7.2V step-down voltage regulator, suitable for servos such as SC15 Servo.

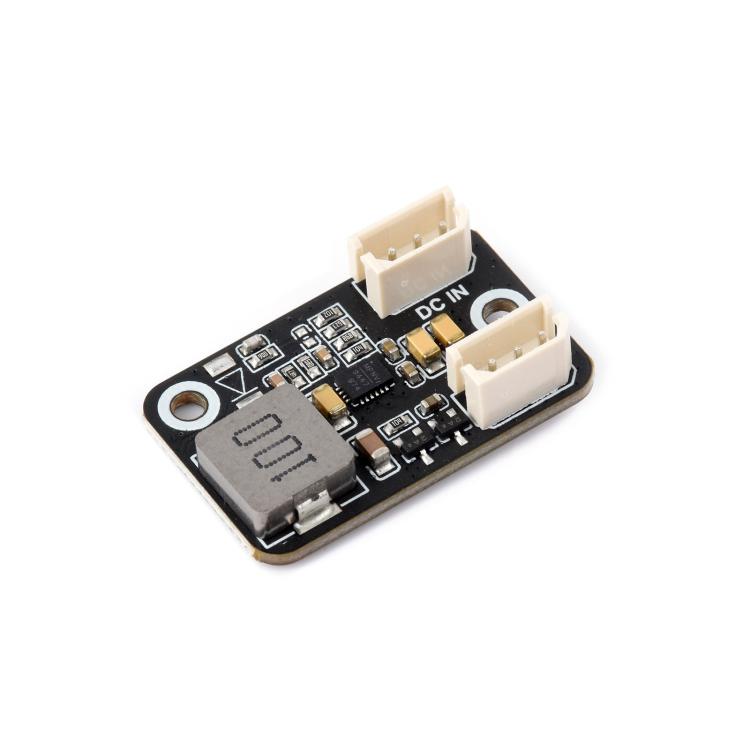

2. 6V step-down voltage regulator, suitable for servos such as SC09 Servo.
3. Mini size, saves space and easy to integrate into existing projects.
4. 9 - 36V wide voltage input, offering more flexibility in project power supply selection.

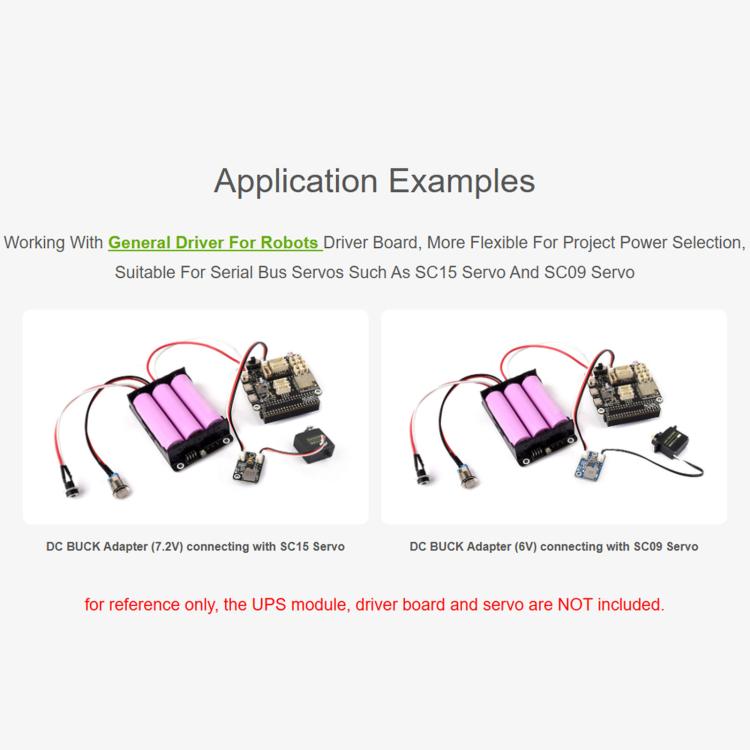

5. Easy to use by connecting directly in series with the servo circuit.
Specifications:
1. Input Voltage: DC 9 - 36V
2. Output Voltage: DC 7.2V / 6V

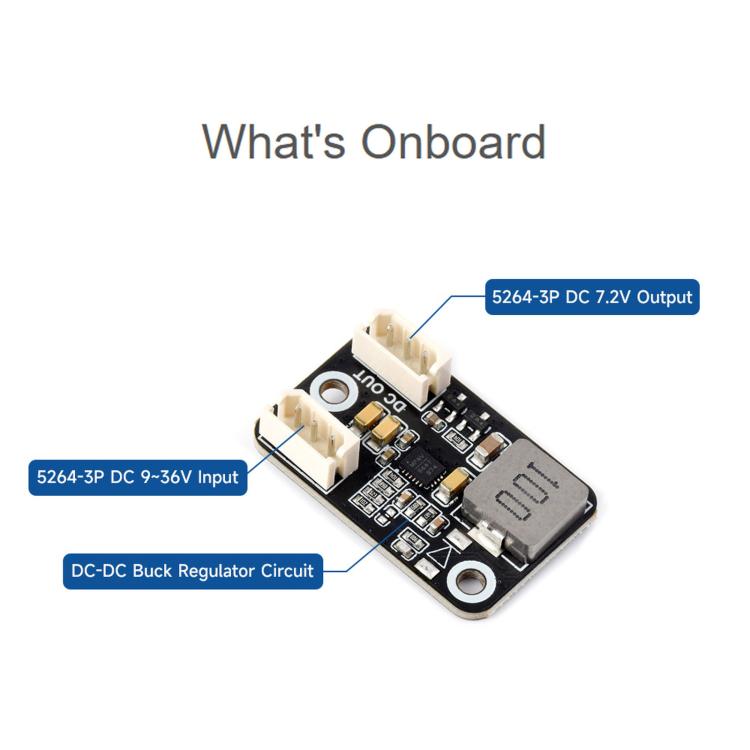

3. Interface Specification: SC/ST Series Servo 5264-3P Interface

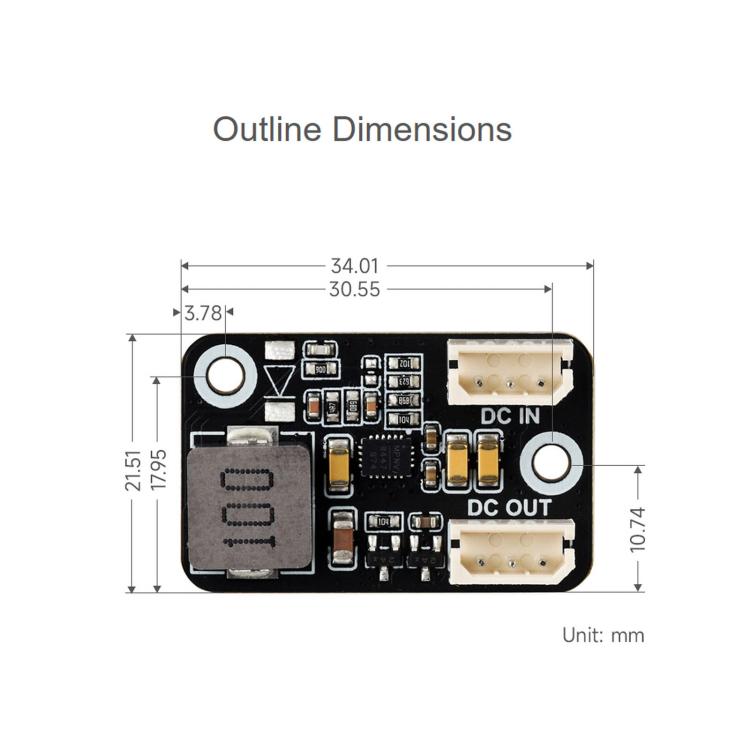

4. Product Dimensions: 21.50 x 34.00mm
5. Mounting Hole Diameter: 2.70mm
6. Peak Current: 3A
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.10lb
|
| One Package Size |
8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch
|
| Carton Weight |
7.50kgs / 16.53lb
|
| Carton Size |
34cm * 42cm * 32cm / 13.39inch * 16.54inch * 12.6inch
|
| Loading Container |
20GP: 583 cartons * 320 pcs = 186560 pcs
40HQ: 1354 cartons * 320 pcs = 433280 pcs
|
|
