Device & System SupportSuitable for Raspberry Pi:

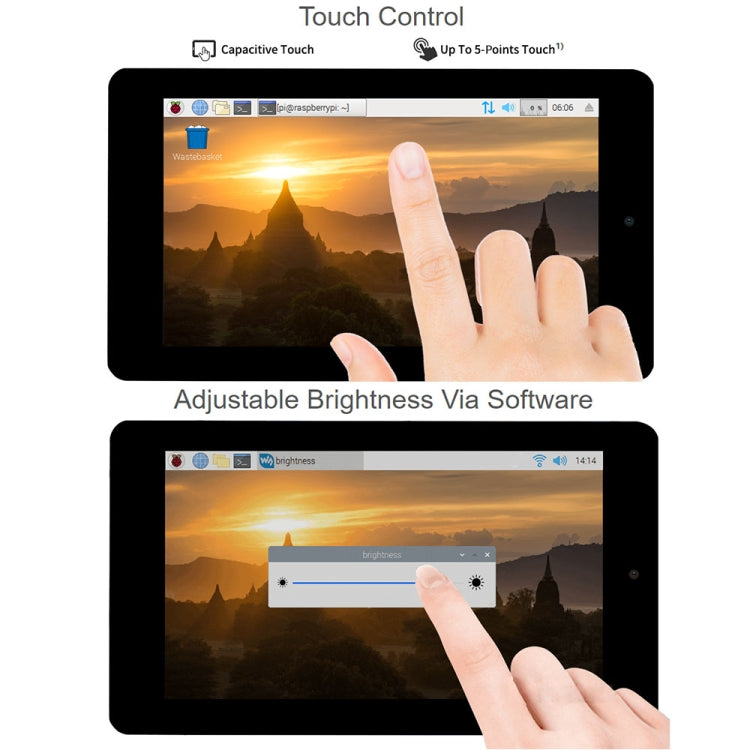

1. Support Raspberry Pi OS, 5-points touch, driver free
2. Support Ubuntu, single point touch, driver free

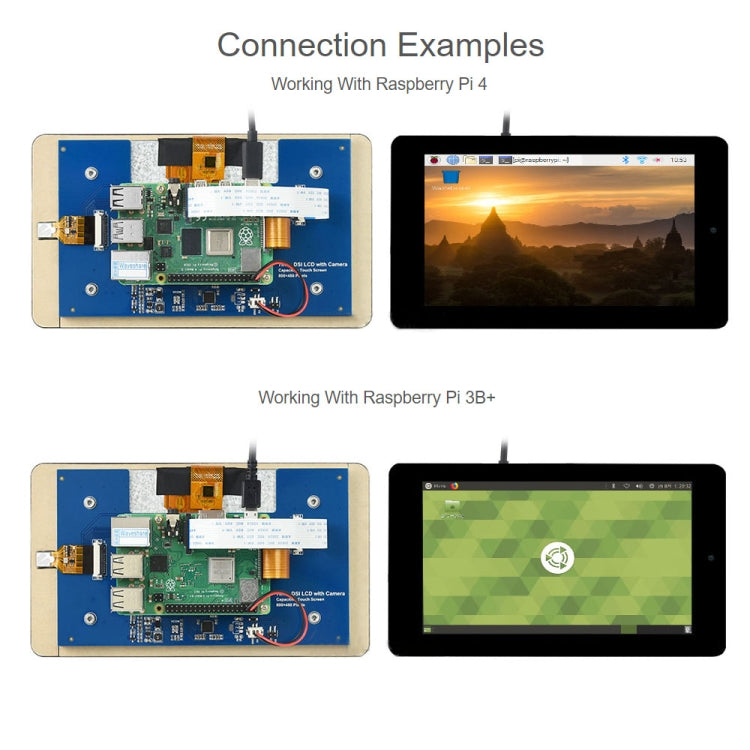

3. Support Pi 4B

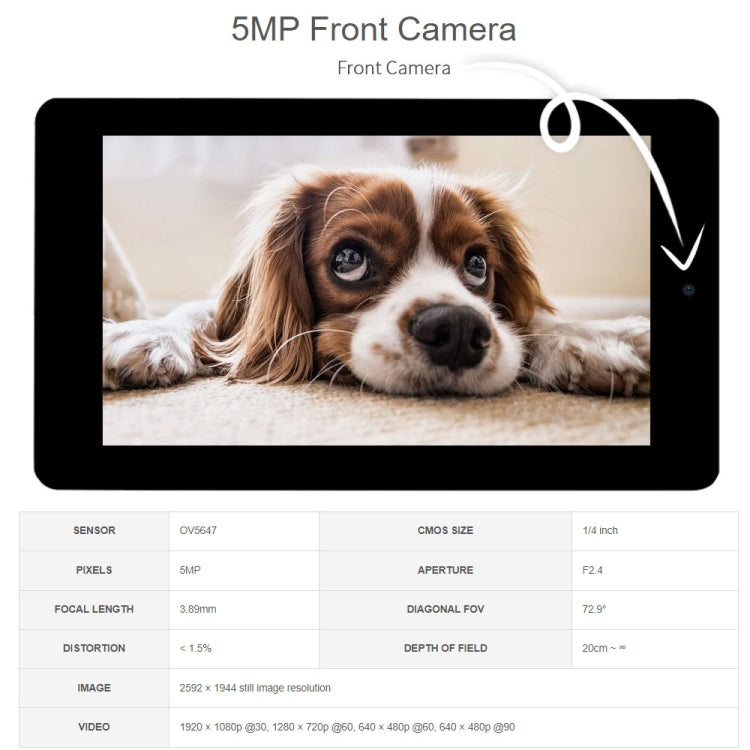

Specifications1. Sensor: OV5647
2. CMOS size: 1/4 inch
3. Pixels: 5MP
4. Aperture: F2.4
5. Focal length: 3.89mm
6. Diagonal FOV: 72.9 degrees
7. Distortion: Less than 1.5%
8. Depth of field: 20cm above
9. Image: 2592 x 1944 still image resolution
10. Video: 1920 x 1080p 30fps, 1280 x 720p 60fps, 640 x 480p 60fps, 640 x 480p 90fps

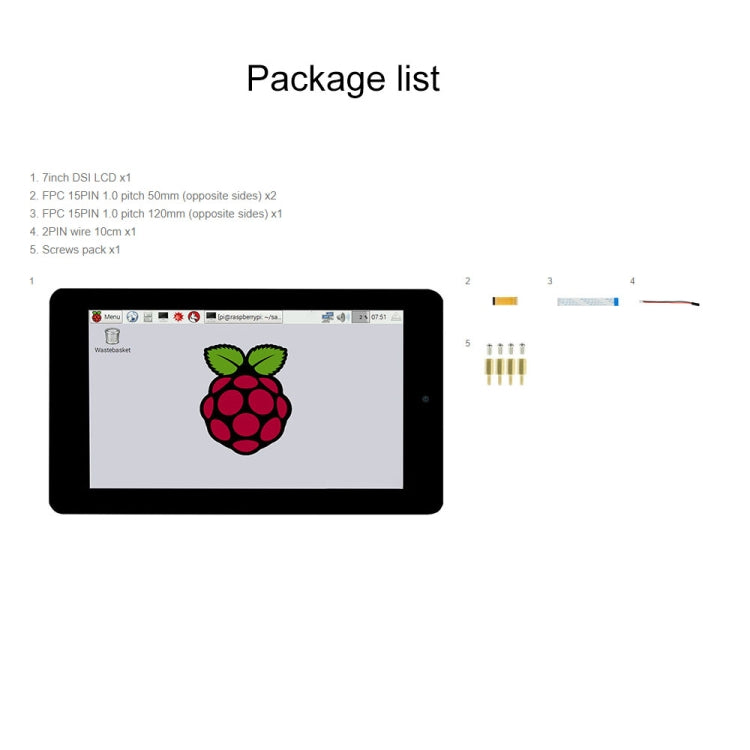

Package List1. 7 inch DSI LCD x 1
2. FPC 15 PIN 1.0 pitch 50mm (opposite sides) x 2
3. FPC 15 PIN 1.0 pitch 120mm (opposite sides) x 1
4. 2 PIN wire 10cm x 1
5. Screws pack x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.32kgs / 0.71lb
|
| One Package Size |
25cm * 16cm * 5cm / 9.84inch * 6.3inch * 1.97inch
|
| Carton Weight |
10.00kgs / 22.05lb
|
| Carton Size |
52cm * 32cm * 42cm / 20.47inch * 12.6inch * 16.54inch
|
| Loading Container |
20GP: 381 cartons * 30 pcs = 11430 pcs
40HQ: 885 cartons * 30 pcs = 26550 pcs
|
|
