1. Screen size: 9 inches
2. Resolution: 720 x 1280

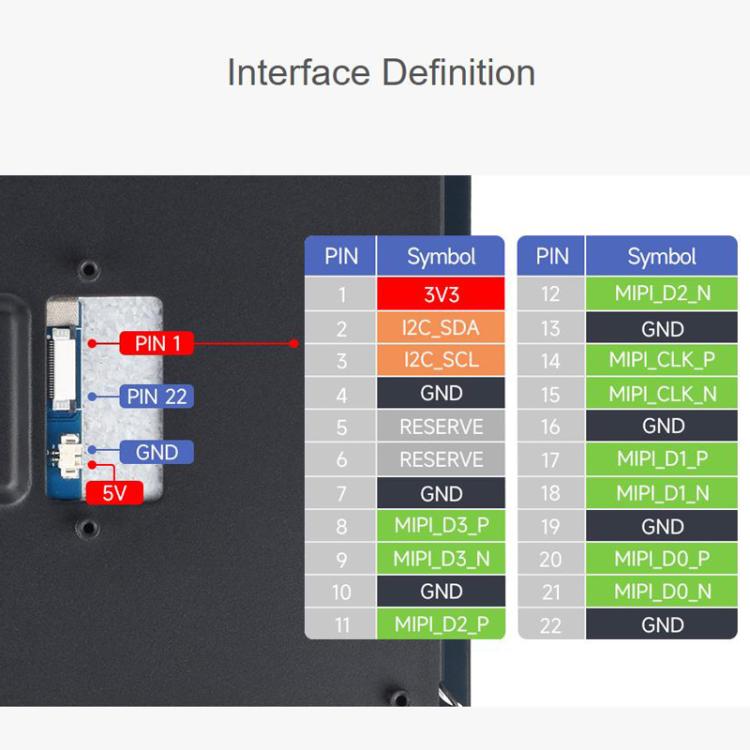

3. Display interface: DSI
4. Display panel: IPS
5. Viewing angle: 160 degrees
6. Touch type: capacitive touch
7. Number of touch points: 10-point touch
8. Touch panel: tempered glass panel
9. Touch interface: I2C
10. Brightness: 500 cd/m2

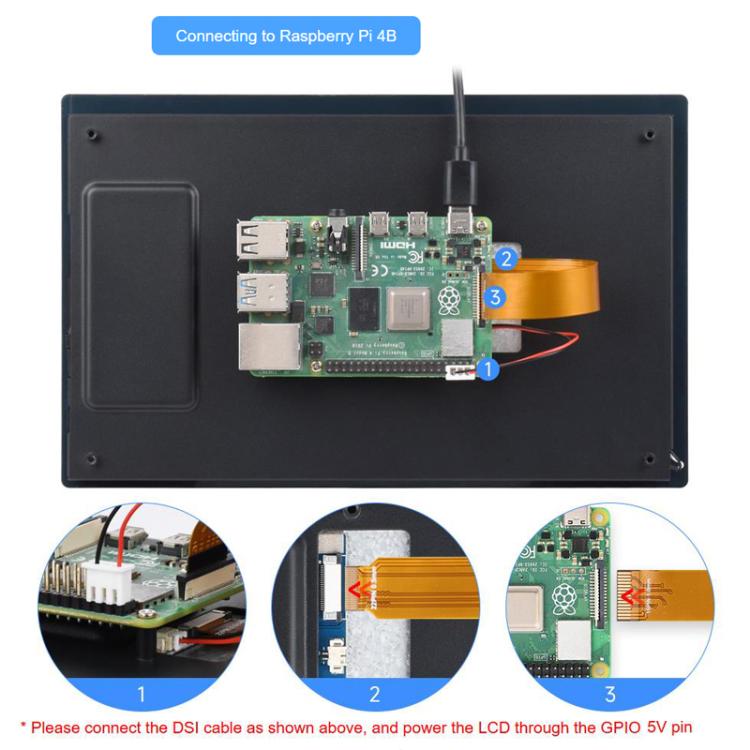

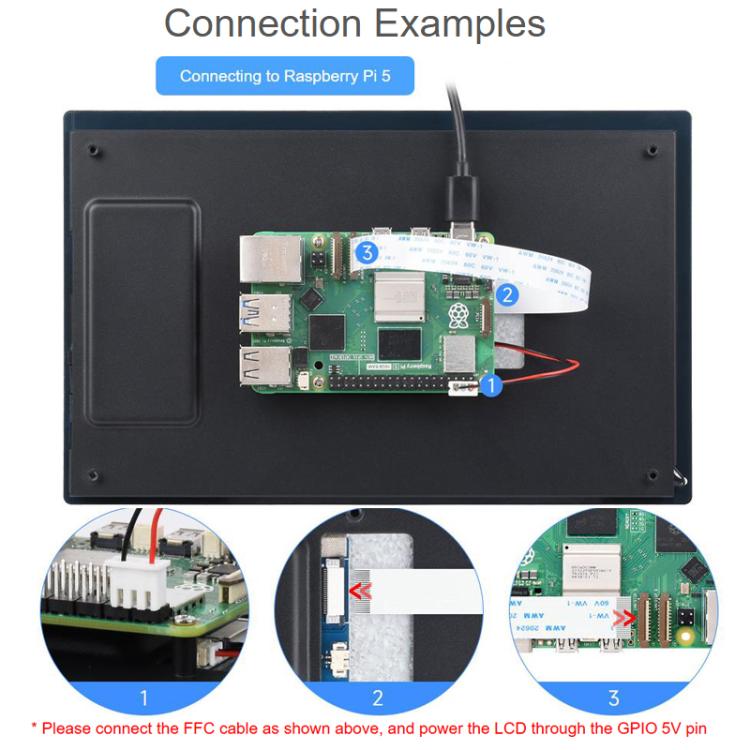

11. for Raspberry Pi Pi 3A + / 3B + / 4B / 5, CM3 / 3 + / 4 / 5, support Raspberry Pi OS

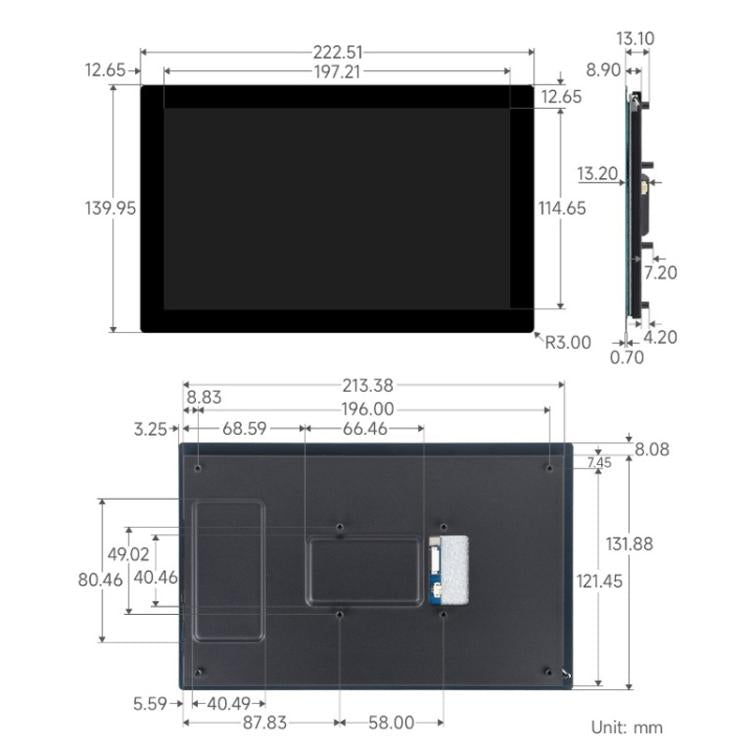

12. Size: about 22.3 x 14 x 1.3cm
Features:

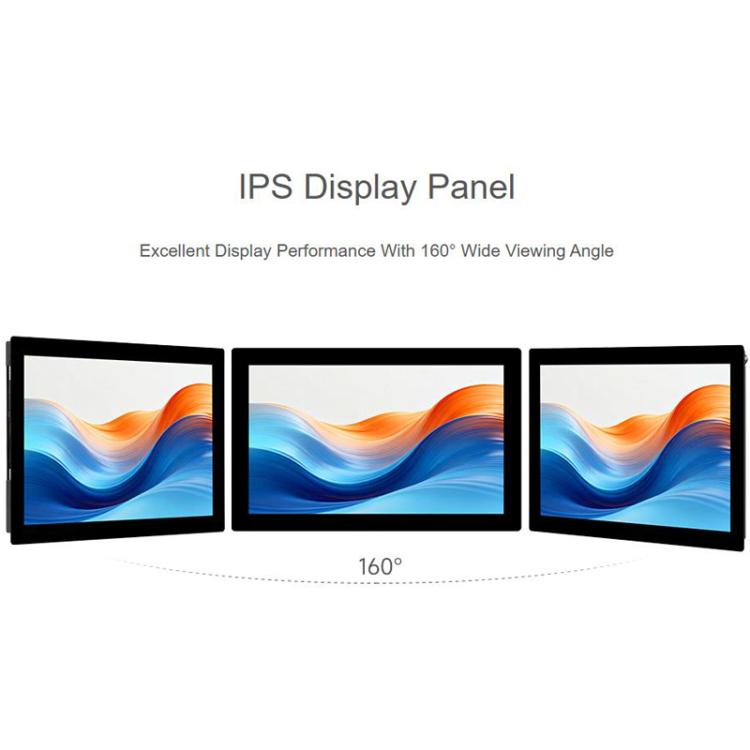

1. IPS display panel, excellent display performance, viewing angle up to 160 degrees
2. High color gamut quantum lamp technology, higher color gamut, more pure color

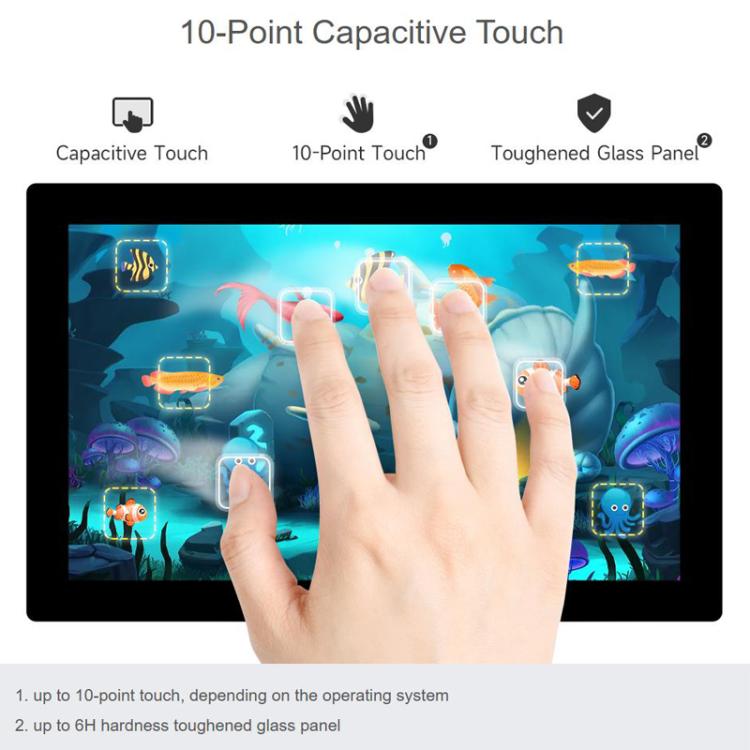

3. 10-point touch support, the actual number of touch points is related to the software system.
4. Tempered glass panel, hardness of 6H

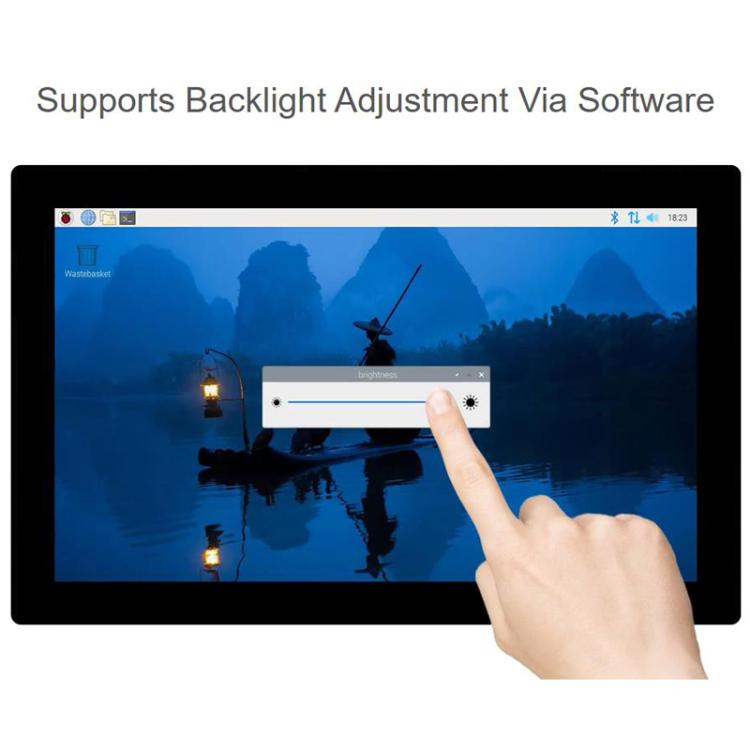

5. Brightness of backlight can be adjusted by software.

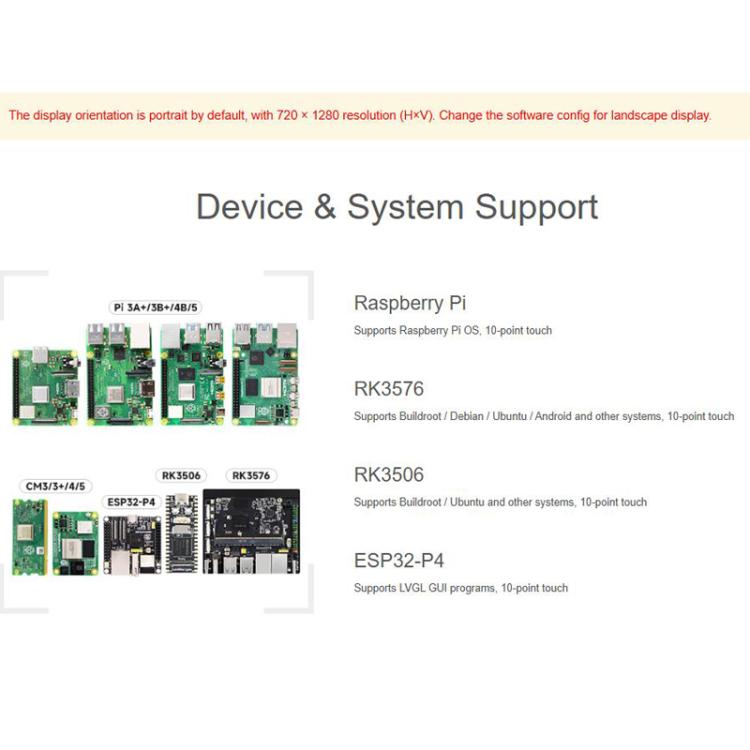

6. Default is vertical display, the resolution is 720 x 1280 (H x V), you can modify the software settings, horizontal display
Specification:
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.89lb
|
| One Package Size |
24cm * 16cm * 4cm / 9.45inch * 6.3inch * 1.57inch
|
| Carton Weight |
15.40kgs / 33.95lb
|
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 412 cartons * 36 pcs = 14832 pcs
40HQ: 958 cartons * 36 pcs = 34488 pcs
|
|
