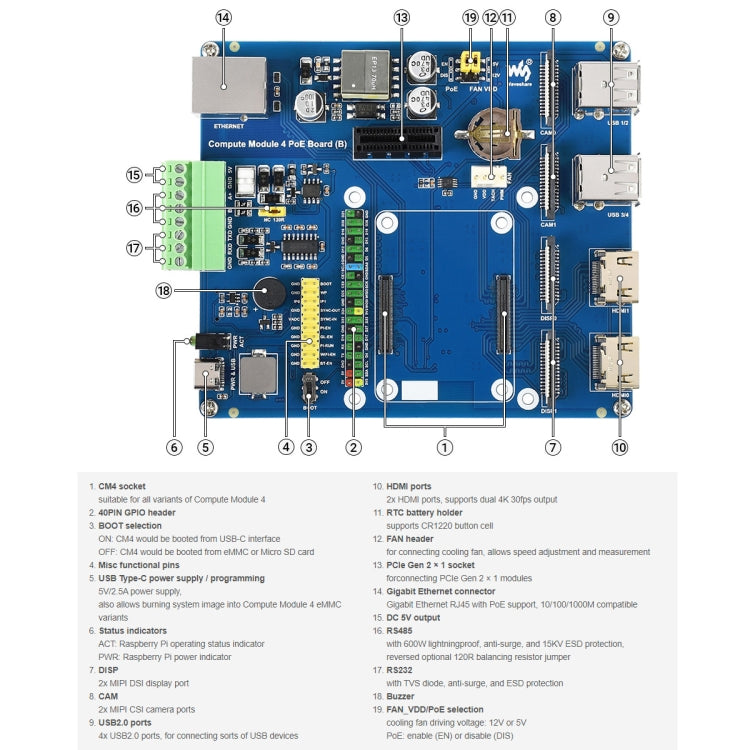

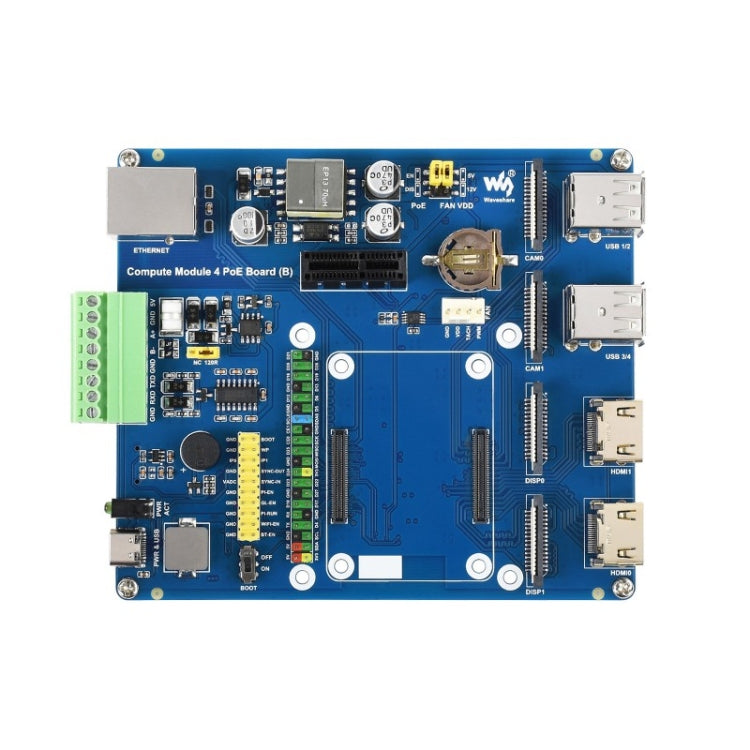

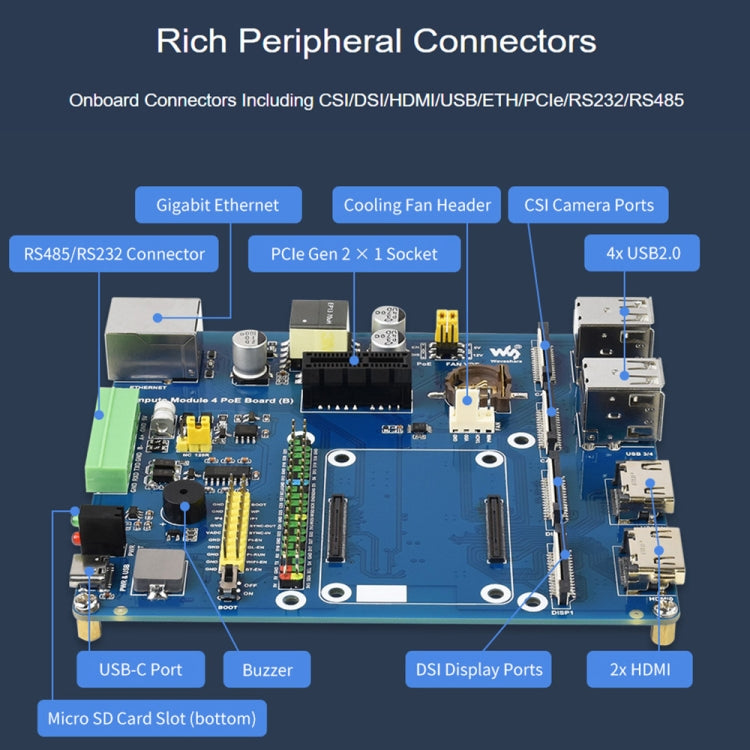

1. POE: Integrates 802.3af-compliant PoE circuit (5V/2.5A)
2. USB: USB 2.0 x 4
3. GPIO: Raspberry Pi 40 PIN GPIO x 1
4. Header:
- RS485 x 1
- RS232 x 1
- PCIe Gen 2 x 1
5. HD media interface: HDMI x 2, supports 4K 30fps output
6. DSI display: MIPI DSI x 2 (15pin 1.0mm FPC)
7. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
8. Power input: 5V
9. FAN: 5V / 12V (Allows speed adjustment and measurement)

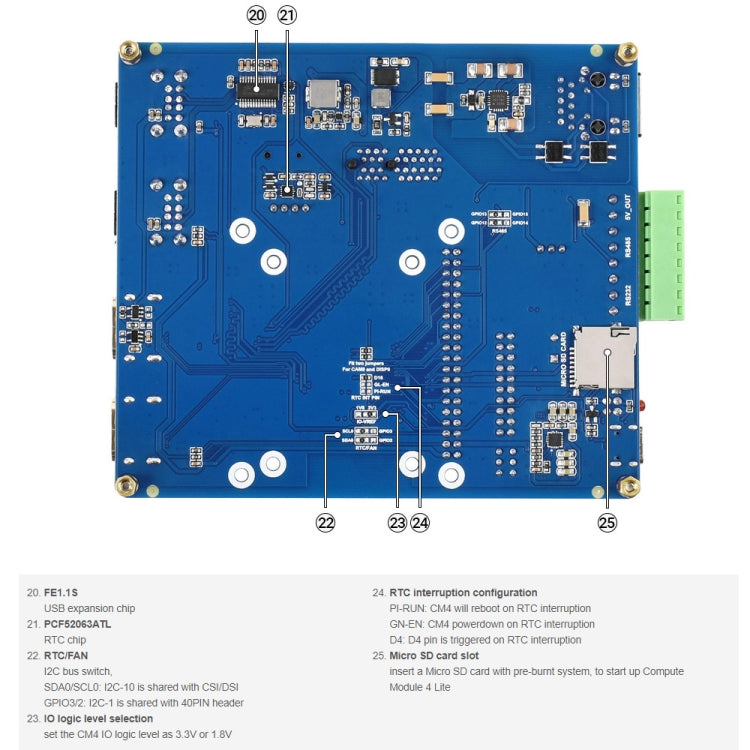

10. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
11. RJ45 Ethernet: Gigabit Ethernet

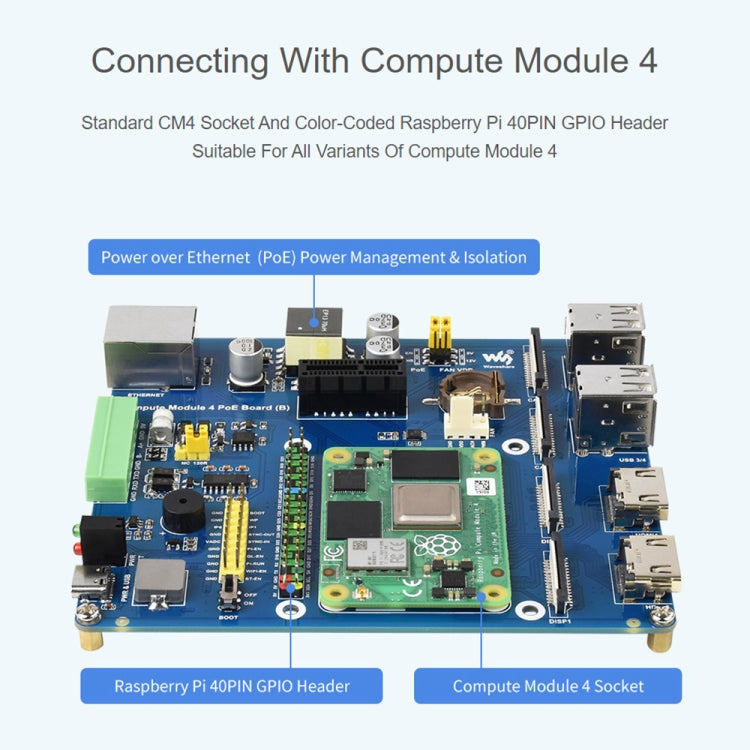

12. CM4 slot: Suitable for all variants of Compute Module 4
13. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

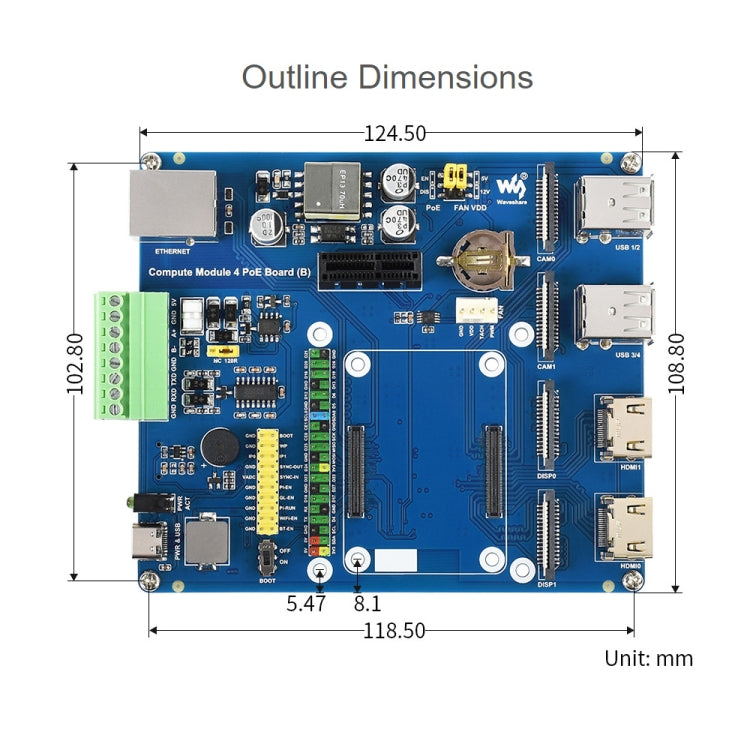

14. Size: 124.50 x 108.80mm
Specification:
|
Package Weight
|
| One Package Weight |
0.13kgs / 0.28lb
|
| One Package Size |
16cm * 10cm * 4cm / 6.3inch * 3.94inch * 1.57inch
|
| Carton Weight |
14.50kgs / 31.97lb
|
| Carton Size |
48cm * 40cm * 40cm / 18.9inch * 15.75inch * 15.75inch
|
| Loading Container |
20GP: 347 cartons * 120 pcs = 41640 pcs
40HQ: 806 cartons * 120 pcs = 96720 pcs
|
|
