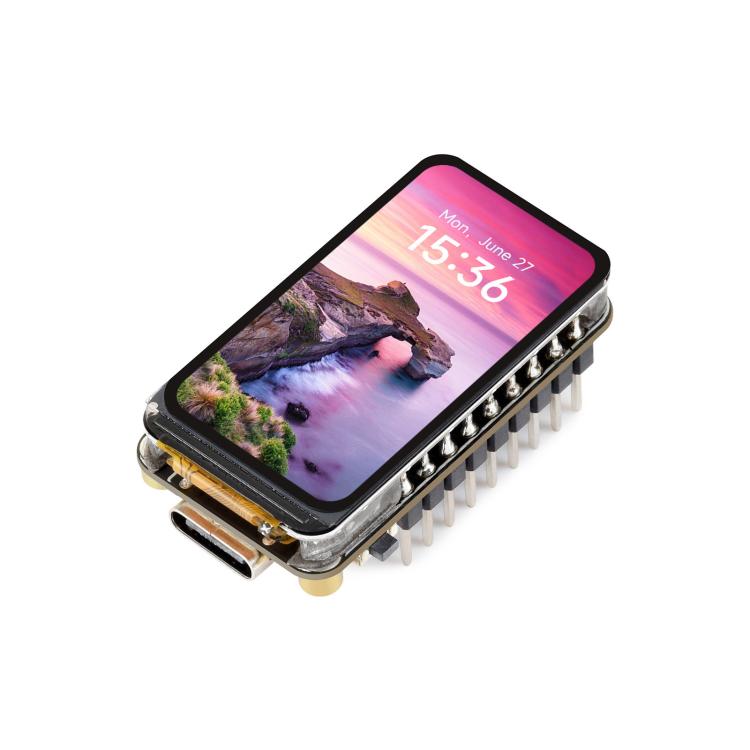

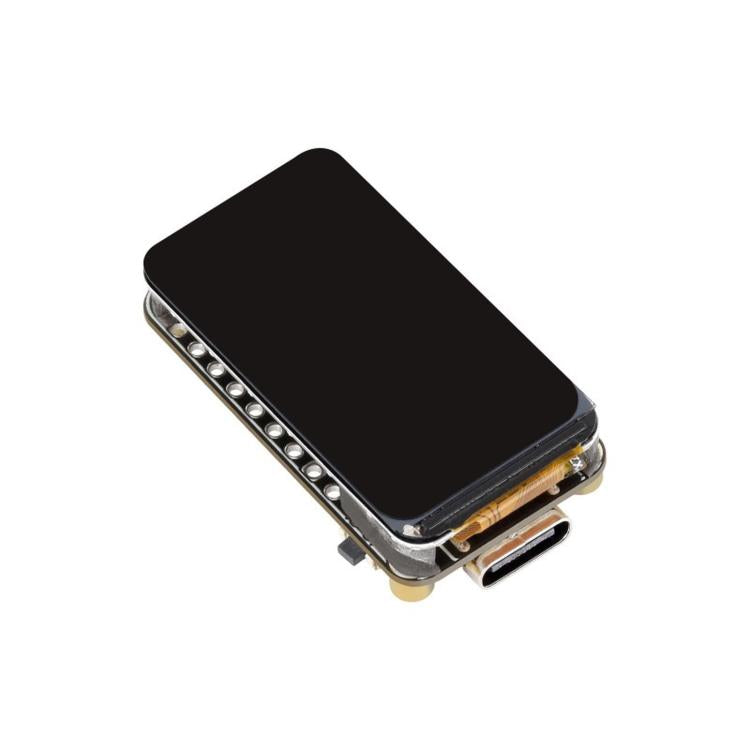

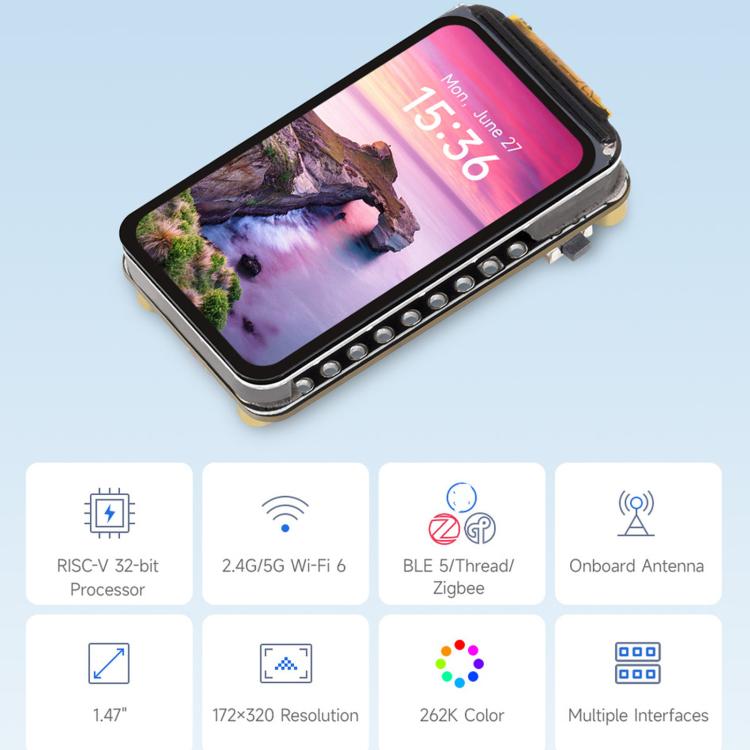

1. This product is a microcontroller development board supporting 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5 (LE). It features stacked 4MB Flash and an onboard 1.47-inch LCD screen, capable of smoothly running GUI applications such as LVGL. With its diverse peripheral interfaces, it enables rapid development of HMI and other applications based on the ESP32-C5. 2. Features both a high-performance and a low-power RISC-V 32-bit processor; the high-performance processor clocks up to 240 MHz, while the low-power processor clocks up to 48 MHz.

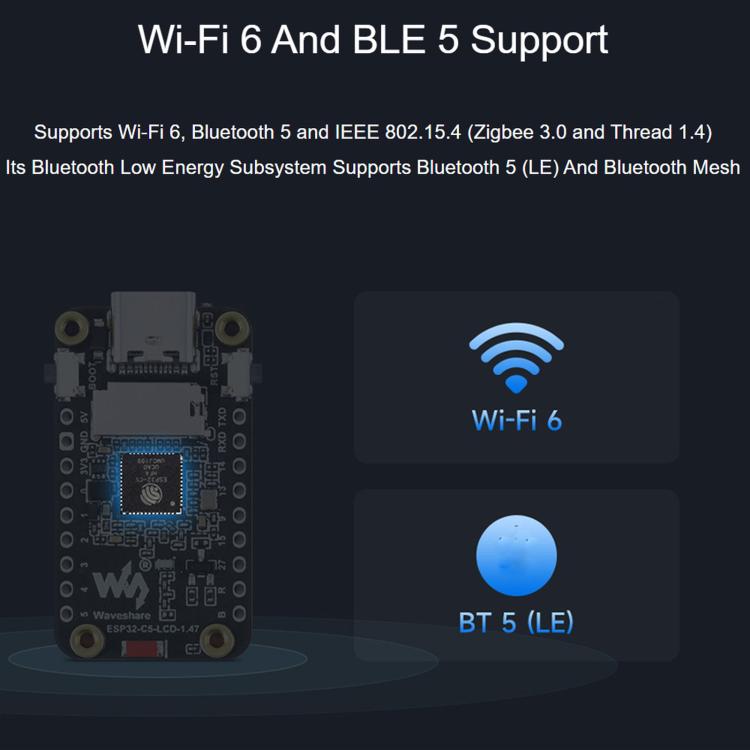

3. Integrates Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread 1.4) wireless connectivity with superior RF performance.
4. Onboard memory: 320 KB ROM, 384 KB HP SRAM, 16 KB LP SRAM, and 4 MB Flash.
5. Onboard 1.47-inch LCD screen with 172 × 320 resolution and 262K colors.
6. Onboard USB-C port supporting ESP32-C5 native USB functions (download, debugging, and serial communication); specific functionality depends on firmware configuration.
7. Onboard Micro SD card slot for external storage of images or files.
8. Supports flexible clock configuration and multiple power management modes, facilitating low-power applications across various scenarios.
9. Onboard RGB LED; combined with a transparent acrylic interlayer, it creates cool lighting effects.

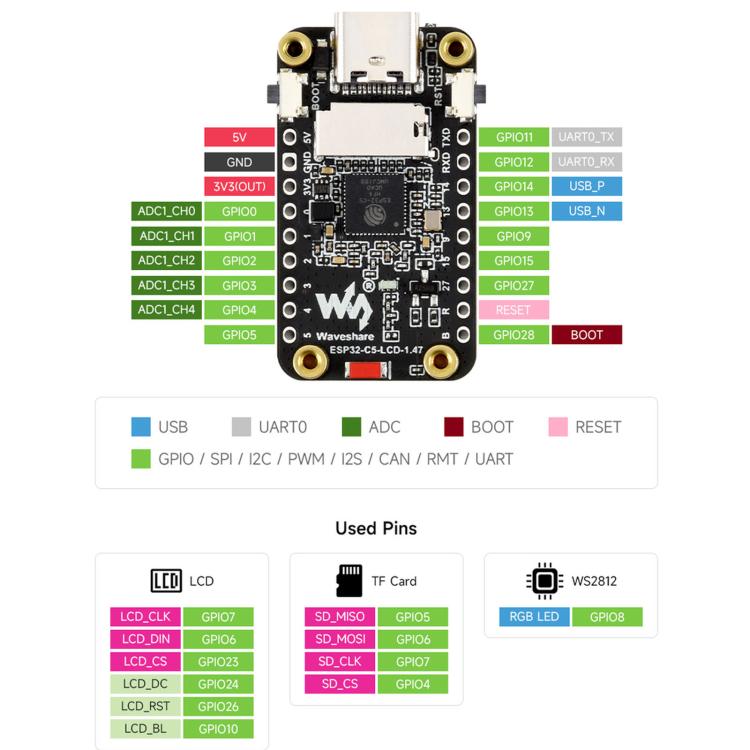

10. Breaks out most GPIO pins.
Specifications:
1. Interface: USB Type-C
2. Main Chip: ESP32-C5FH4
3. Flash: 4 MB
4. Screen Type: TFT
5. Screen Size: 1.47 inches
6. Screen Resolution: 172 × 320
7. Screen Interface: SPI
8. Screen Controller: ST7789
9. Touch: None

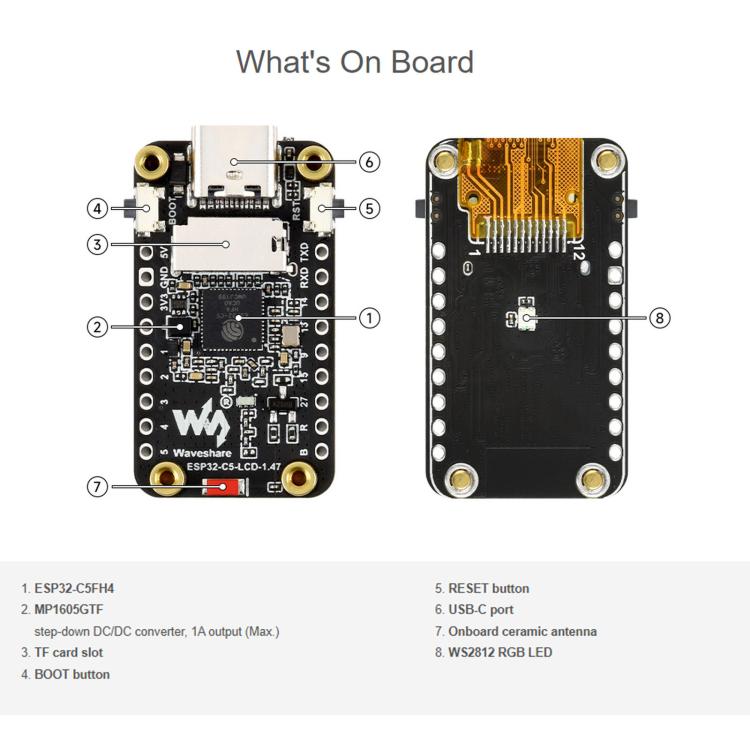

10. Onboard Peripherals: Micro SD, WS2812 RGB LED
11. Breakout Interface: 18-pin header interface
Specification:
|
Package Weight
|
| One Package Weight |
0.09kgs / 0.21lb
|
| One Package Size |
10cm * 7cm * 4cm / 3.94inch * 2.76inch * 1.57inch
|
| Carton Weight |
19.10kgs / 42.11lb
|
| Carton Size |
42cm * 37cm * 32cm / 16.54inch * 14.57inch * 12.6inch
|
| Loading Container |
20GP: 536 cartons * 200 pcs = 107200 pcs
40HQ: 1244 cartons * 200 pcs = 248800 pcs
|
|
