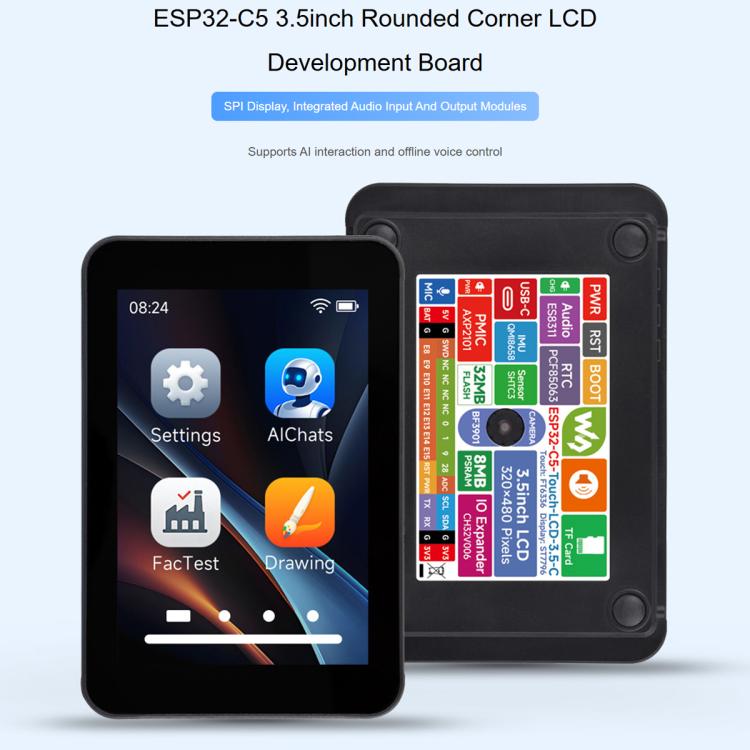

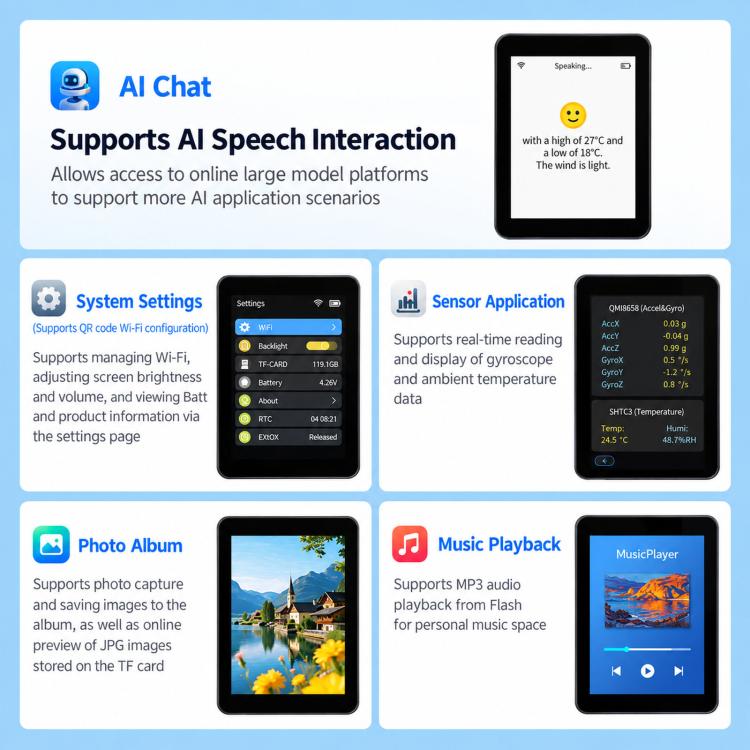

1. ESP32-C5-Touch-LCD-3.5 is a microcontroller development board designed by Waveshare. Onboard 3.5-inch LCD screen, power management chip, 6-axis sensor, temperature and humidity sensor, Micro SD card slot, etc., providing hardware foundation for display, sensing, voice, and multimedia storage. Relying on these hardware, the product can connect to online AI LLM platforms to achieve intelligent voice interaction and visual interaction.

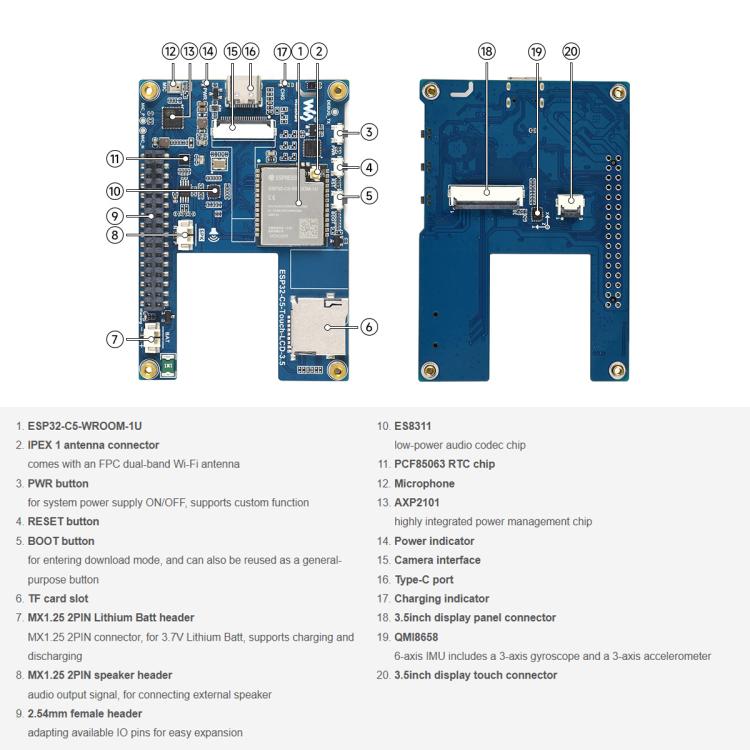

2. Adopts ESP32-C5-WROOM-1U series module, equipped with a RISC-V 32-bit processor, main frequency up to 240 MHz.
3. Integrated 384 KB SRAM, 320 KB ROM, 8 MB PSRAM, and 32 MB Flash, meeting the needs for program execution, graphical user interfaces, and data storage.
4. Integrated 2.4 GHz and 5 GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (supporting Zigbee 3.0 and Thread) wireless communication, featuring excellent RF performance.

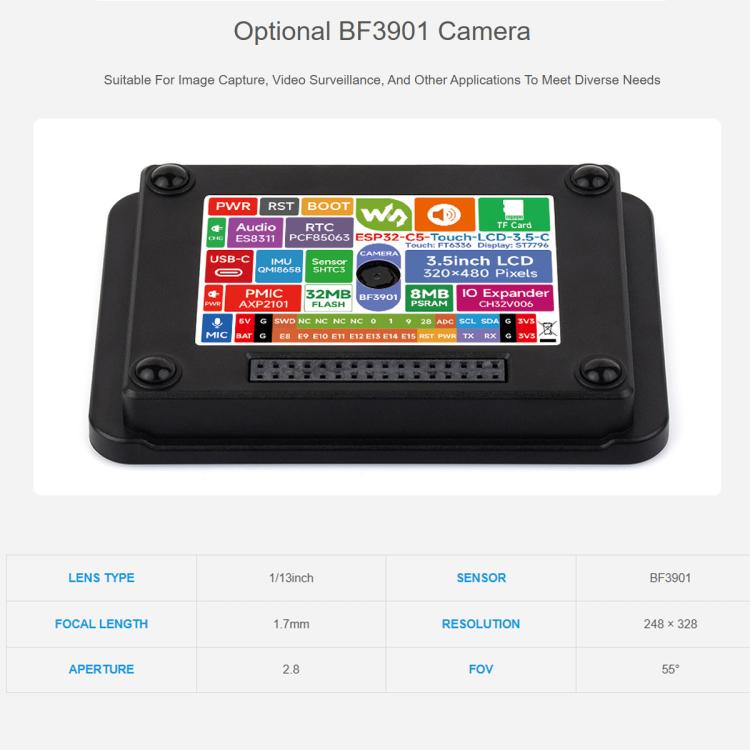

5. Onboard camera interface, supporting BF3901 camera.
6. Onboard battery charge management module, with a reserved 3.7V MX1.25 lithium battery interface for external battery power supply.
7. Uses Type-C interface, improving user convenience and device compatibility.

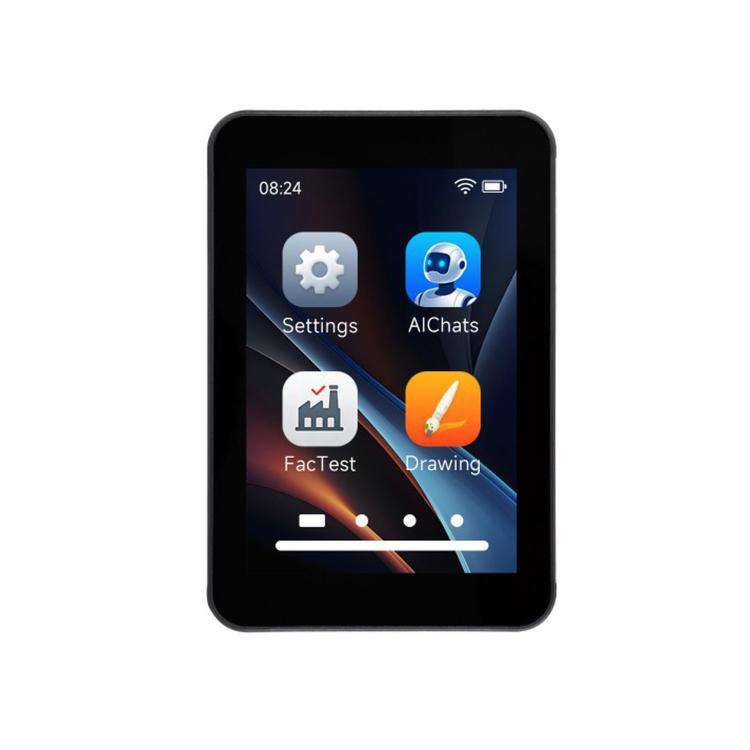

8. Onboard 3.5-inch capacitive touch HD IPS screen, 320 x 480 resolution, 262K colors, capable of displaying color images clearly.
9. Built-in ST7796 driver chip and FT6336 capacitive touch chip, using SPI and I2C interfaces for communication respectively, saving interface pin resources.

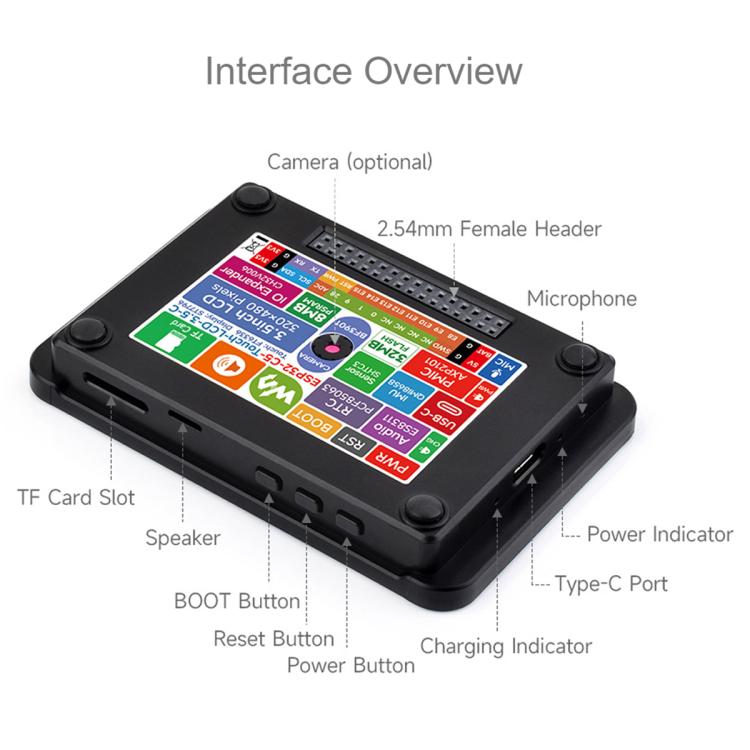

10. Leads out UART, I2C, and some IO interfaces, integrated full-speed USB serial port.
11. Onboard QMI8658 6-axis sensor, RTC clock sensor, SHTC3 temperature and humidity sensor, and TF card slot, etc.
12. Onboard PWR and BOOT customizable side buttons, convenient for custom feature development using buttons.
13. Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker, easily playing with Xiaozhi AI.
14. Supports ESP-IDF / Arduino development environments, rich resources, easy to get started.

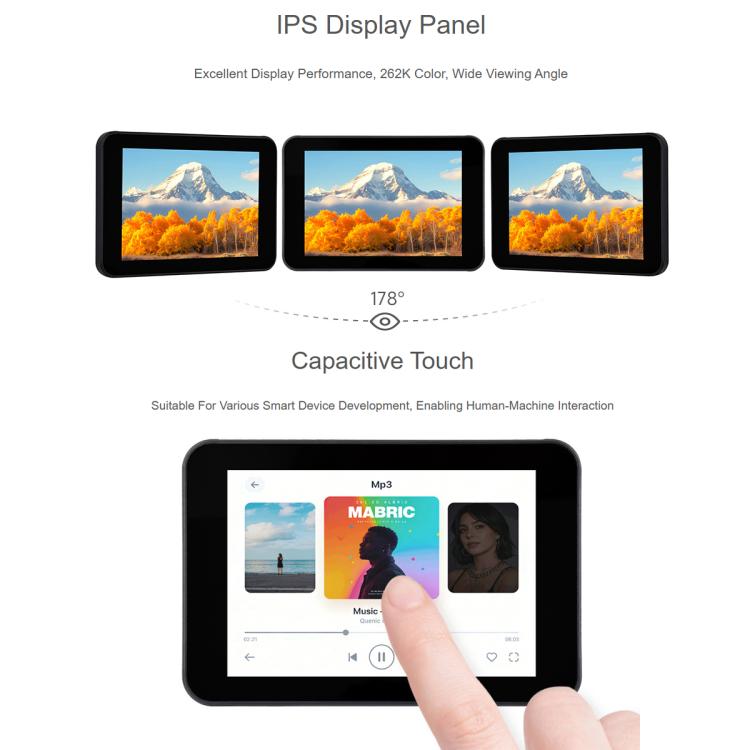

LCD Screen Specifications:
1. Display panel: IPS
2. Display size: 3.5 inch
3. Display resolution: 320 x 480 pixels
4. Display color: 262K
5. Display brightness: 450 cd/m2
6. Contrast ratio: 1100:1
7. Communication interface: SPI
8. Driver IC: ST7796
9. Touch type: Capacitive sensing
10. Touch IC: FT6336
Specification:
|
Package Weight
|
| One Package Weight |
0.13kgs / 0.30lb
|
| One Package Size |
13cm * 10cm * 5cm / 5.12inch * 3.94inch * 1.97inch
|
| Carton Weight |
14.00kgs / 30.86lb
|
| Carton Size |
45cm * 26cm * 38cm / 17.72inch * 10.24inch * 14.96inch
|
| Loading Container |
20GP: 599 cartons * 100 pcs = 59900 pcs
40HQ: 1392 cartons * 100 pcs = 139200 pcs
|
|
