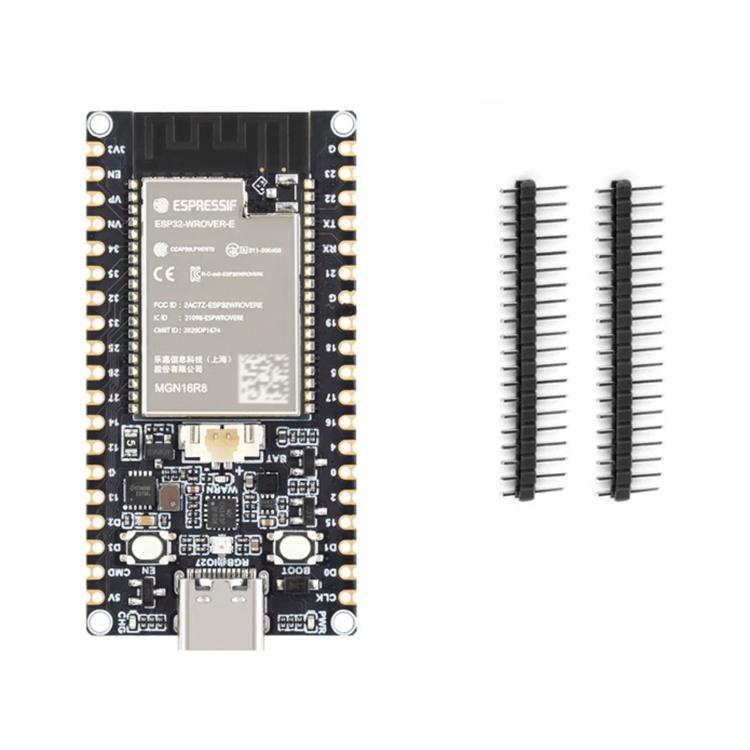

1. Utilizing the ESP32 module, equipped with the Xtensa 32-bit LX6 dual-core processor, with a main frequency of up to 240 MHz
2. Integrating 520KB SRAM and 448KB ROM, with the option of PSRAM and Flash memory versions

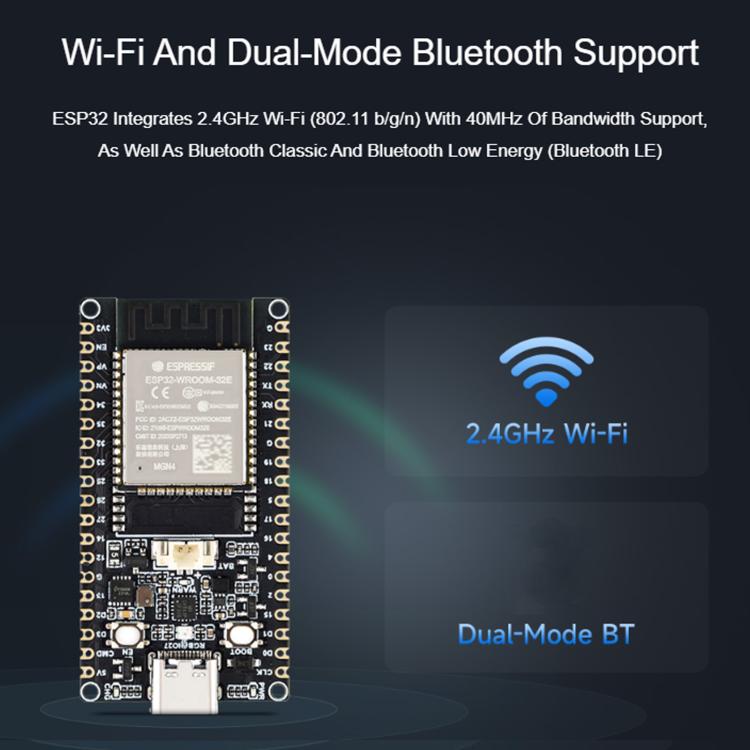

3. Supporting 2.4GHz Wi-Fi, classic Bluetooth, and low-power Bluetooth wireless communication
4. Using the USB Type-C interface, supporting both forward and reverse insertion, facilitating power supply, program download, and serial port debugging

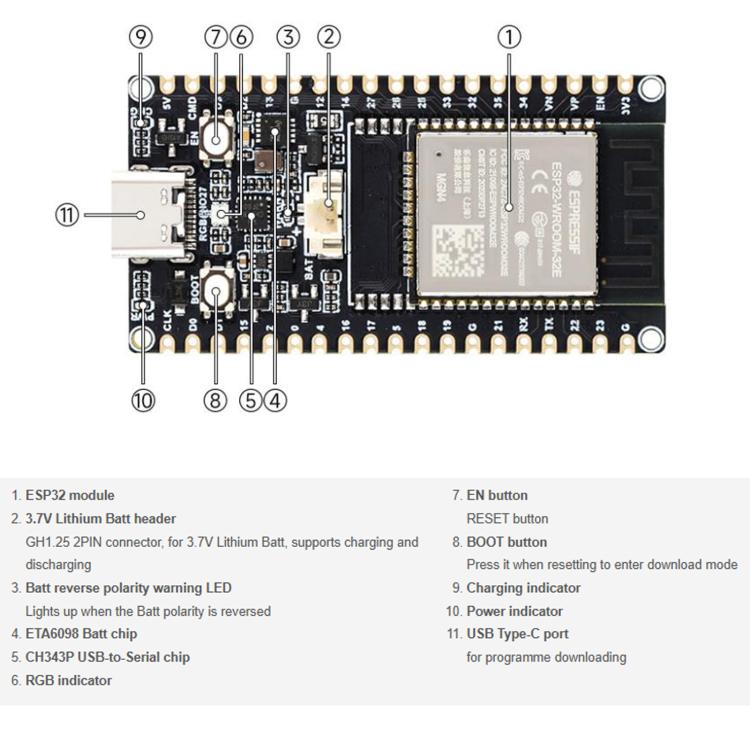

5. Onboard the CH343P USB to UART chip, providing stable and reliable serial communication
6. Supports both USB Type-C and lithium battery power supply methods, and can automatically switch the power source

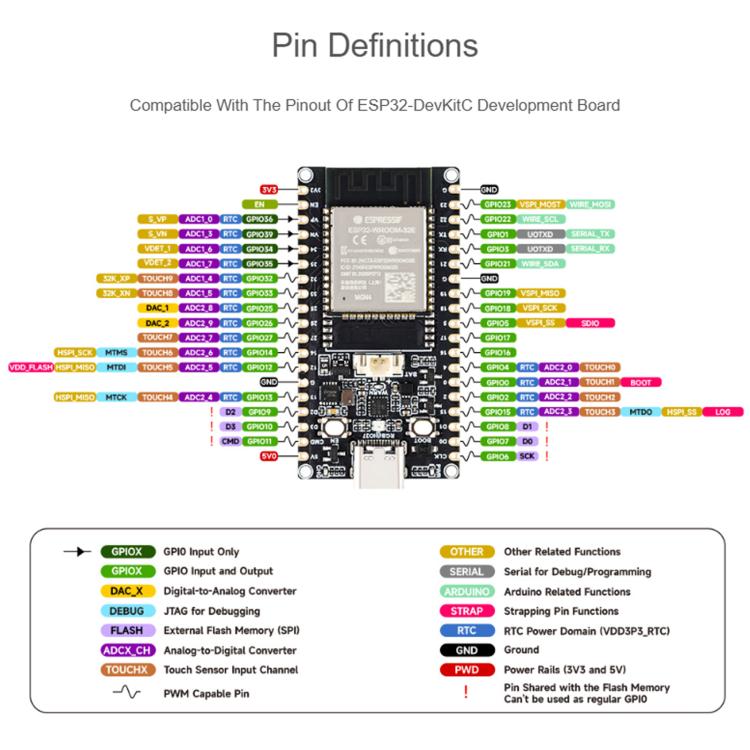

7. Exposing a rich set of peripheral interfaces, with pin compatibility for the ESP32-DevKitC development board, offering strong compatibility and expandability

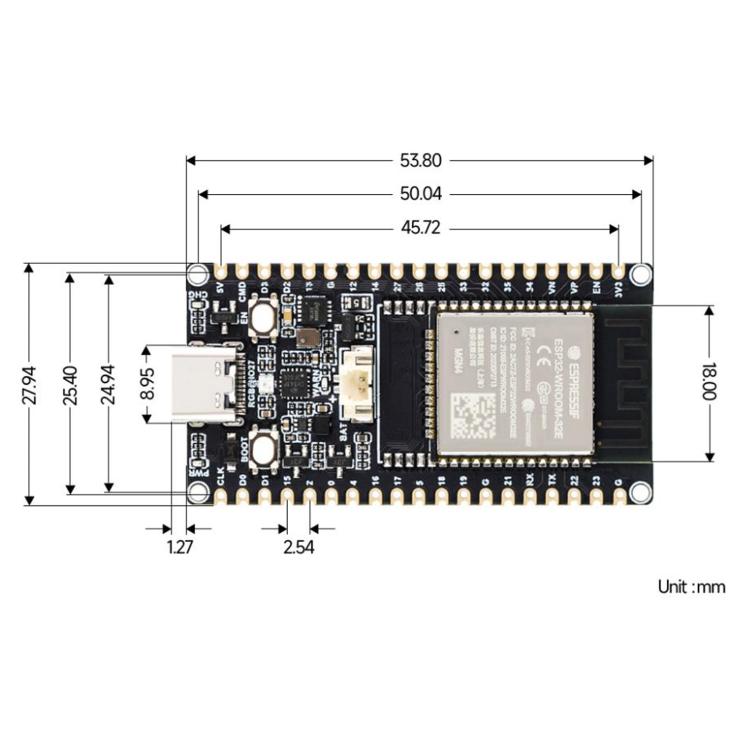

8. Stamps hole design, allowing for direct soldering integration onto the user self-designed baseboard
Specification:
|
Package Weight
|
| One Package Weight |
0.02kgs / 0.05lb
|
| One Package Size |
9cm * 6cm * 3cm / 3.54inch * 2.36inch * 1.18inch
|
| Carton Weight |
8.00kgs / 17.64lb
|
| Carton Size |
47cm * 38cm * 35cm / 18.5inch * 14.96inch * 13.78inch
|
| Loading Container |
20GP: 426 cartons * 330 pcs = 140580 pcs
40HQ: 990 cartons * 330 pcs = 326700 pcs
|
|
