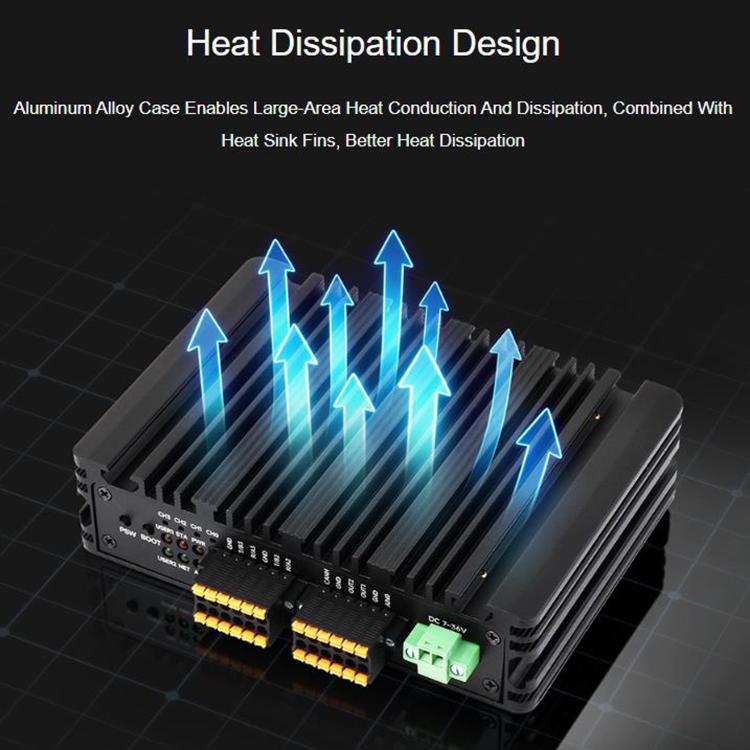

1. The entire chassis is made of aluminum alloy, which provides extensive heat conduction and dissipation. Combined with heat sink fins, it ensures more efficient heat dissipation

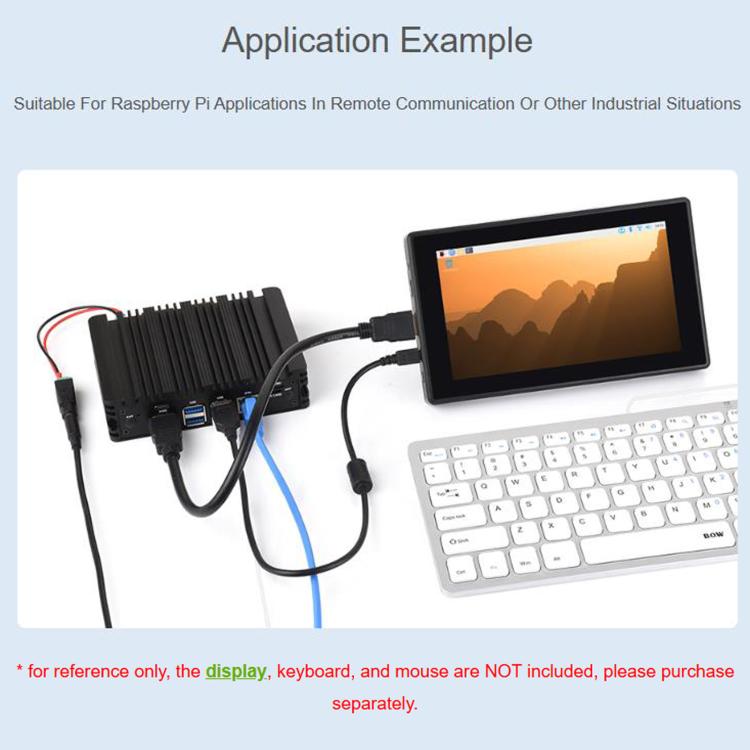

2. Suitable for Raspberry Pi applications in remote communication or other industrial settings

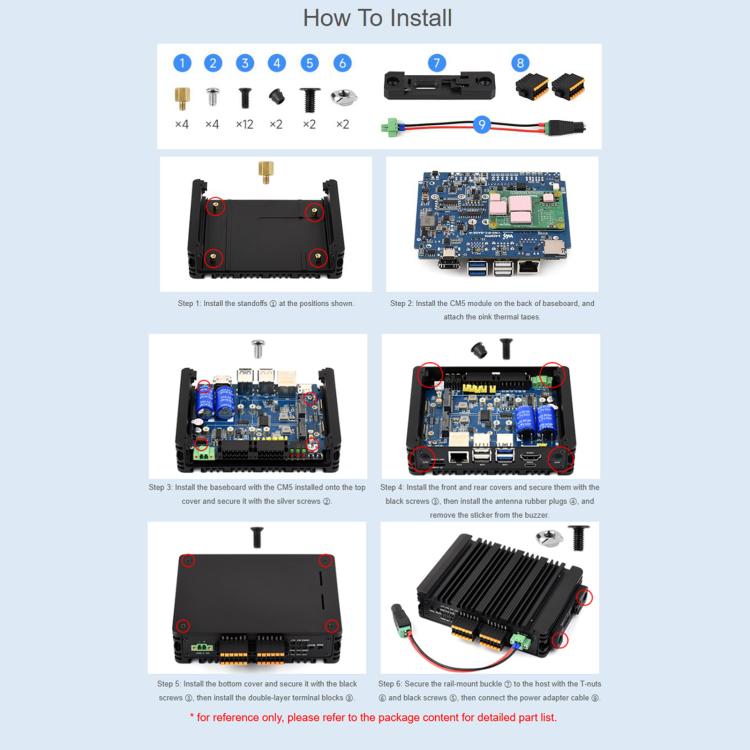

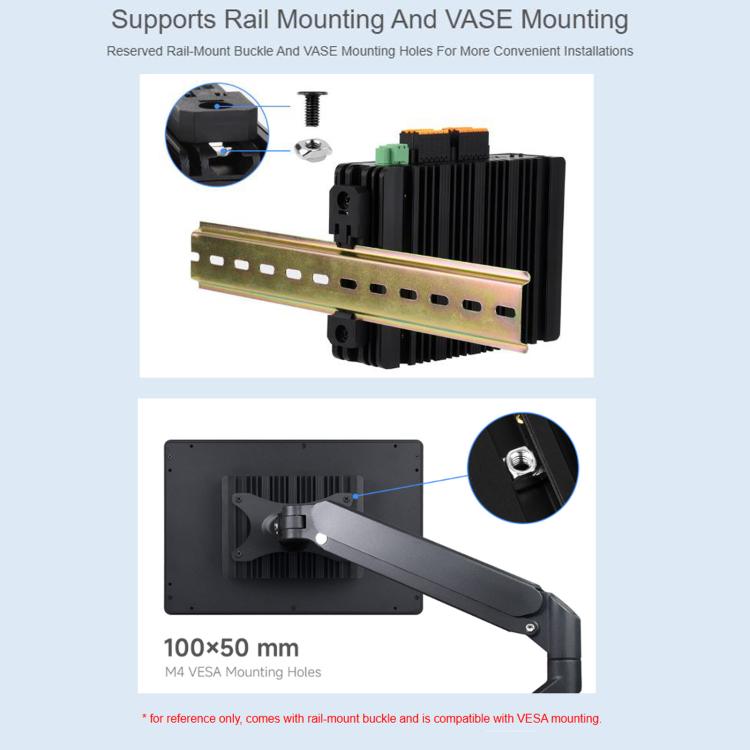

3. Supports DIN rail mounting; pre-drilled mounting screw holes on the side allow for secure attachment to the rail, making installation and mounting more convenient

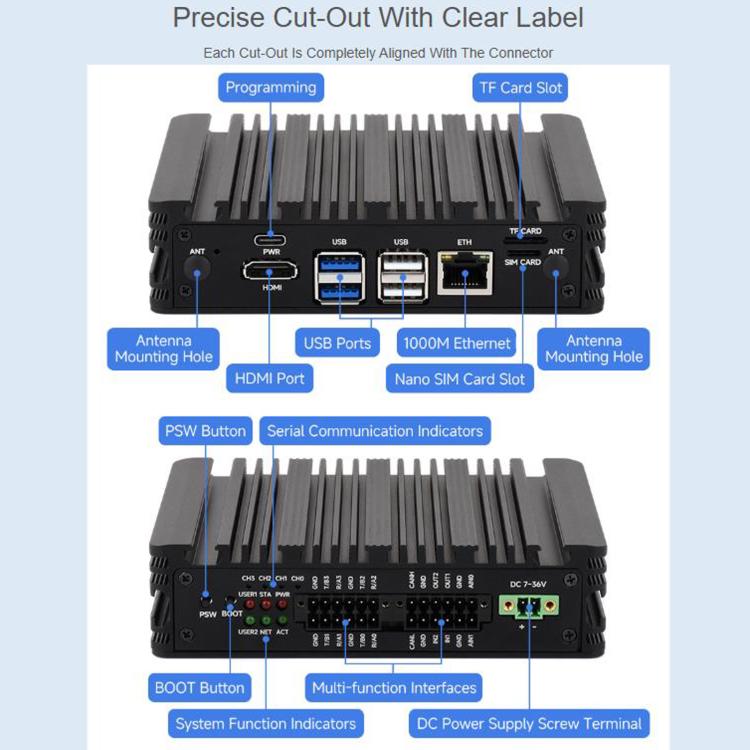

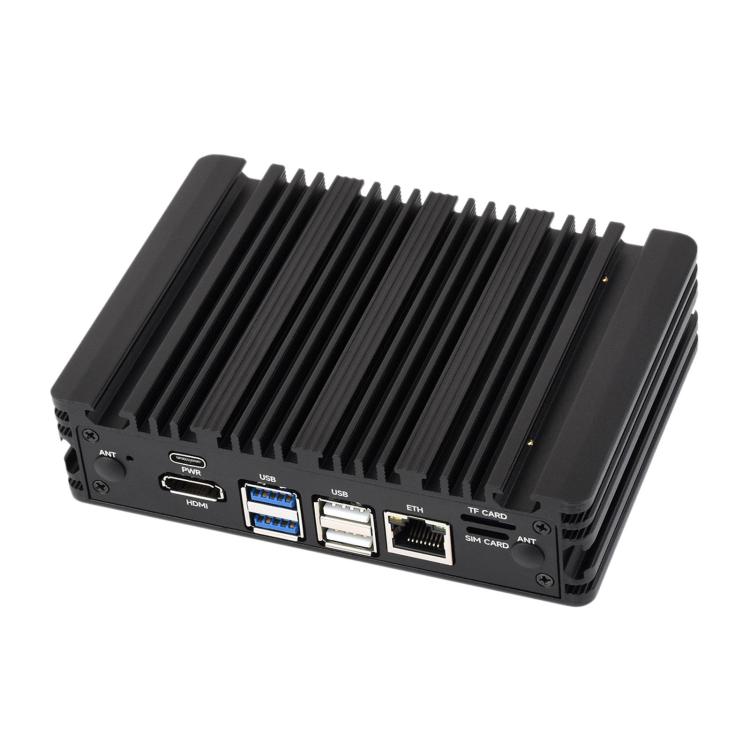

4. The precise hole layout ensures that each port fits snugly against the motherboard, and clear silkscreen markings on the ports facilitate easy identification

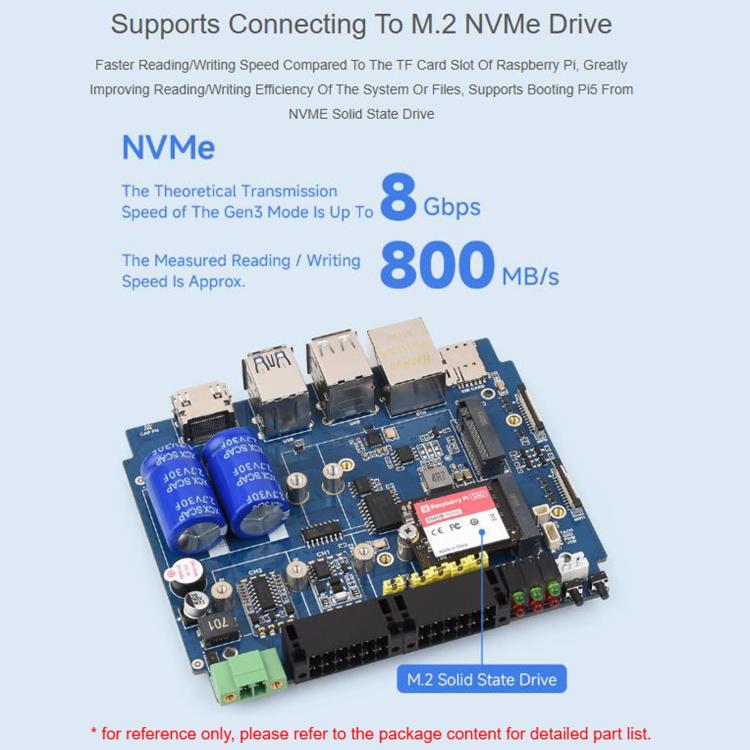

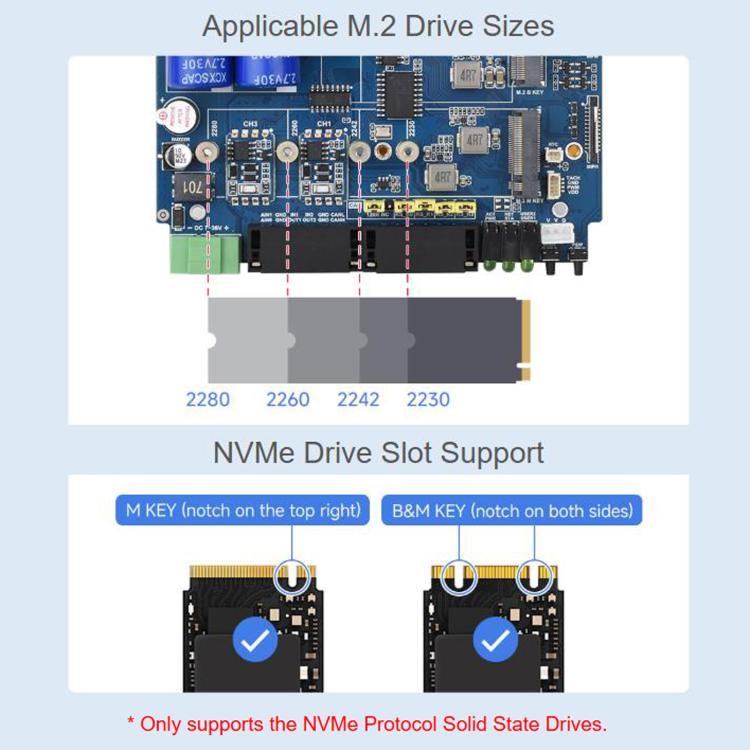

5. Supports M.2 NVMe drives, significantly boosting system and file read/write speeds, and supports booting the Raspberry Pi from an NVMe SSD

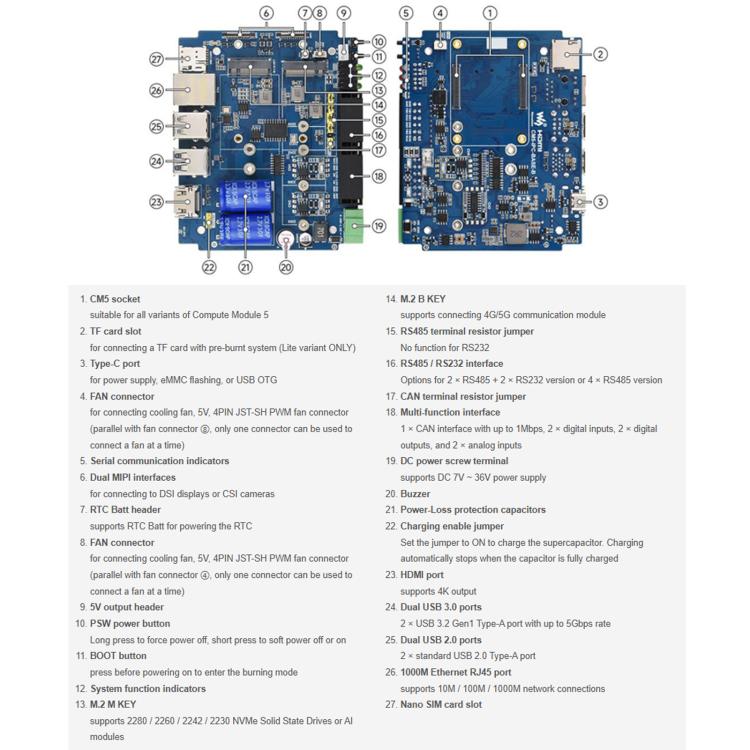

Parameters

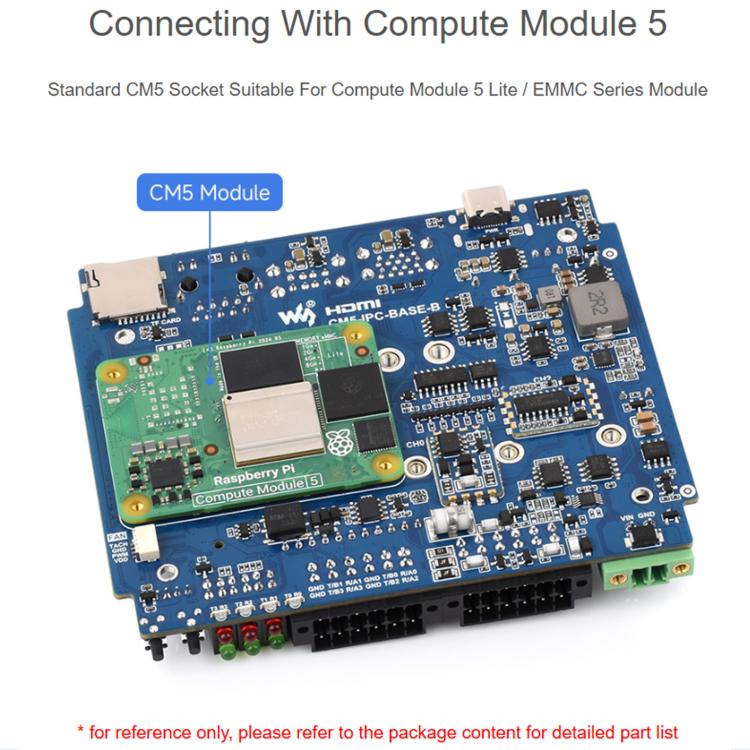

1. CM5 enclosure: suitable for all versions of Compute Module 5
2. Networking: 1000M Ethernet RJ45 interface
3. USB: 2 x USB 3.2 Gen1 x 2, 2 x USB 2.0 interfaces x 2
4. Video: for HDMI interface x 1, suitable for 4K output

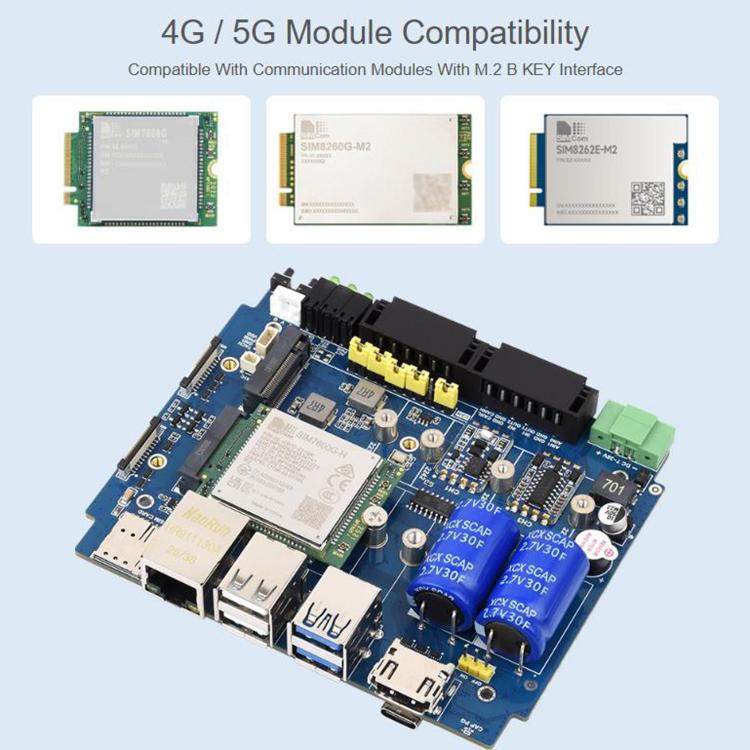

5. M.2: M.2 M KEY (PCIe Gen2/3 x 1, 2230 / 2242 / 2260 / 2280); M.2 B KEY, supporting access to 4G / 5G communication modules
6. Storage: built-in TF Card slot (suitable for CM5 versions without eMMC)
7. Serial interfaces: 2 x RS485 + 2 x RS232 or 4 x RS485 options available; 1 x CAN supports 1Mbps communication rate
8. Digital inputs and outputs: 2 x digital outputs + 2 x digital inputs
9. Analog input: 2 x ADC analog input (can achieve 4 - 20mA current collection by removing components)
10. Fan interface: 5V, 4PIN JST-SH PWM fan connector
11. Beeper: single-channel controllable beeper
12. Others: built-in EEPROM and encryption chip
13. Power input: 7V - 36V wide voltage (terminal), 5V 5A (Type-C)

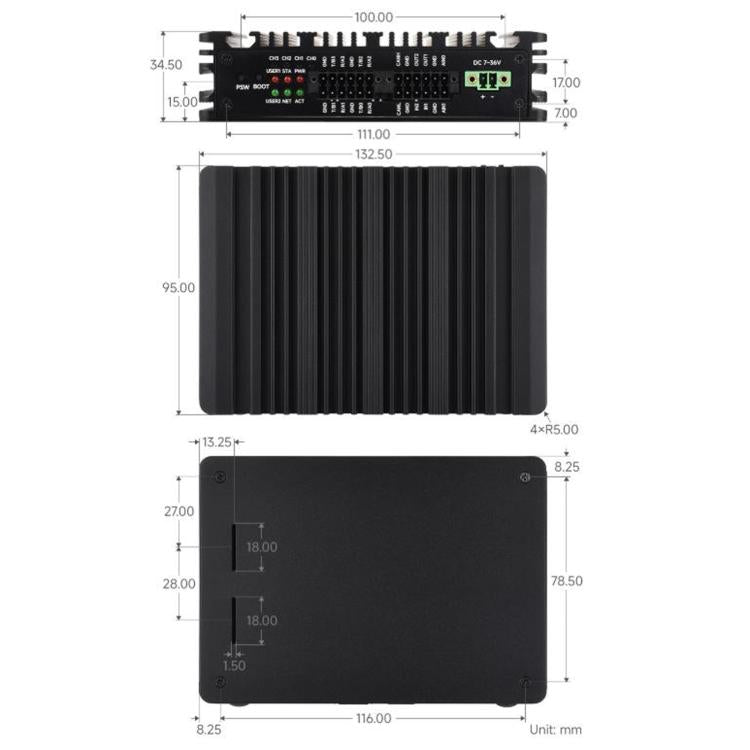

14. Size: about 13.25 x 9.2 x 3.45cm
2×RS485+2×RS232 packaging list:
- CM5-IPC-BASE-B-2RS485 base plate x 1
- CM5-HMI-BOX-B metal casing x 1
- 6mm snap-on plug x 2
- 2PIN 3.5mm spacing connector x 1
- Power adapter 15cm x 1
- Rail clip x 1
- 6PIN 3.5mm spacing double-layer connector (2PCS) x 1
- 12V 4A power supply x 1
- Pink silicone sheet (5PCS) x 1
- Screwdriver x 1
- Screw pack x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.56kgs / 1.24lb
|
| One Package Size |
18cm * 14cm * 6cm / 7.09inch * 5.51inch * 2.36inch
|
| Carton Weight |
20.00kgs / 44.09lb
|
| Carton Size |
50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch
|
| Loading Container |
20GP: 467 cartons * 32 pcs = 14944 pcs
40HQ: 1086 cartons * 32 pcs = 34752 pcs
|
|
