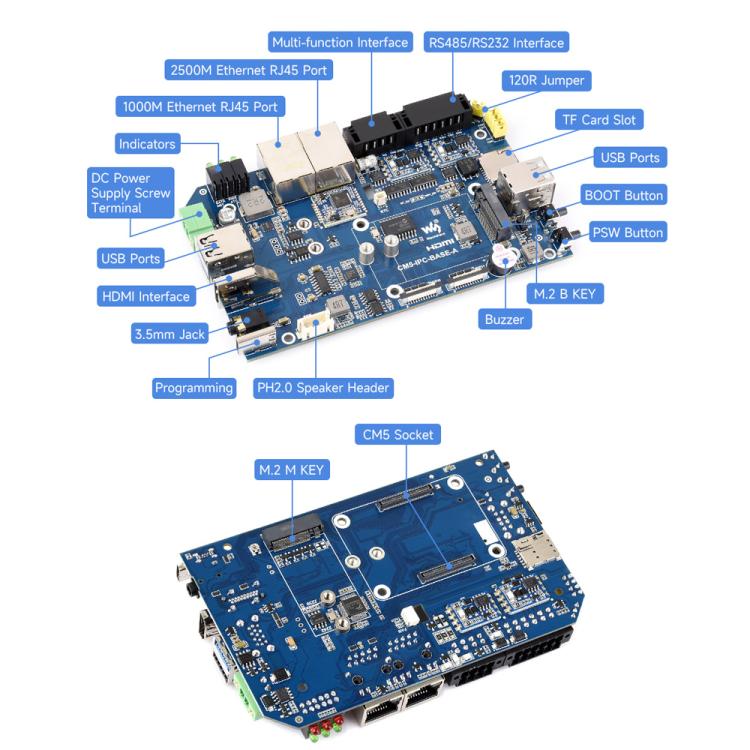

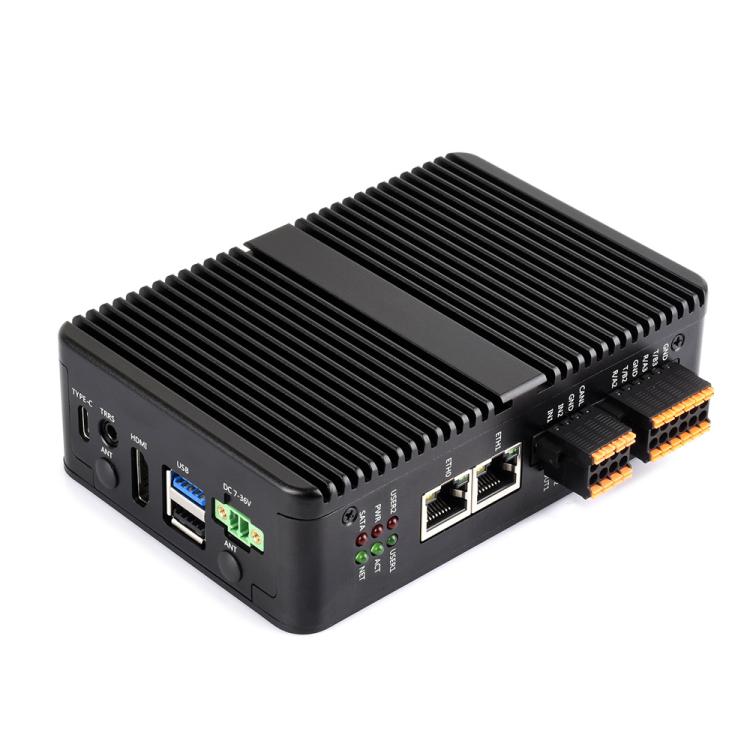

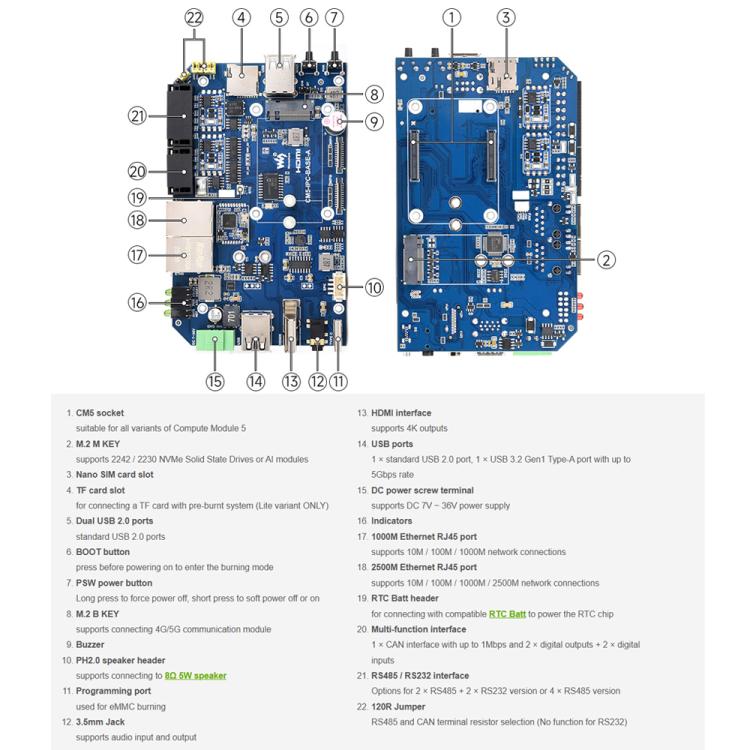

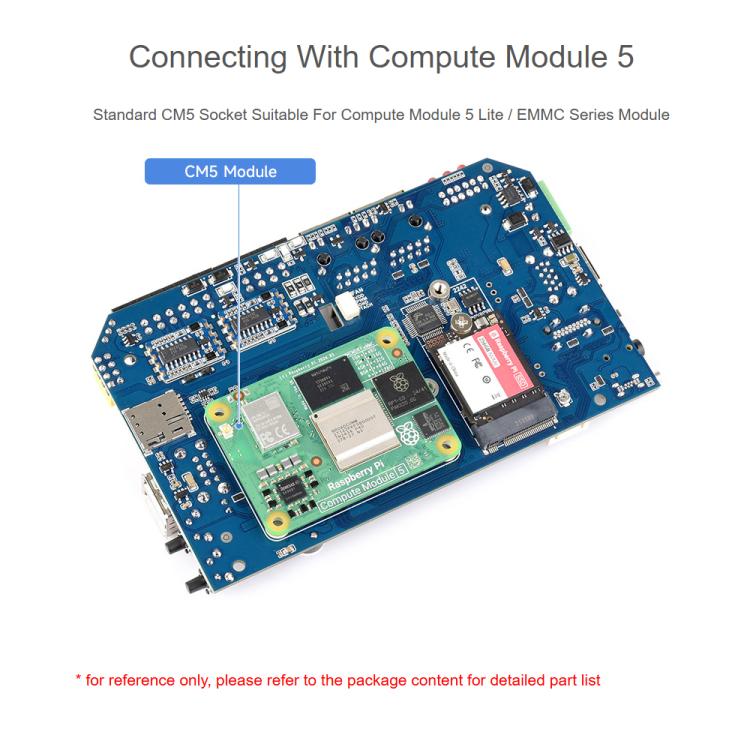

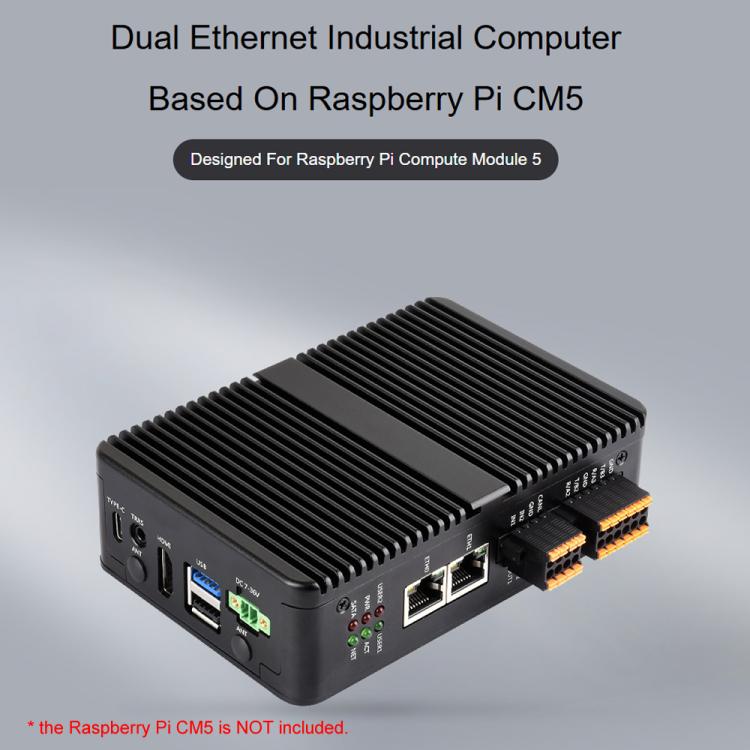

1. CM5 socket: Compatible with all versions of Compute Module 5

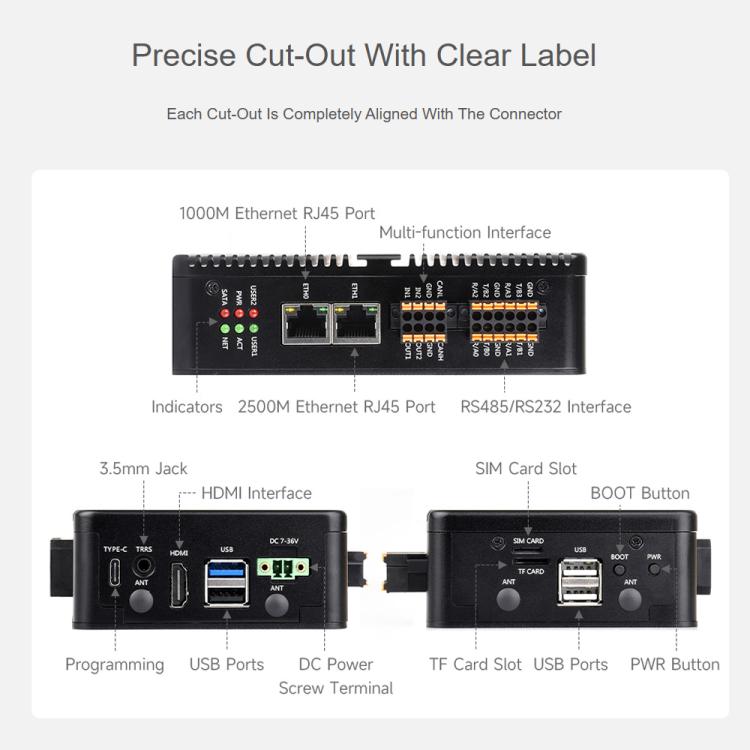

2. Networking: 1000M Ethernet RJ45 interface, 2500M Ethernet RJ45 interface
3. USB: USB 3.2 Gen1 x 1; USB 2.0 interfaces x 3
4. Video: HDMI interface x 1, supports 4K output

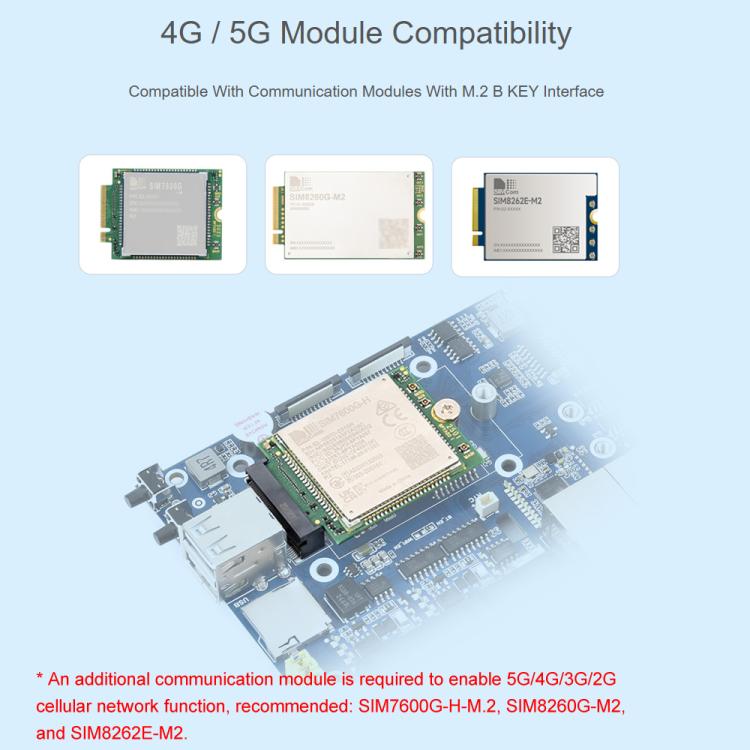

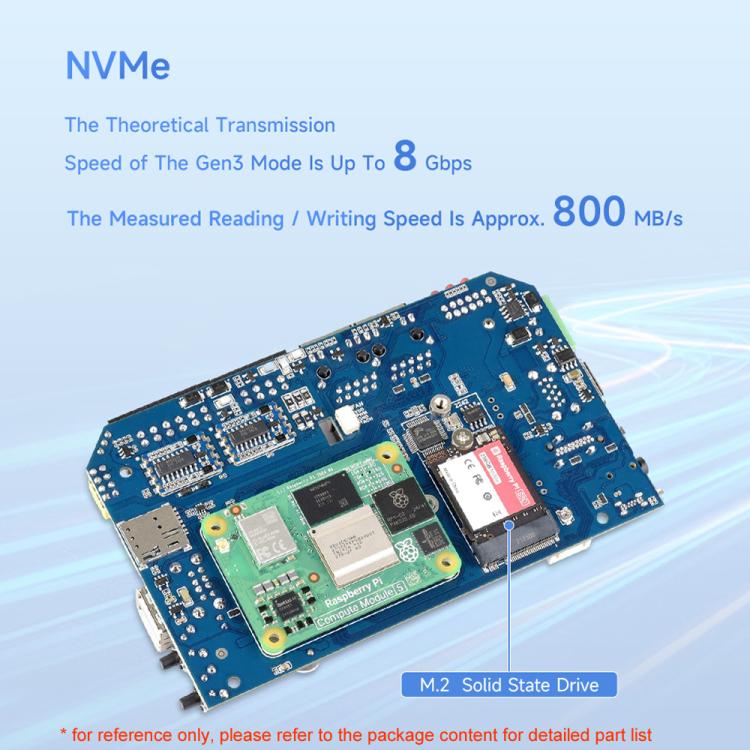

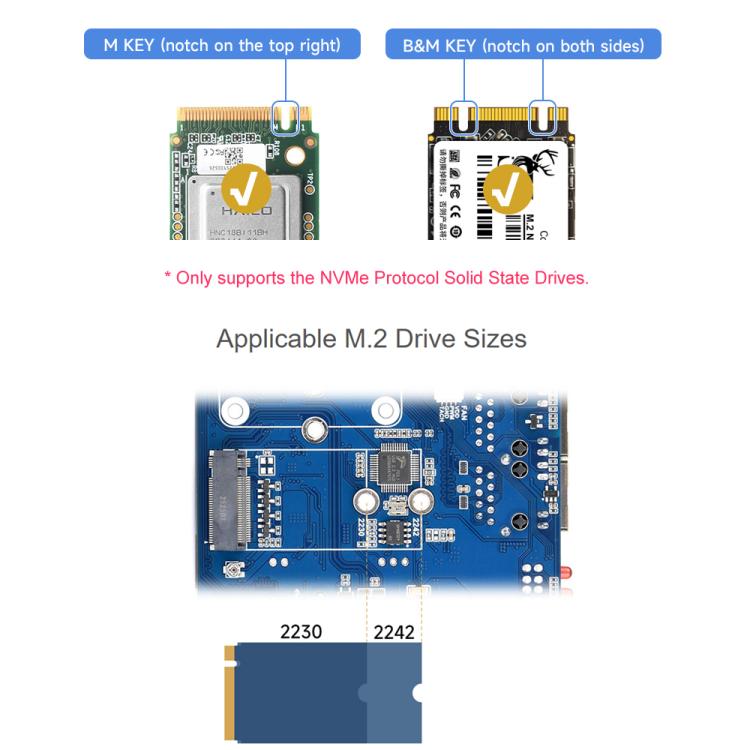

5. M.2: M.2 M KEY (PCIe Gen2/3 x 1, 2230 / 2242); M.2 B KEY, supports connection to 4G / 5G communication modules
6. Storage: On-board Micro SD card slot (for CM5 versions without eMMC)

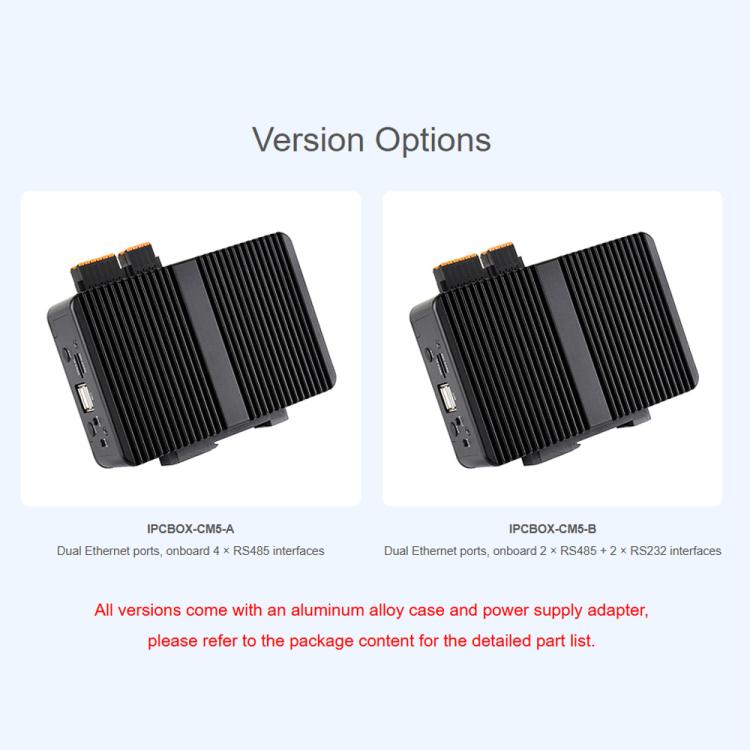

7. Serial interfaces: 2 x RS485 + 2 x RS232 or 4 x RS485 versions optional; 1 x CAN supports 1Mbps communication rate
8. Digital input/output: 2 x digital outputs + 2 x digital inputs
9. Audio: 3.5mm headphone jack (supports microphone), PH2.0 speaker interface
10. Fan interface: 5V, 4PIN JST-SH PWM fan connector
11. Buzzer: Single-channel controllable buzzer
12. Other: On-board EEPROM and encryption chip
13. Power input: 7V to 36V wide voltage (terminal block), 5V 5A (Type-C)

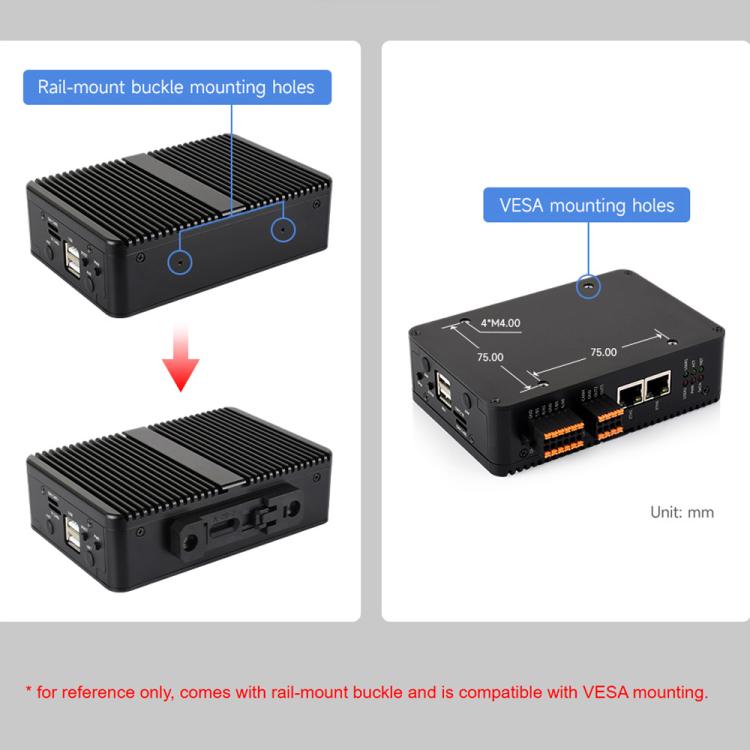

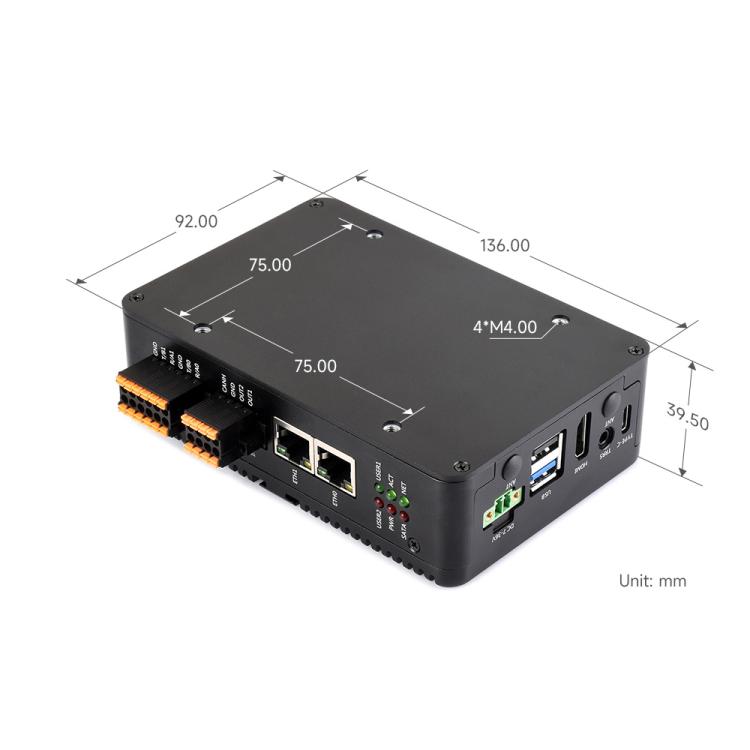

14. Dimensions: 136.00 x 92.00 x 39.50 mm
Specification:
|
Package Weight
|
| One Package Weight |
0.78kgs / 1.73lb
|
| One Package Size |
18cm * 14cm * 6cm / 7.09inch * 5.51inch * 2.36inch
|
| Carton Weight |
24.50kgs / 54.01lb
|
| Carton Size |
38cm * 44cm * 32cm / 14.96inch * 17.32inch * 12.6inch
|
| Loading Container |
20GP: 498 cartons * 30 pcs = 14940 pcs
40HQ: 1157 cartons * 30 pcs = 34710 pcs
|
|
