1. Wavelength: single mode: 1310/1550nm; multi-mode: 850nm
2. Transmission distance: single mode: 0.5km; multi-mode: 20km
3. Reception power: single mode: greater than or equal to -18 (dBm); multi-mode: greater than or equal to -26 (dBm)
4. Rate: 1.0625 - 1.25Gbps
5. Transmission power: -3 to -9 (dBm)
6. Operating voltage: +3.3V ± 5% single power supply
7. Power consumption: less than 0.7W
8. Operating temperature: -20 to +70°C
9. Operating humidity: 5% - 90%RH without condensation

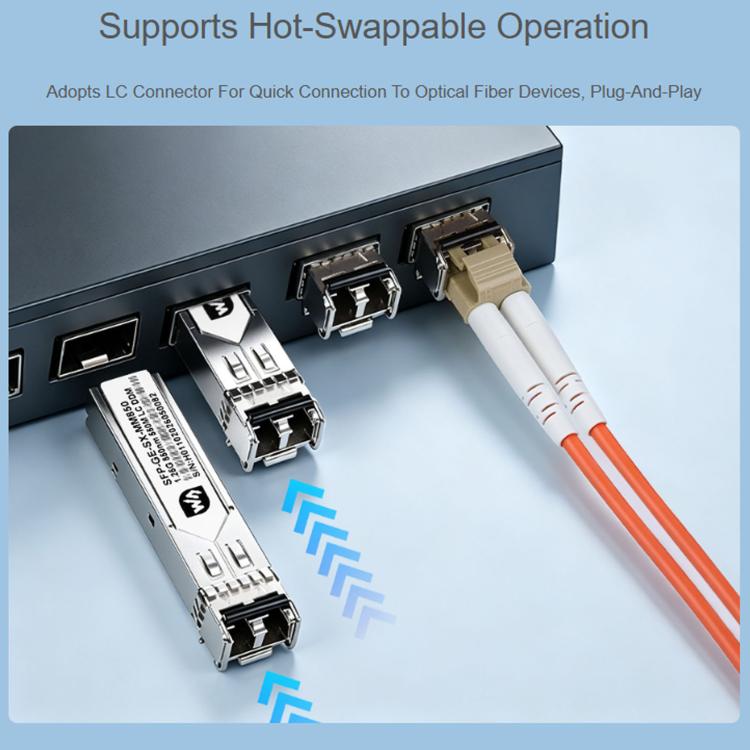

10. Interface type: LC
11. Protocol standard: SFP MSA
12. MTBF: 100000 hours
Specification:
|
Package Weight
|
| One Package Weight |
0.07kgs / 0.15lb
|
| One Package Size |
8cm * 6cm * 4cm / 3.15inch * 2.36inch * 1.57inch
|
| Carton Weight |
20.00kgs / 44.09lb
|
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 412 cartons * 288 pcs = 118656 pcs
40HQ: 958 cartons * 288 pcs = 275904 pcs
|
|
