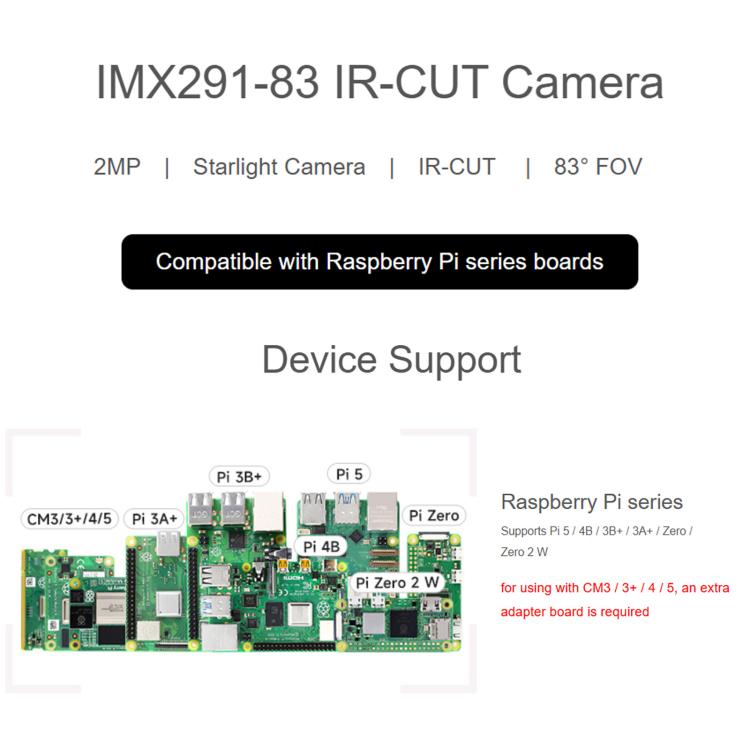

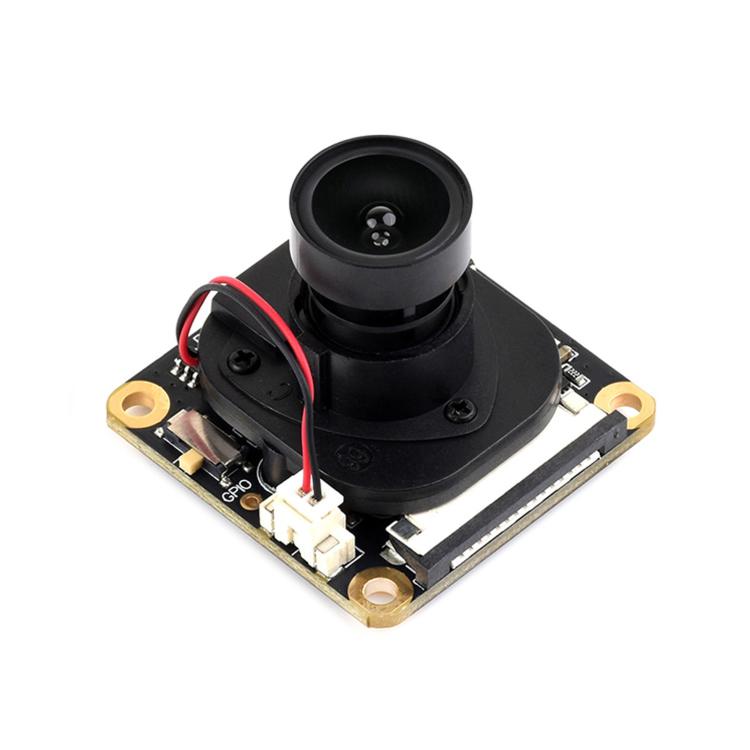

The IMX291-83 IR-CUT Camera features the IMX291 starlight-grade image sensor and is compatible with the full range of Raspberry Pi boards and Compute Modules. It comes standard with an 83-degree lens and 2-megapixel high-definition resolution. Equipped with an onboard IR-CUT dual-filter switcher, it allows for one-touch switching between full-color daytime mode and infrared night vision mode via an onboard DIP switch, ensuring clear and stable imaging day and night.
Specifications:
1. Image Sensor: IMX291
2. CMOS Size: 1/2.8 inch
3. Resolution: 2 Megapixels (1920 × 1080)
4. Aperture: F2.0
5. Focal Length: 3.95mm
6. Diagonal Field of View: 83 degrees
7. Camera Type: Color
8. Focus Type: Fixed focus
9. Distortion: Less than 33%
10. Shutter Type: Rolling shutter
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.13lb
|
| One Package Size |
7cm * 7cm * 5cm / 2.76inch * 2.76inch * 1.97inch
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
47cm * 37cm * 30cm / 18.5inch * 14.57inch * 11.81inch
|
| Loading Container |
20GP: 511 cartons * 180 pcs = 91980 pcs
40HQ: 1186 cartons * 180 pcs = 213480 pcs
|
|
