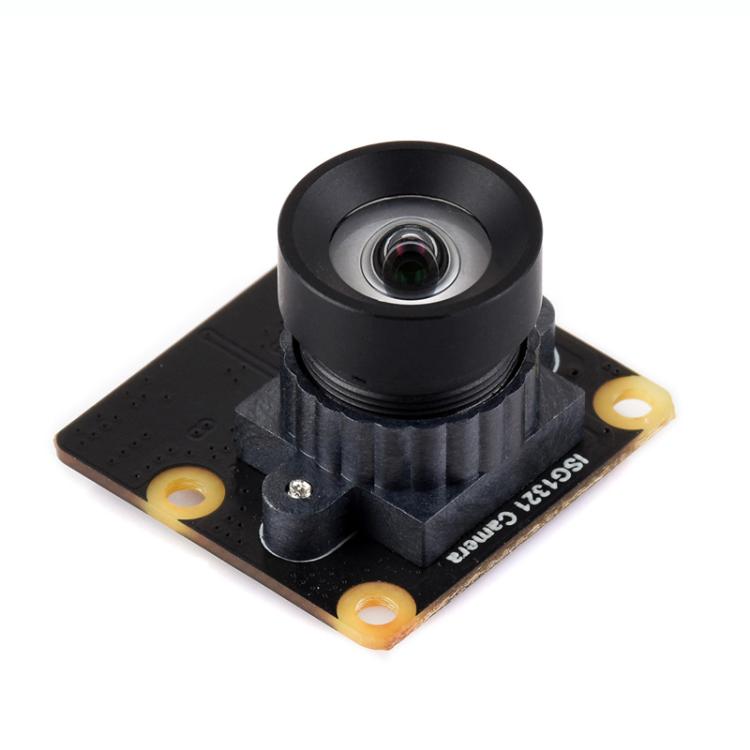

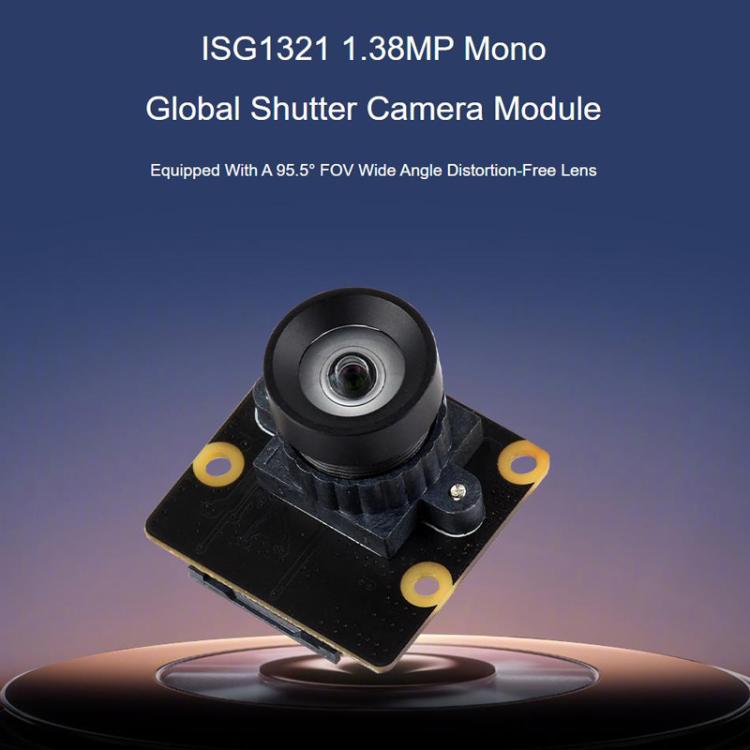

1. Photochip: ISG1321
2. CMOS size: 1/4 inch
3. Camera type: black and white
4. Pixel: 1.38 million (1280 x 1080)
5. Shutter mode: global shutter
6. Output frame rate: up to 120 FPS

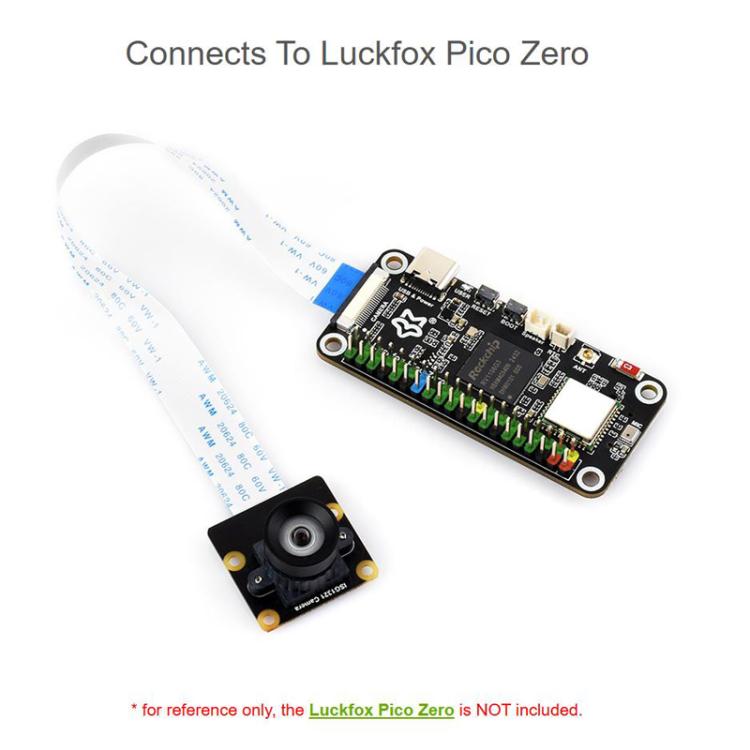

7. Interface: MIPI-CSI (2-lane)
8. Aperture: F2.4
9. Aberration: less than 1%
10. Field of view: 95.5 degrees
11. Focal length: 2.88mm
12. Focus mode: manual focus
13. Application scenarios: machine vision, logistics reading and industrial inspection

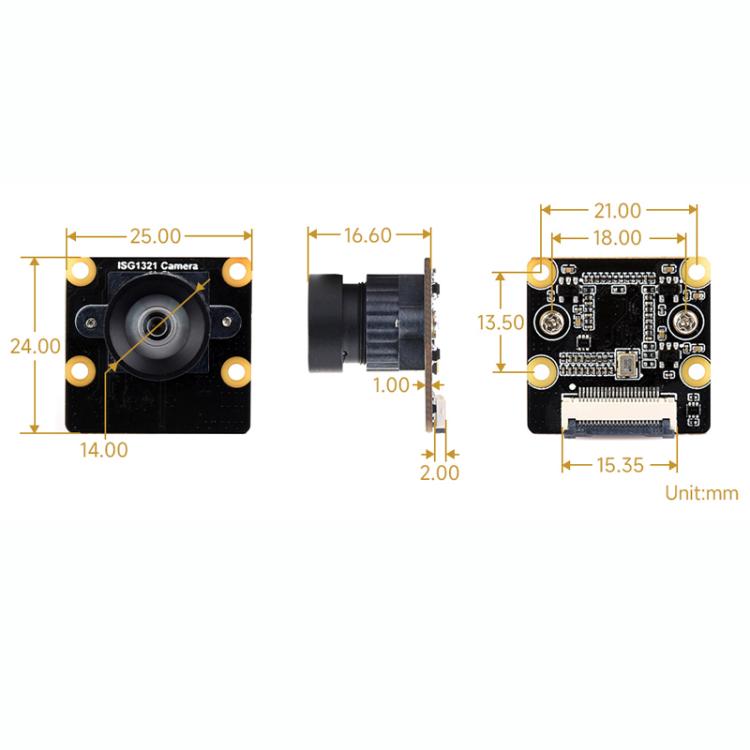

14. Size: about 2.5 x 2.4 x 1.66cm
Features. 1:

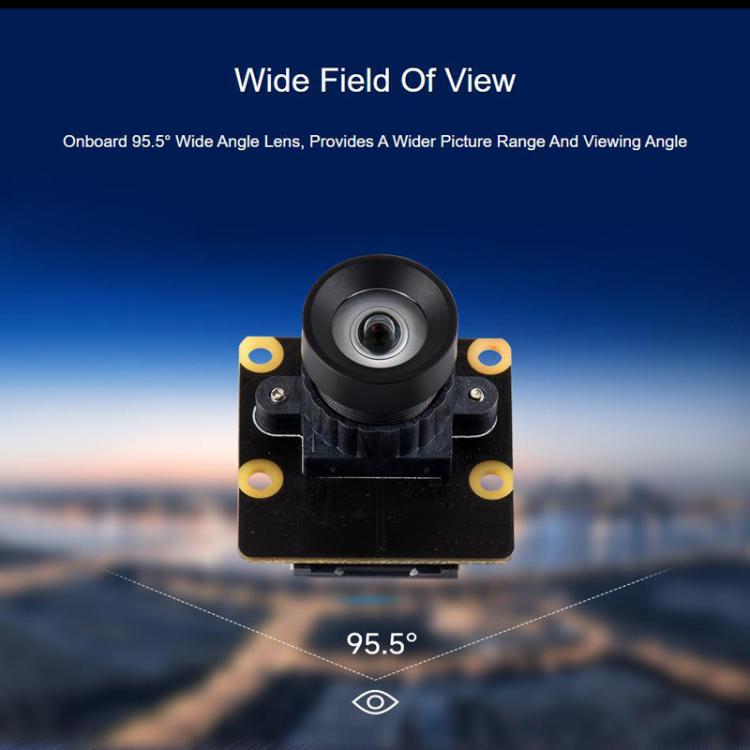

1. Equipped with 95.5 degree wide-angle lens, presenting a wider range of images, no longer limited to a narrow viewing angle

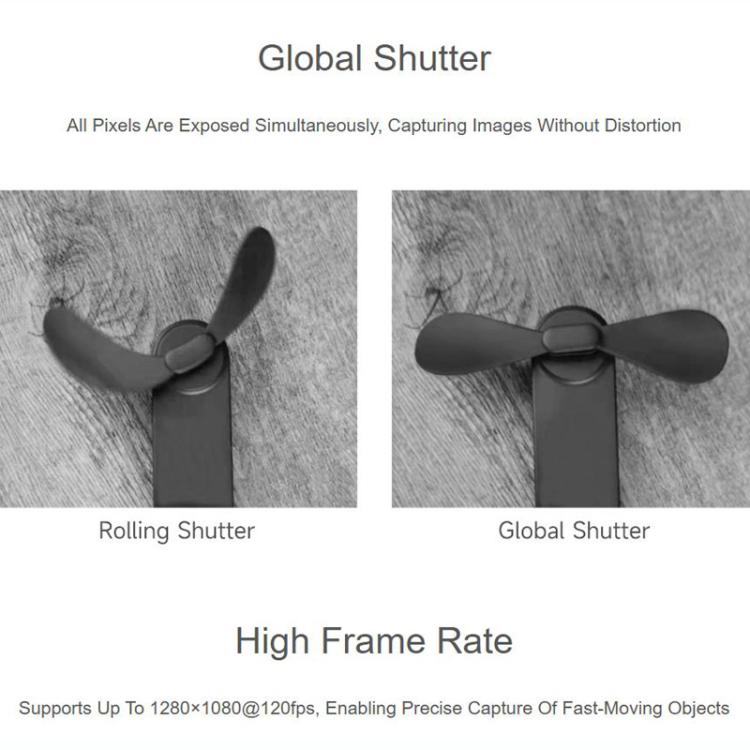

2. Global shutter, all pixels are exposed at the same time, the captured image is not easy to produce distortion.
3. Support up to 1280 x 1080 120fps, accurately capture fast-moving objects
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
6cm * 6cm * 3cm / 2.36inch * 2.36inch * 1.18inch
|
| Carton Weight |
16.60kgs / 36.60lb
|
| Carton Size |
50cm * 38cm * 35cm / 19.69inch * 14.96inch * 13.78inch
|
| Loading Container |
20GP: 401 cartons * 520 pcs = 208520 pcs
40HQ: 930 cartons * 520 pcs = 483600 pcs
|
|
