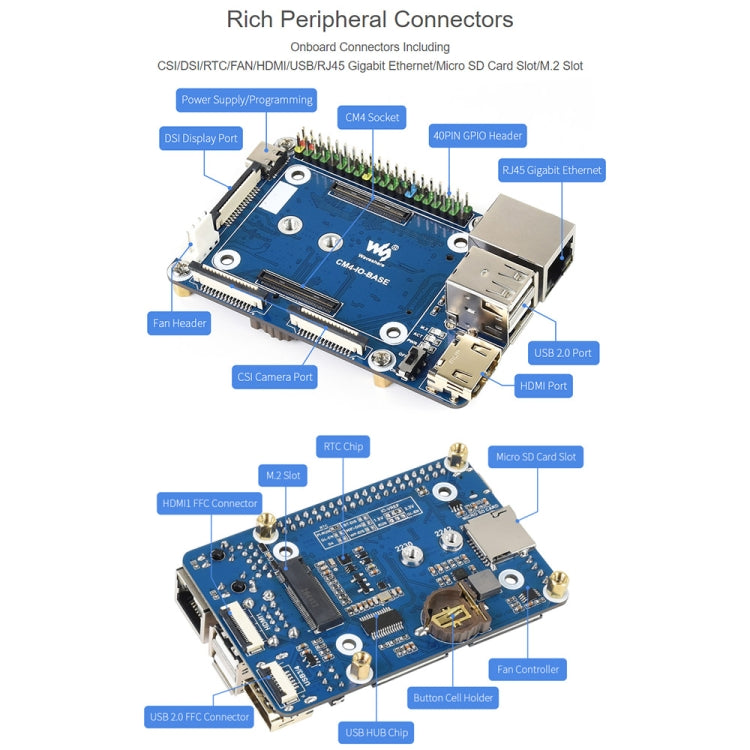

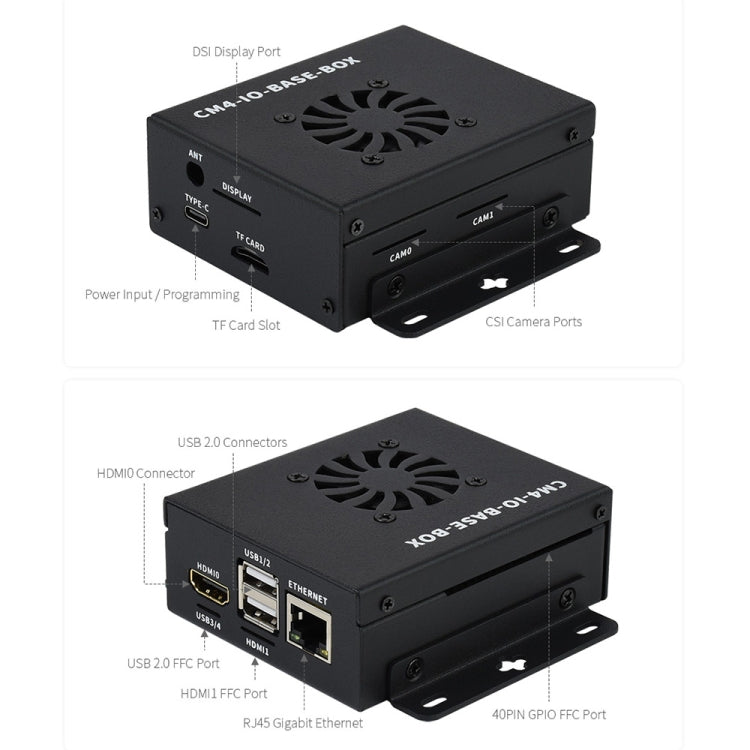

Specification1. USB:
- USB 2.0 x 2
- USB 2.0 x 2 (via FFC connector)
2. GPIO: Raspberry Pi 40 PIN GPIO x 1
3. Header: M.2 slot x 1
4. HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output
5. DSI display: MIPI DSI x 1 (15pin 1.0mm FPC)
6. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
7. Power input: 5V
8. FAN: 5V / 12V (no fan control)
9. RJ45 Ethernet: Gigabit Ethernet

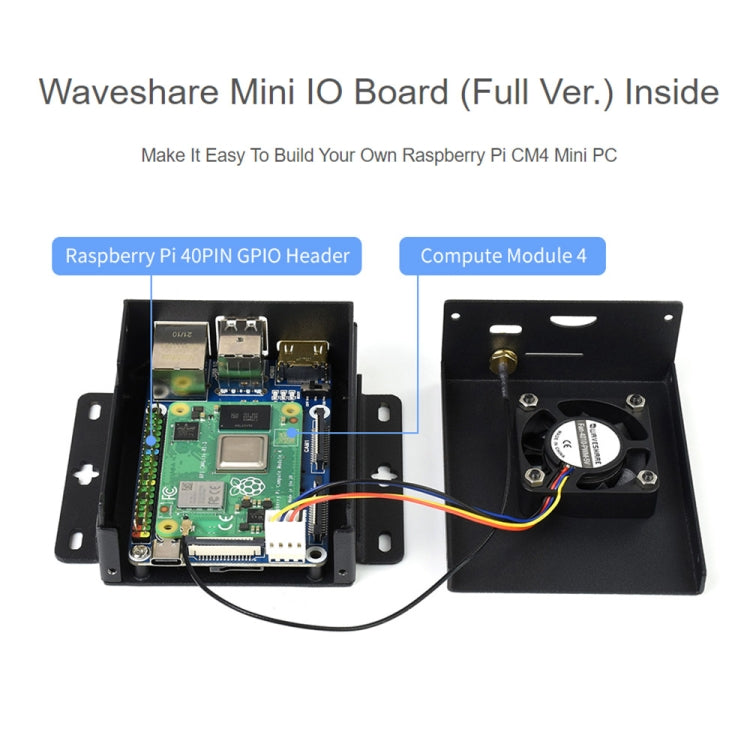

10. CM4 slot: Suitable for all variants of Compute Module 4
11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

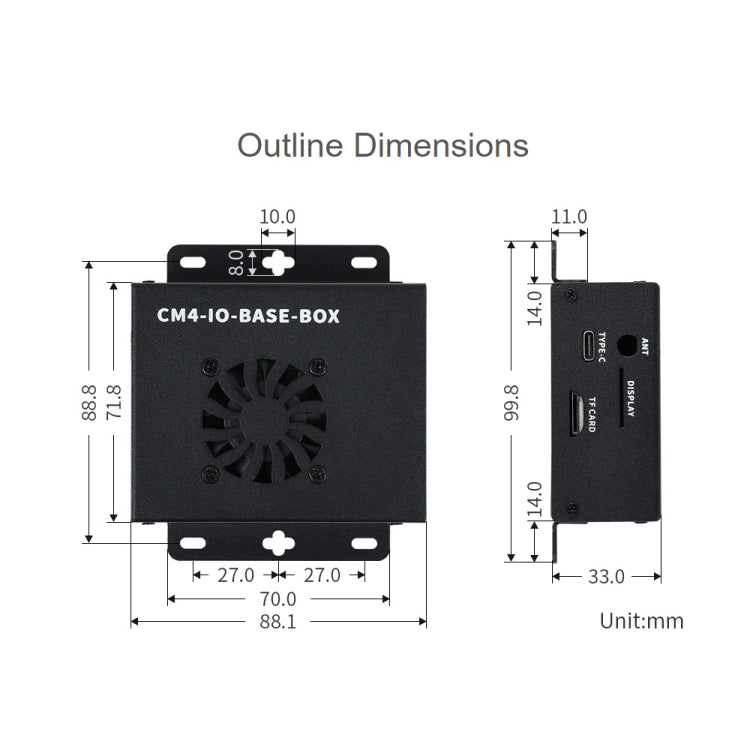

12. Size: 85.0 x 56.0mm
Package List1. CM4-IO-BASE-B x 1
2. Metal case (top and bottom) x 1

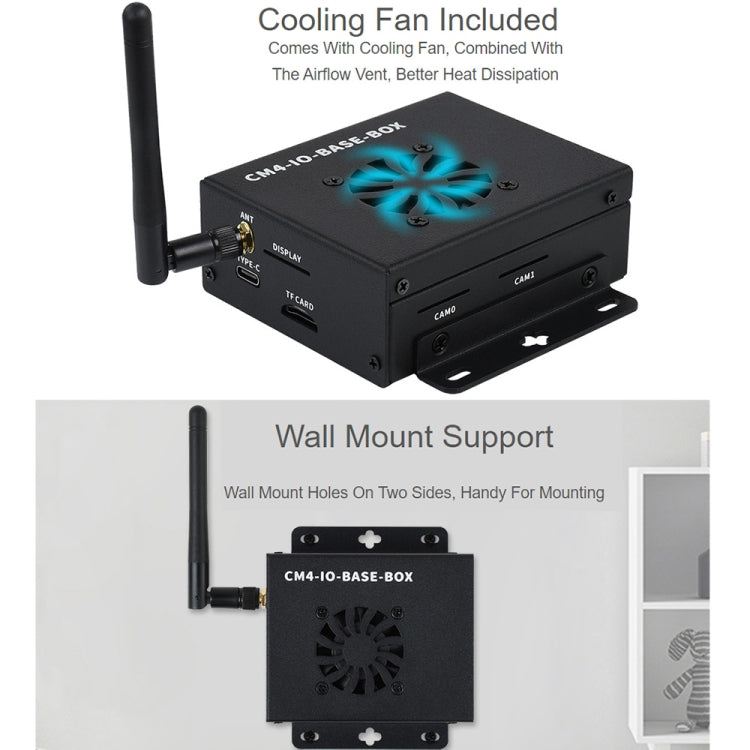

3. Fan-4010-PWM-5V x 1
4. Screwdriver x 1
5. Screws pack x 1
6. 5V 3A USB-C power adapter x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.46kgs / 1.01lb
|
| One Package Size |
16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch
|
| Carton Weight |
16.50kgs / 36.38lb
|
| Carton Size |
50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch
|
| Loading Container |
20GP: 617 cartons * 40 pcs = 24680 pcs
40HQ: 1432 cartons * 40 pcs = 57280 pcs
|
|
