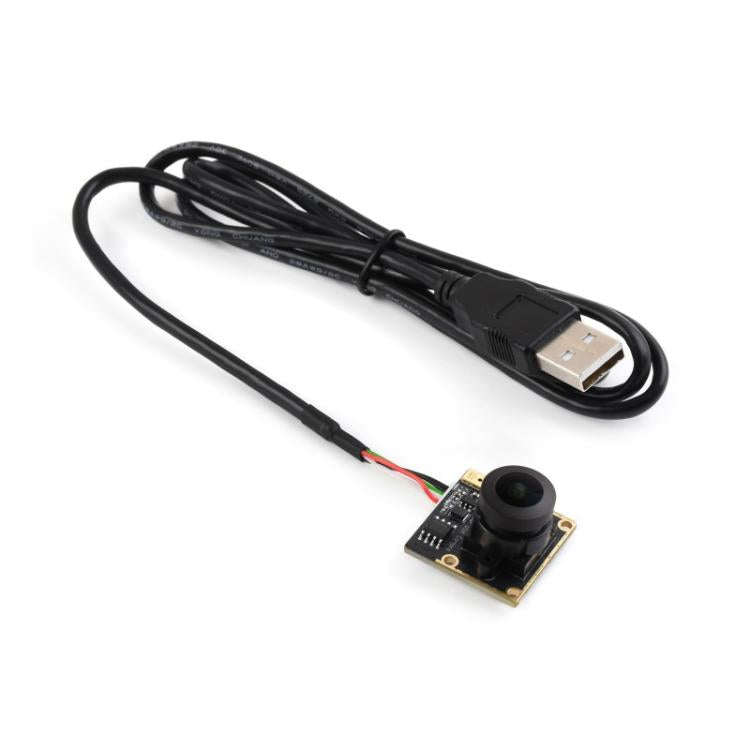

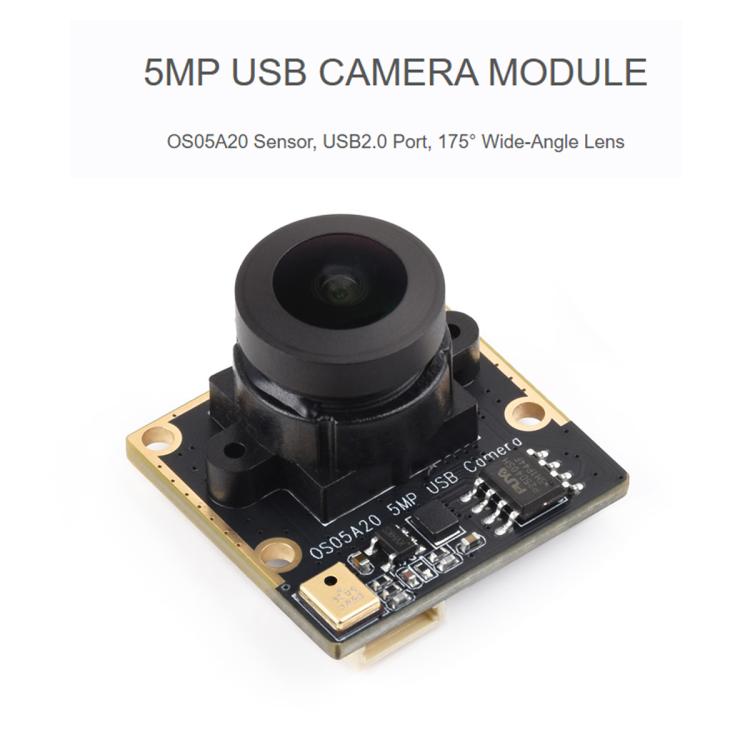

1. OS05A20 5MP USB Camera module, equipped with an OS05A20 5-megapixel sensor chip. The module features a USB 2.0 Type-C interface, plug-and-play, and supports MJPG format 30 FPS output.

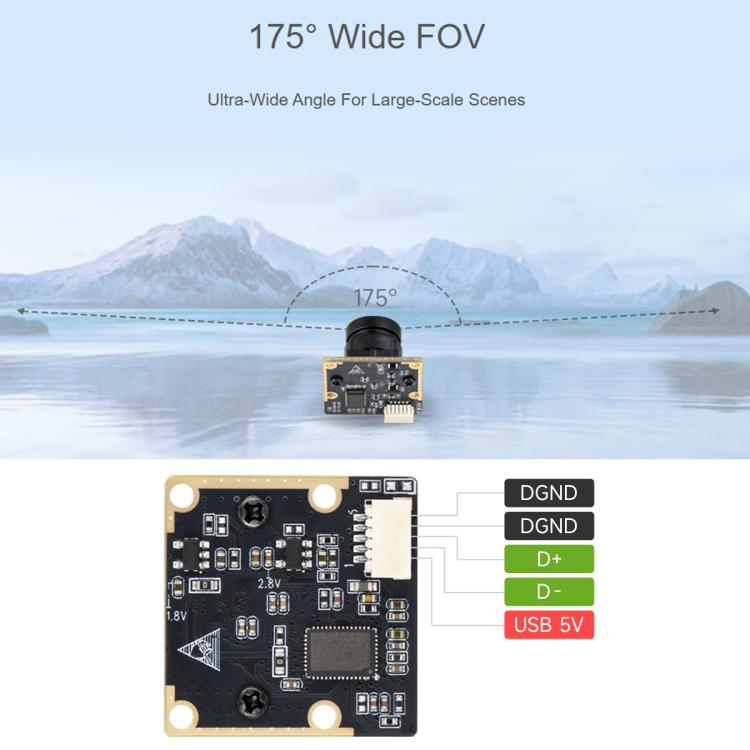

2. Equipped with a 175-degree ultra-wide-angle lens to capture wide scenes.
3. Supports dual-exposure on-chip HDR, maintaining image detail even in low-light environments.

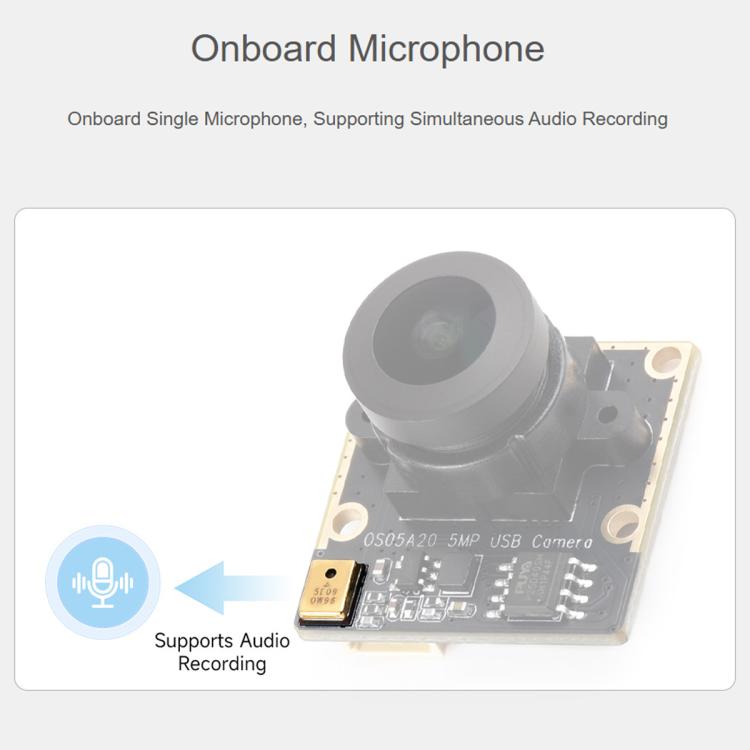

4. Onboard single microphone, supporting USB audio recording.
Specifications:
1. Pixels: 5 MP
2. Sensor chip: OS05A20
3. Interface type: USB 2.0
4. Camera:
-- Sensor size: 1/2.7 inch
-- Aperture (F): 2.0
-- Focal length (EFL): 3.65 mm
-- Field of view (FOV): 175 deg (D) x 151.9 deg (H) x 83.6 deg (V)
-- Distortion: < -32%
-- Focusing method: Fixed focus
5. Lens thread: M12
6. Shutter type: Rolling shutter
7. Image:
-- Supported format: MJPG
-- Still image resolution: 2592 x 1944
8. Video recording support:
-- 20 FPS 2592 x 1944
-- 30 FPS 1920 x 1080
-- 30 FPS 1280 x 720
9. Dynamic range: 74 dB
10. Operating voltage: 5V +/- 5%
11. Operating temperature: -10 to 60 degrees C

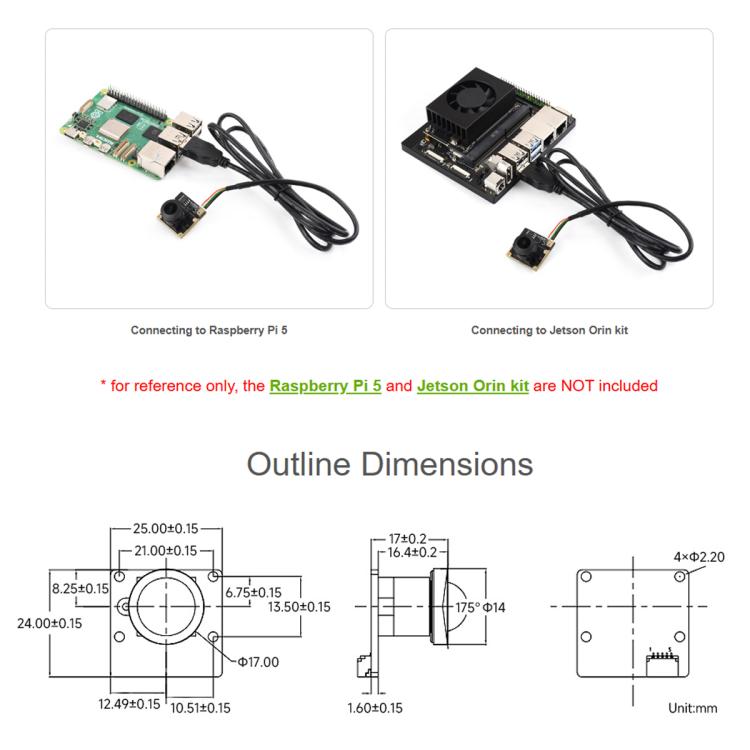

12. Module dimensions: 25 x 24 (mm)
Specification:
|
Package Weight
|
| One Package Weight |
0.07kgs / 0.16lb
|
| One Package Size |
15cm * 8cm * 5cm / 5.91inch * 3.15inch * 1.97inch
|
| Carton Weight |
5.60kgs / 12.35lb
|
| Carton Size |
32cm * 34cm * 42cm / 12.6inch * 13.39inch * 16.54inch
|
| Loading Container |
20GP: 583 cartons * 64 pcs = 37312 pcs
40HQ: 1354 cartons * 64 pcs = 86656 pcs
|
|
