Specifications:
1. Resolution: 4 Megapixels
2. Image Sensor: OV4689

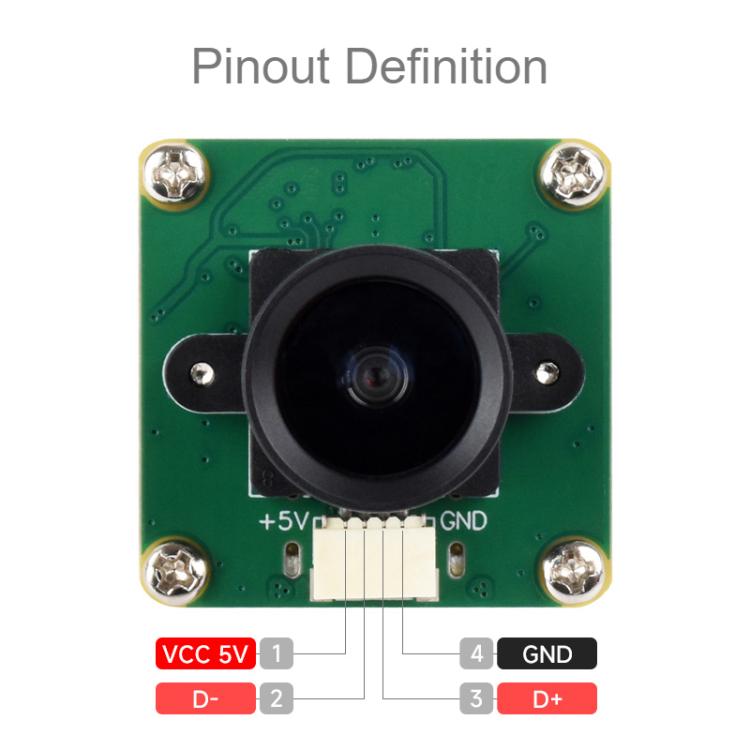

3. Interface Type: USB 2.0 Type-C / SH1.0 4-pin connector
4. Lens Mount: M12
5. Operating Voltage: 5V +/-5%
6. Operating Temperature: -10 ~ 60 degrees Celsius

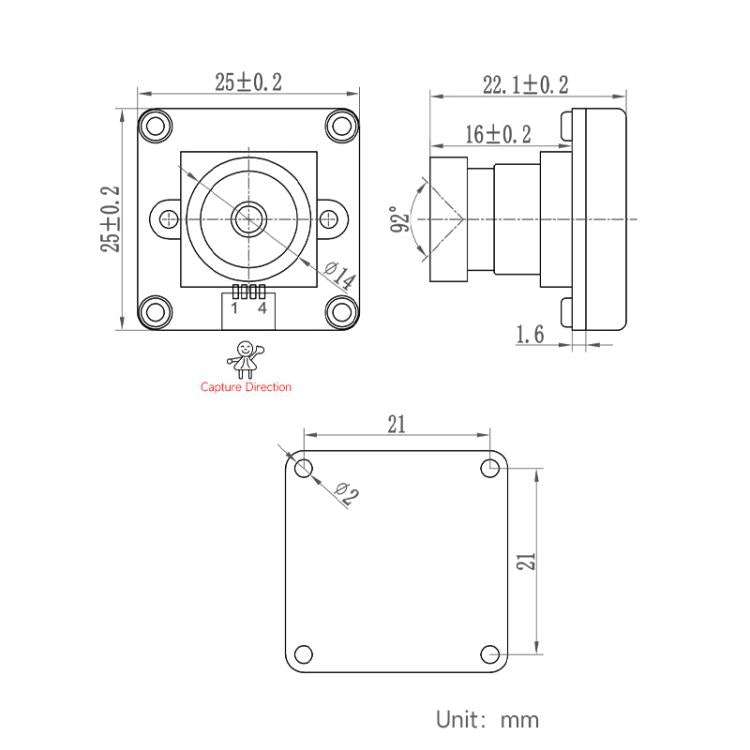

7. Module Dimensions: 25 × 25 mm
Camera:
--Sensor Size: 1/3 inch
--Aperture (F): 2.7
--Focal Length (EFL): 2.88mm
--Field of View (FOV): 92-degree
--Distortion: Less than -0.2%
--Focus Type: Fixed focus
Image:
1. Supported Formats: MJPG, YUY2
2. Still Image Resolution: 2688 × 1520
3. Video Recording Support:
MJPG:
30 FPS at 2688 × 1520
30 FPS at 2560 × 1440
60 FPS at 1920 × 1080
60 FPS at 1280 × 720
60 FPS at 640 × 480
YUY2:
2 FPS at 2688 × 1520
2 FPS at 2560 × 1440
5 FPS at 1920 × 1080
10 FPS at 1280 × 720
30 FPS at 640 × 480
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.10lb
|
| One Package Size |
8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch
|
| Carton Weight |
5.00kgs / 11.02lb
|
| Carton Size |
37cm * 30cm * 30cm / 14.57inch * 11.81inch * 11.81inch
|
| Loading Container |
20GP: 800 cartons * 100 pcs = 80000 pcs
40HQ: 1859 cartons * 100 pcs = 185900 pcs
|
|
