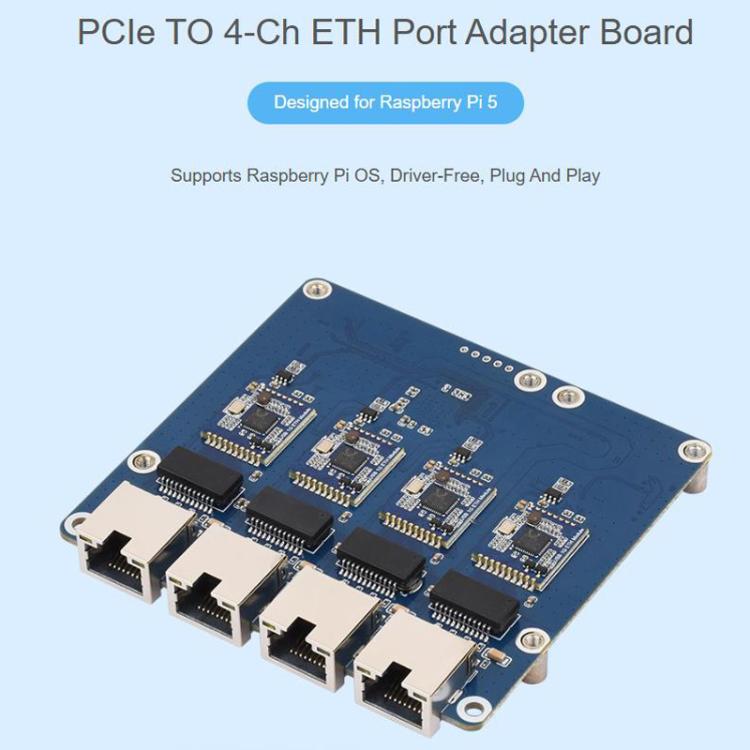

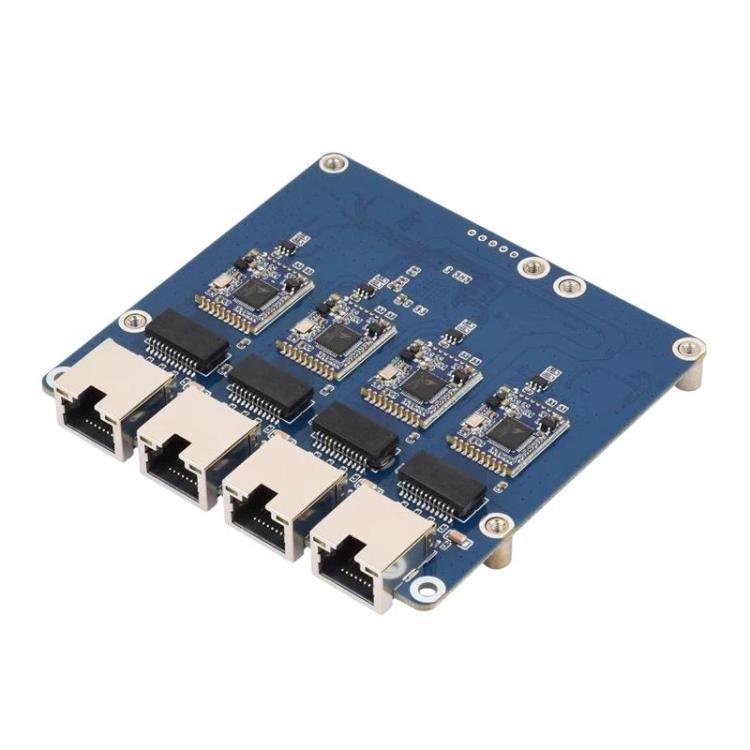

Name: Waveshare PCIe To 4-Ch ETH Port Adapter Board Supports Raspberry Pi OS, Driver-Free, Plug And Play, Version: 2.5G ETH
Brand: MiOT Store
SKU: TBD0606708302
Price: 61.04 USD
Availability: InStock

TBD0606708302.jpg@f7a6d7f022e49335450e35a8fd0c450b

TBD06067083_B1.jpg@fecfed6ed14406fe0e0e9690442a4686

TBD06067083_B2.jpg@370babd642f15694324c06da9c251bcc

TBD06067083_B3.jpg@5d7853871ee4d2621372daf08a317dc8

TBD06067083_B4.jpg@a19e4ec16a79507e4020ea2210319949

TBD06067083_B5.jpg@d515ab683c9b7ad1e0bf7ea1f99050d7

Roll over image to zoom in Click on image to zoom

1. Main control chip: Gigabit ETH: RTL8153; 2.5G ETH: RTL8156
2. Expansion chip: VL805
3. Network port type: RJ45 port

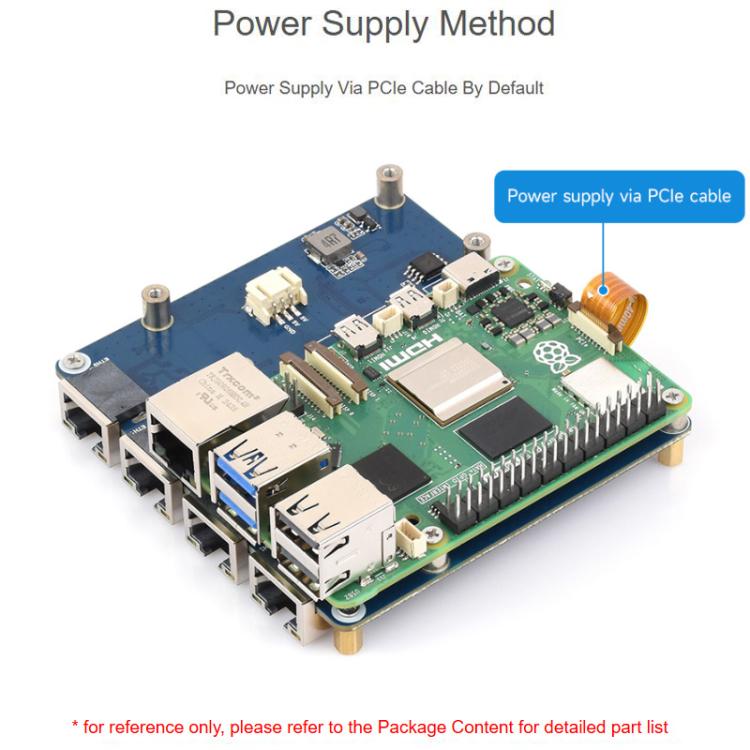

4. Power supply: 5V
5. Network standards: Gigabit ETH: 10/100/1000Mbps; 2.5G ETH: 10/100/1000/2500Mbps
6. Status indicator light: green light always on, yellow light flashes

Packaging list:
- Adapter x 1

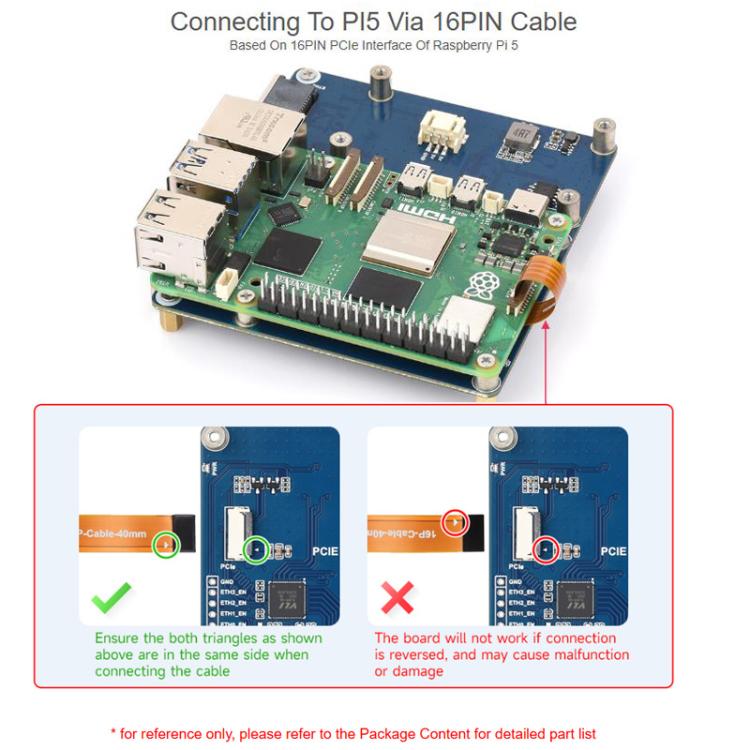

- 16P-Cable-40mm x 1
- Screw cap x 1

Specification:

Package Weight

One Package Weight

0.09kgs / 0.21lb

One Package Size

14cm * 12cm * 4cm / 5.51inch * 4.72inch * 1.57inch

Qty per Carton

Carton Weight

8.00kgs / 17.64lb

Carton Size

50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch

Loading Container

20GP: 467 cartons * 72 pcs = 33624 pcs
40HQ: 1086 cartons * 72 pcs = 78192 pcs
