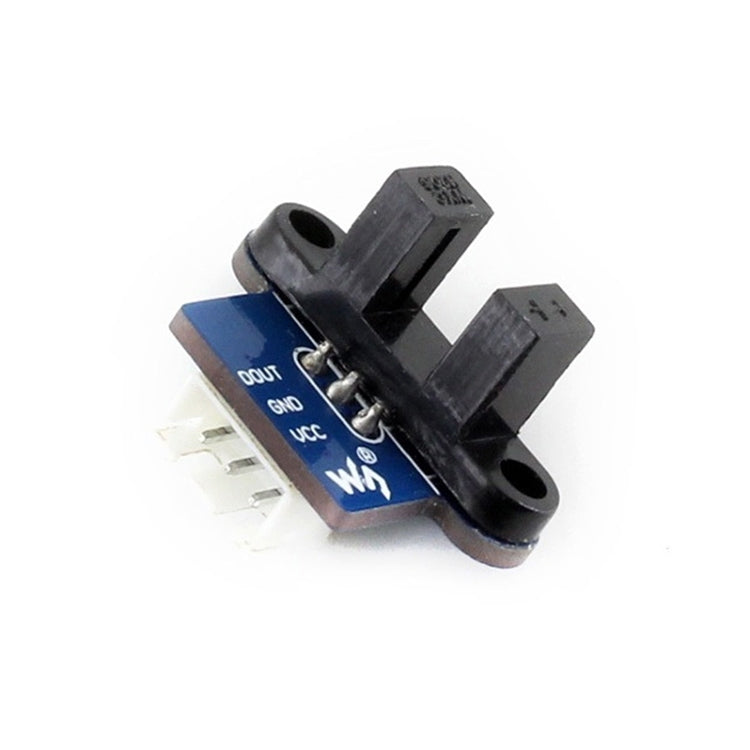

Overview
1. Infrared detection, eliminating the interferences of external stray light

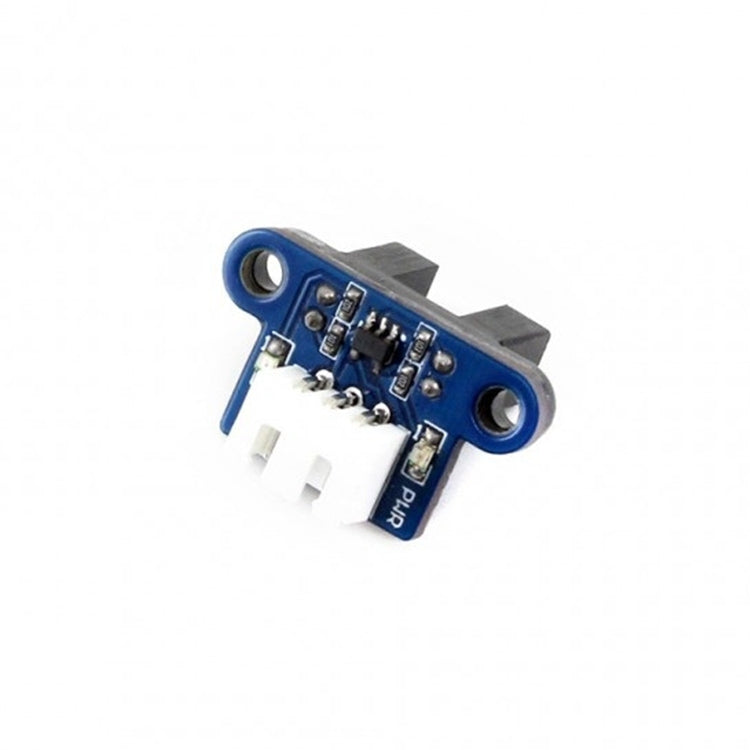

2. Schmitt trigger, stable wave form and signals

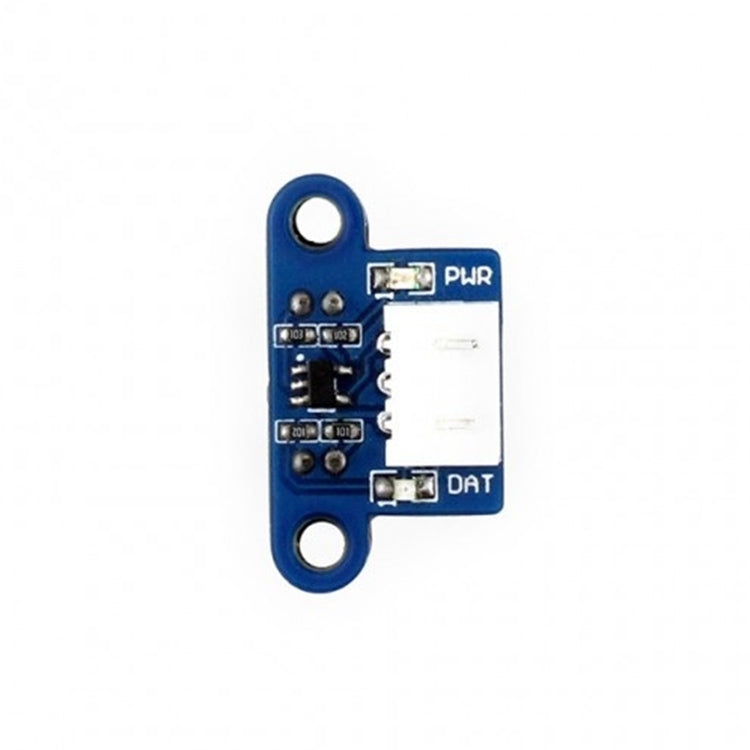

3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 26.8mm × 15mm × 18.7mm
3. Mounting holes size: 3mm
4. Gap width: 6mm
Applications

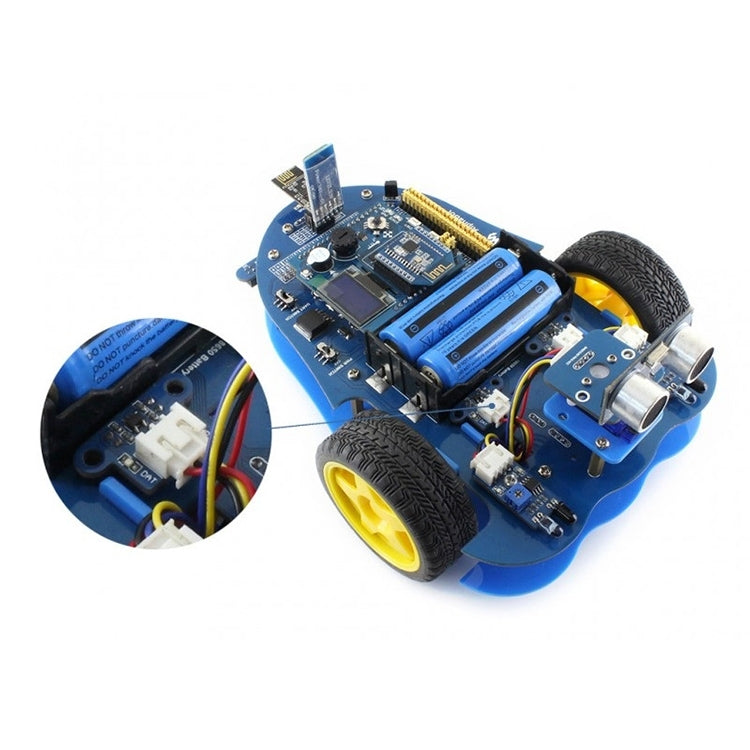

- Motor speed detection
- Pulse counter
How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5V
- GND ↔ GND
- DOUT ↔ MCU.IO (digital output)
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.03lb
|
| One Package Size |
6cm * 4cm * 4cm / 2.36inch * 1.57inch * 1.57inch
|
| Carton Weight |
10.00kgs / 22.05lb
|
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
|
| Loading Container |
20GP: 277 cartons * 1000 pcs = 277000 pcs
40HQ: 644 cartons * 1000 pcs = 644000 pcs
|
|
