1. Protection circuits: short-circuit/over-voltage/over-current protection, etc.
2. Input parameters: AC 100V - 240V 50Hz / 60Hz 1.5A Max, no-load low standby power consumption
3. Output parameters: DC 19V 3.5A, ripple 190mVpp
4. 5.5mm outer diameter, 2.5mm inner diameter, DC jack
5. Cable length: about 1.5m

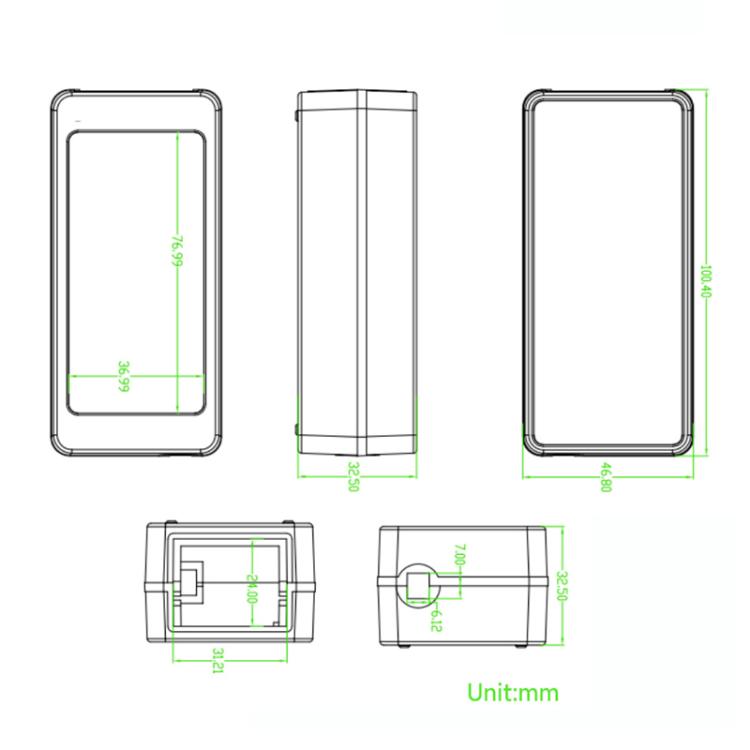

6. Size: about 10 x 4.68 x 3.25cm
Specification:
|
Package Weight
|
| One Package Weight |
0.30kgs / 0.67lb
|
| One Package Size |
12cm * 10cm * 5cm / 4.72inch * 3.94inch * 1.97inch
|
| Carton Weight |
25.00kgs / 55.12lb
|
| Carton Size |
50cm * 37cm * 32cm / 19.69inch * 14.57inch * 12.6inch
|
| Loading Container |
20GP: 450 cartons * 80 pcs = 36000 pcs
40HQ: 1045 cartons * 80 pcs = 83600 pcs
|
|
