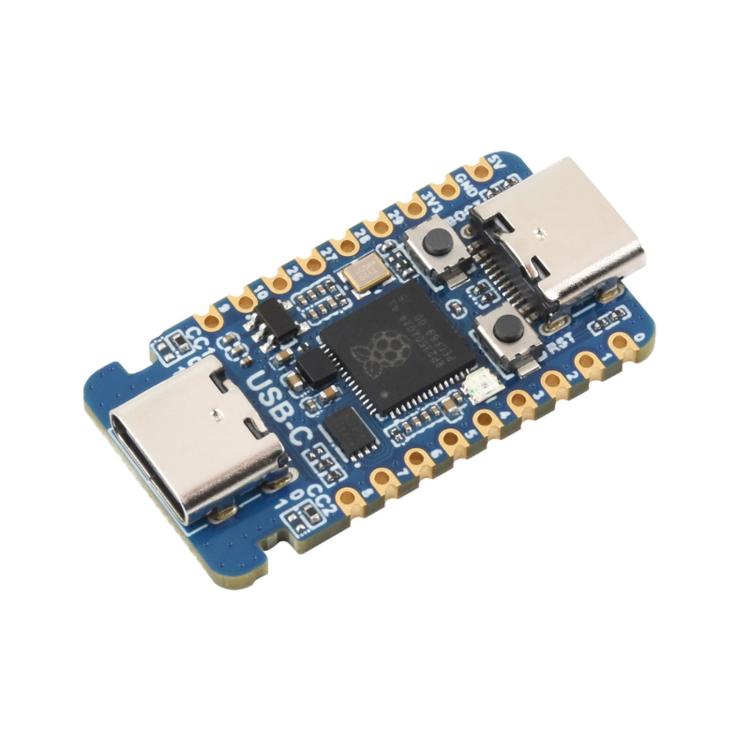

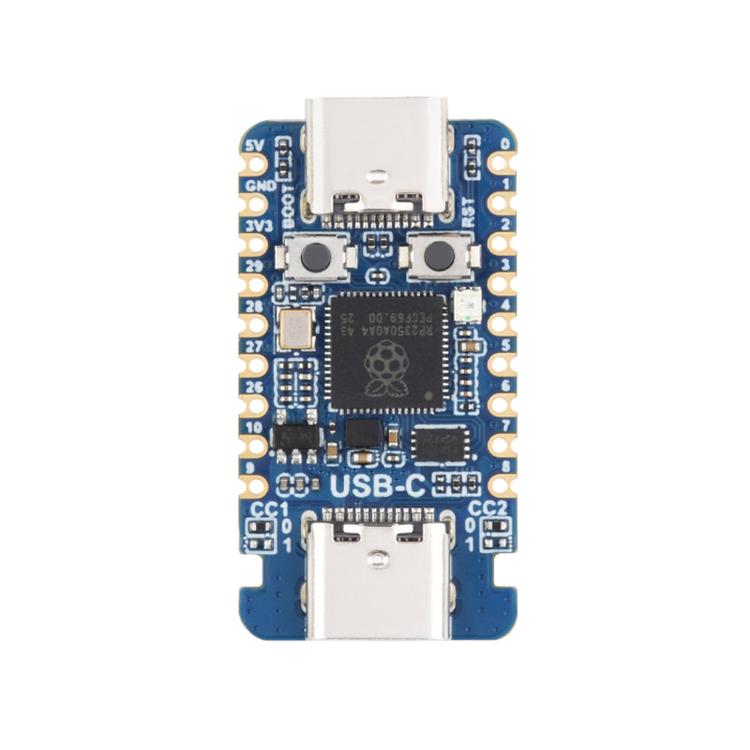

1. Features the RP2350A microcontroller chip developed by Raspberry Pi
2. Unique dual-core, dual-architecture design with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both running at up to 150MHz, enabling flexible switching between architectures
3. Built-in 520KB SRAM and 2MB on-chip Flash memory
4. Equipped with a Type-C interface for plug-and-play convenience without worrying about orientation
5. Supports power delivery via Type-C interface (compatible with PD protocol)

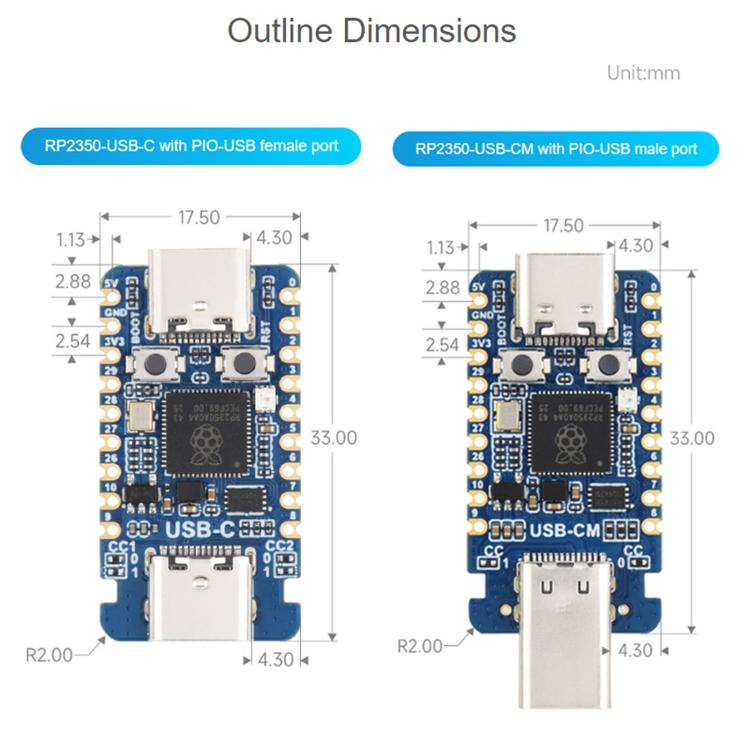

6. Designed with postage stamp holes for direct soldering onto custom-designed baseboards
7. Supports USB 1.1 host and device modes
8. Offers low-power sleep and hibernate modes
9. Can be recognized as mass storage over USB, enabling drag-and-drop program downloading

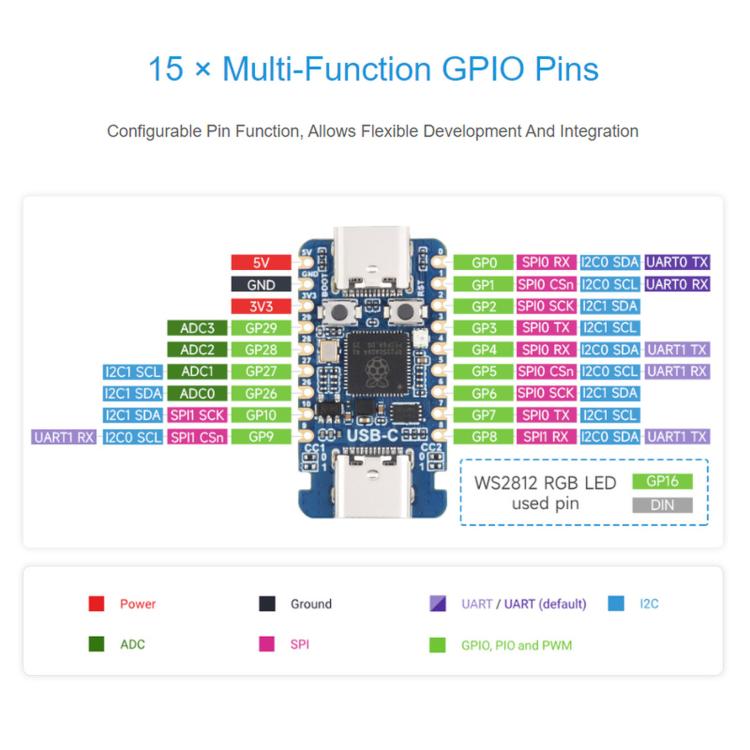

10. Exposes all 15 GPIO pins of the RP2350A
11. Includes 2 SPI interfaces, 2 I2C interfaces, 2 UARTs, 4 12-bit ADCs, and 14 controllable PWM channels
12. Precise on-chip clock and timer system
13. Integrated temperature sensor for real-time chip temperature monitoring
14. 12 programmable I/O (PIO) state machines for custom peripheral support
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
6cm * 4cm * 3cm / 2.36inch * 1.57inch * 1.18inch
|
| Carton Weight |
40.70kgs / 89.73lb
|
| Carton Size |
50cm * 38cm * 35cm / 19.69inch * 14.96inch * 13.78inch
|
| Loading Container |
20GP: 401 cartons * 792 pcs = 317592 pcs
40HQ: 930 cartons * 792 pcs = 736560 pcs
|
|
