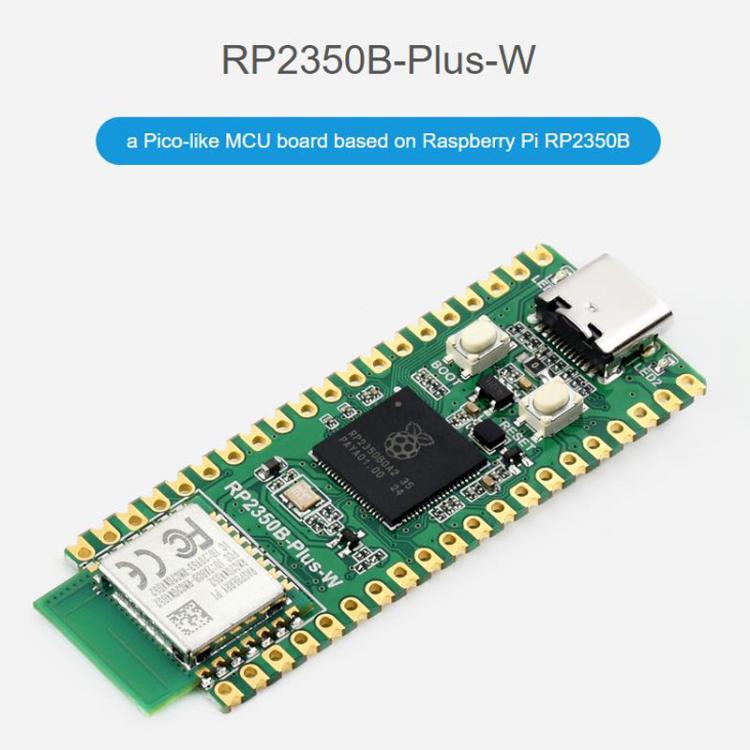

1. RP2350B microcontroller chip designed for Raspberry Pi
2. Unique dual-core, dual-architecture design featuring dual-core ARM Cortex-M33 processors and dual-core Hazard3 RISC-V processors, each clocked at up to 150MHz, enabling flexible switching between architectures

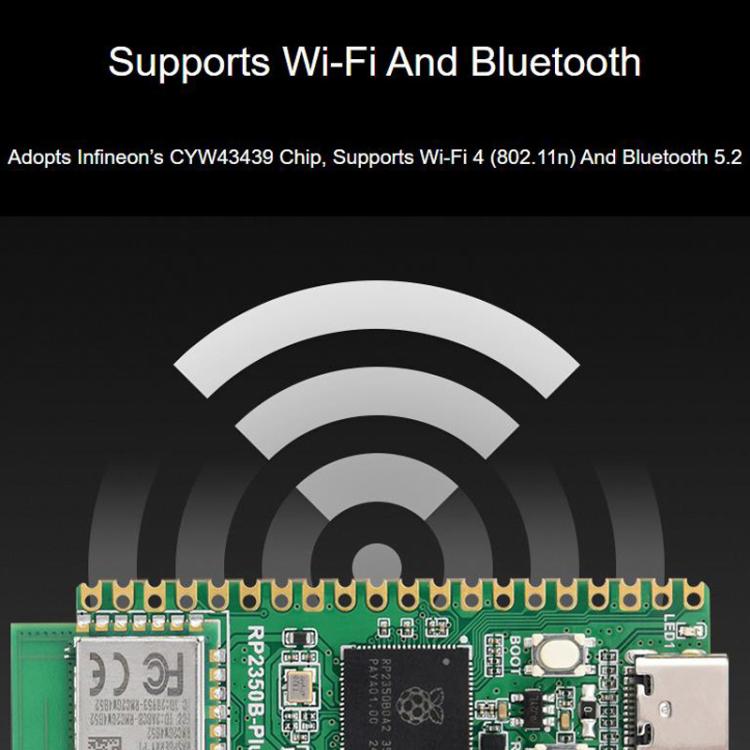

3. Equipped with the Raspberry Pi Radio Module 2, supporting Wi-Fi 4 wireless networking and Bluetooth 5.2
4. Features 520KB of SRAM and 16MB of on-chip Flash, with a reserved PSRAM interface
5. Utilizes a Type-C interface, eliminating orientation concerns
6. Supports USB 1.1 host and device functionality
7. Supports low-power sleep and hibernation modes
8. USB mass storage mode for drag-and-drop program downloads
9. 41 versatile GPIO pins
10. 1 HSTX, 2 SPI, 2 I2C, 2 UART, 6 12-bit ADCs, and 22 controllable PWM channels
11. Precise on-chip clock and timers
12. Temperature sensor
13. On-chip accelerated floating-point library
14. 12 programmable I/O (PIO) state machines for custom peripheral support
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
9cm * 4cm * 3cm / 3.54inch * 1.57inch * 1.18inch
|
| Carton Weight |
17.00kgs / 37.48lb
|
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 412 cartons * 512 pcs = 210944 pcs
40HQ: 958 cartons * 512 pcs = 490496 pcs
|
|
