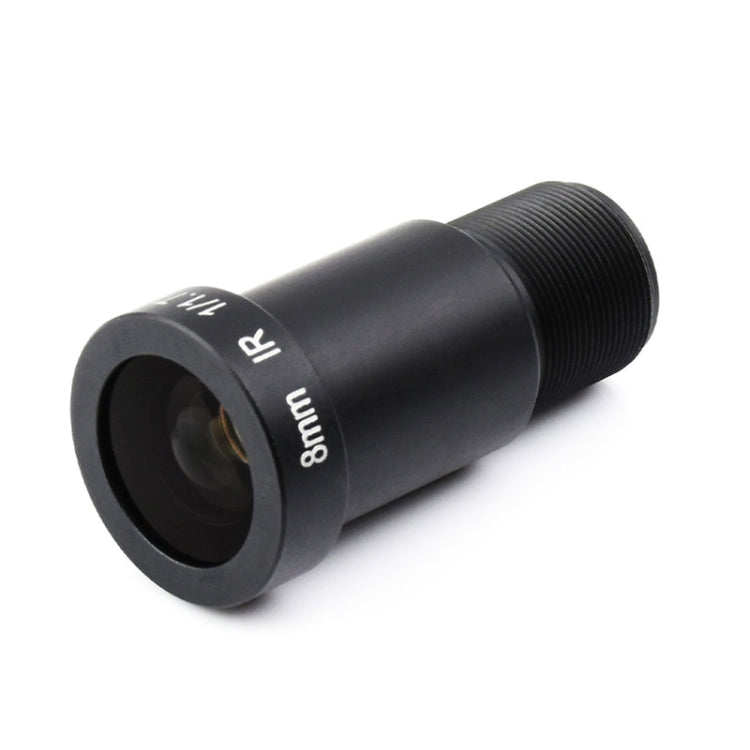

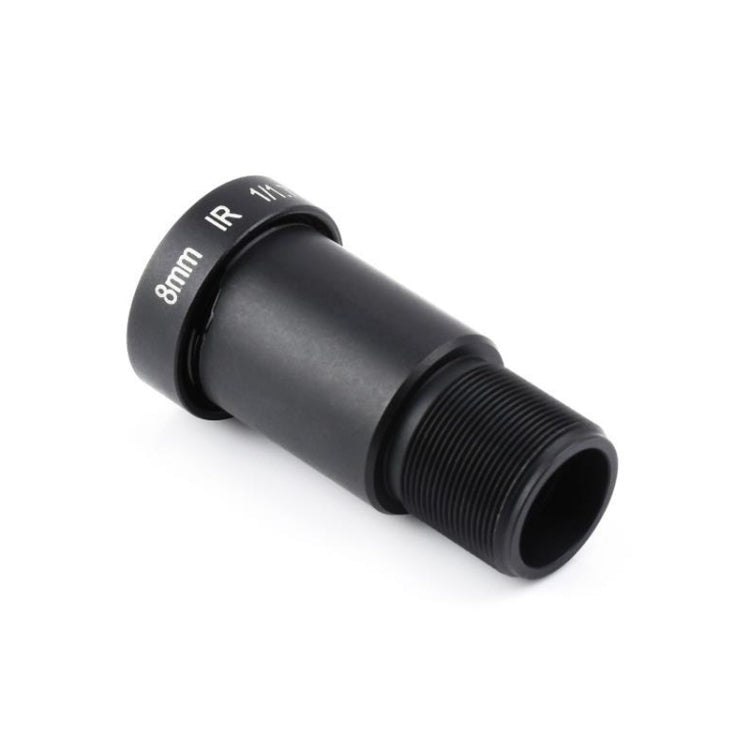

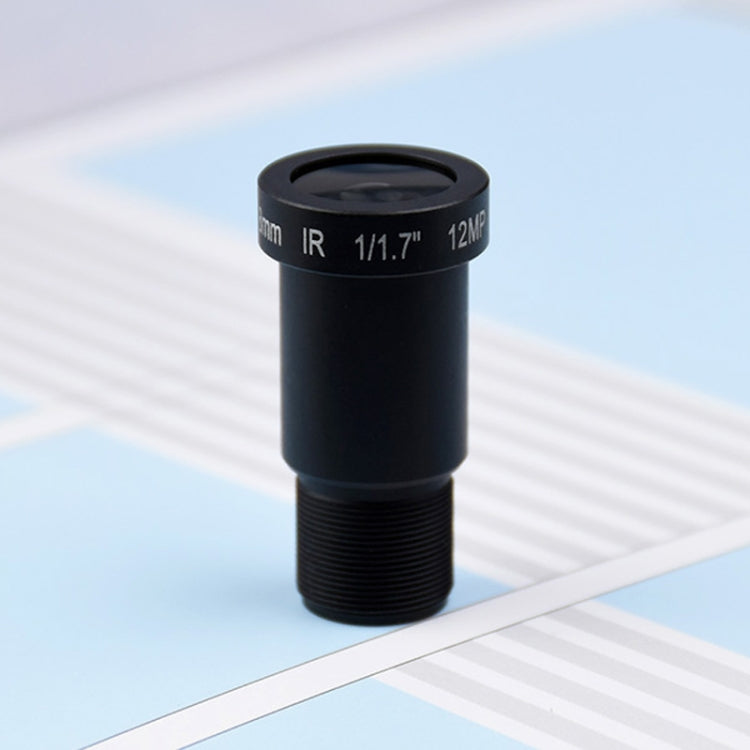

Name: Waveshare WS0698012 For Raspberry Pi M12 High Resolution Lens, 12MP, 69.5 Degree FOV, 8mm Focal Length, 23968
Brand: MiOT Store
SKU: TBD01283838
Price: 22.24 USD
Availability: InStock

TBD01283838.jpg@f82189d566ce74af0275a51d9a56d8bf

TBD01283838_1.jpg@6ff6c5e36cb3689adc5d217db849c62a

TBD01283838_2.jpg@c00e9c36f6ac1b83185d01218c28973e

TBD01283838_3.jpg@4cc4b5a3012b4c23558102f2838b52ee

TBD01283838_4.jpg@56d4065c1a2bd97da8fbc4c837b0e497

Roll over image to zoom in Click on image to zoom

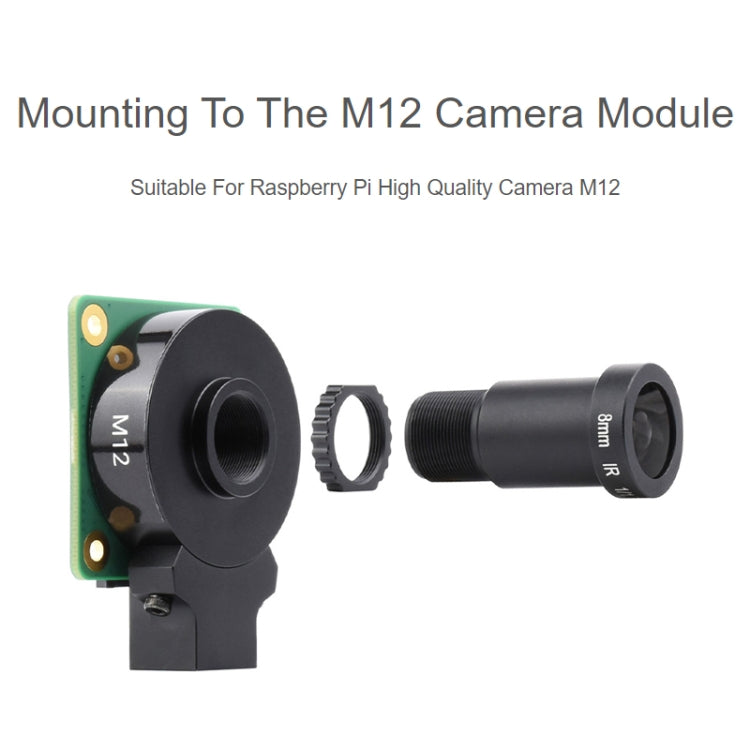

1. For Raspberry Pi M12 camera
2. Resolution: 12MP
3. Focal length: 8mm
4. Aperture (F/NO): 1.8

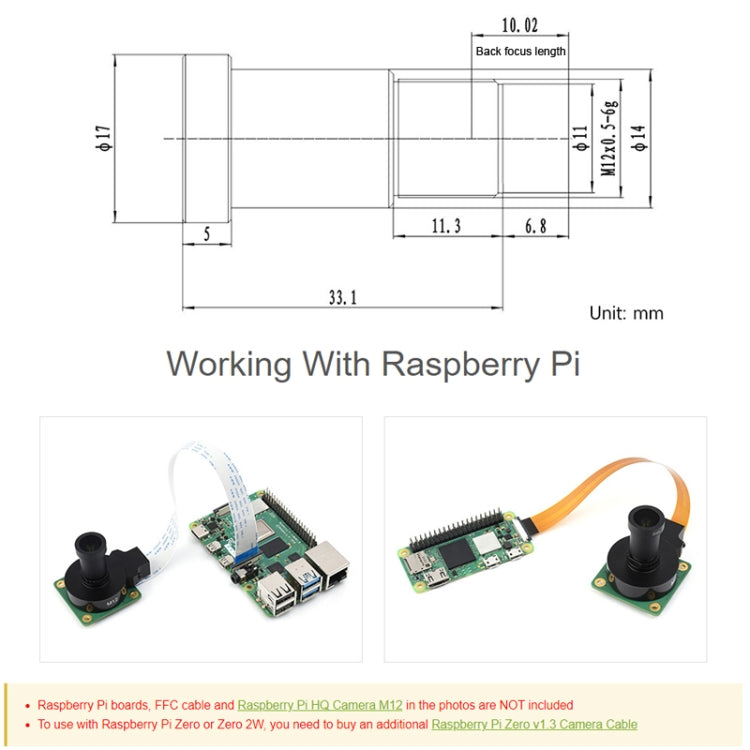

5. Back focus length: 10.02mm
6. Distortion: less than -15.68%
7. Mounting: M12 x P0.5
8. Construction: 8G+IR
9. Field of view:
- Image format: 1/1.8 inch
- Diagonal: 69.5 degrees
- Horizontal: 55.6 degrees
- Vertical: 40.3 degrees
10. Weight: about 12g

Specification:

Package Weight

One Package Weight

0.02kgs / 0.05lb

One Package Size

8cm * 4cm * 1cm / 3.15inch * 1.57inch * 0.39inch

Qty per Carton

500

Carton Weight

12.00kgs / 26.46lb

Carton Size

30cm * 50cm * 40cm / 11.81inch * 19.69inch * 15.75inch

Loading Container

20GP: 444 cartons * 500 pcs = 222000 pcs
40HQ: 1031 cartons * 500 pcs = 515500 pcs
