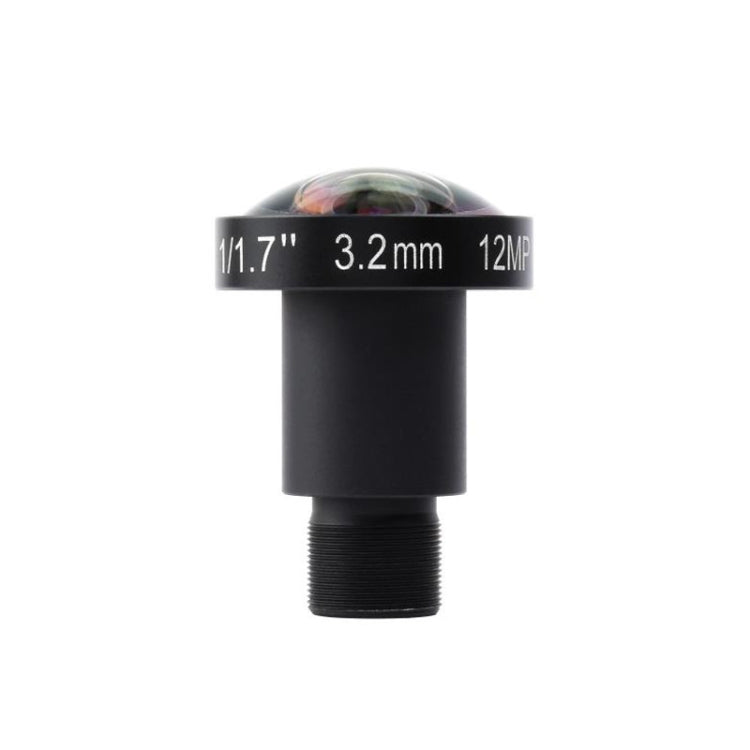

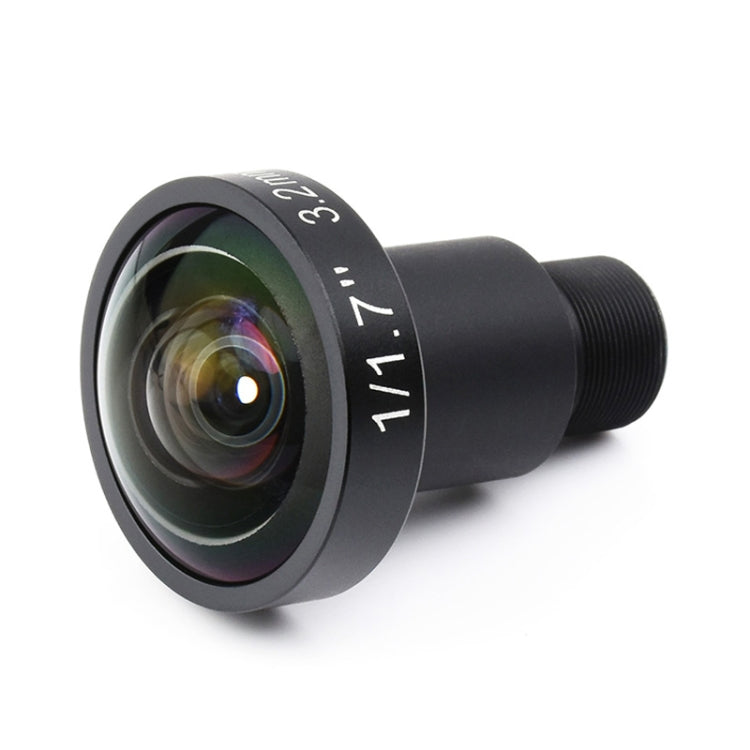

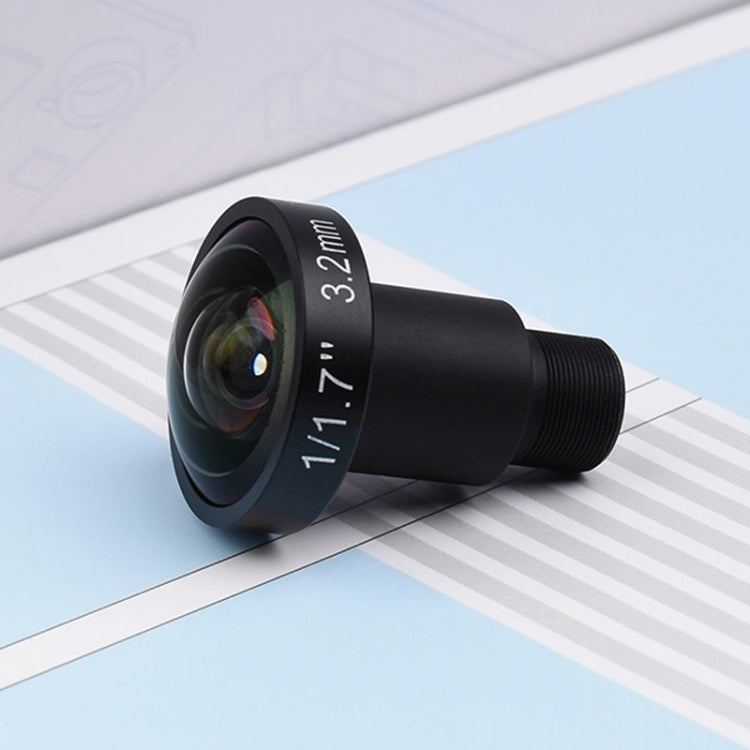

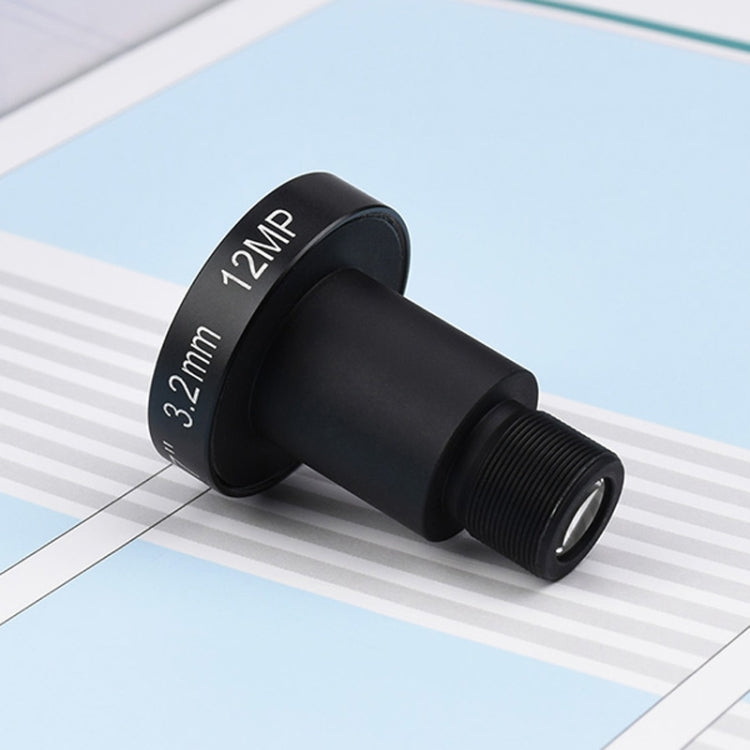

Name: Waveshare WS1603212 For Raspberry Pi M12 High Resolution Lens, 12MP, 160 Degree FOV, 3.2mm Focal Length, 23967
Brand: MiOT Store
SKU: TBD01283815
Price: 22.24 USD
Availability: InStock

TBD01283815.jpg@76f3f551631e2ca3a41b35d14dcf3a82

TBD01283815_1.jpg@34db67aa8489415d800305bbfc8cbf55

TBD01283815_2.jpg@f2b01c4945daf9cec957da3901458d1f

TBD01283815_3.jpg@2e326308109dd082c3c797d28bcc8576

TBD01283815_4.jpg@4983c51f4366cd32aea696a678d05e8b

TBD01283815_5.jpg@df65afa5cd9cc56d4e1f046a9b95347f

Roll over image to zoom in Click on image to zoom

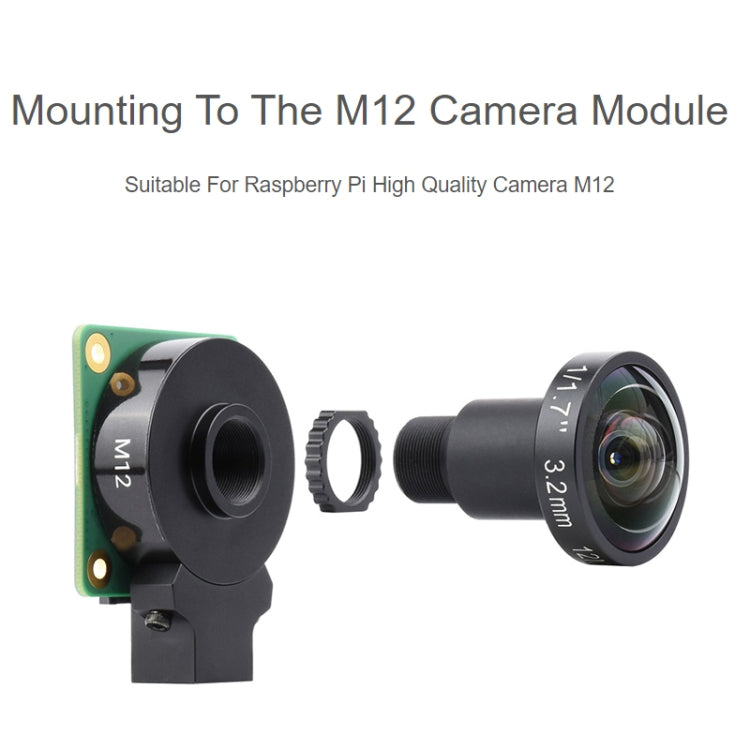

1. For Raspberry Pi M12 camera
2. Resolution: 12MP
3. Focal length: 3.2mm
4. Aperture (F/NO): 2.0
5. Back focus length: 6.14mm
6. Distortion: less than -64%
7. Mounting: M12 x P0.5
8. Construction: 8G+IR
9. Field of view:
- Image format: 1/1.7 inch
- Diagonal: 160 degrees
- Horizontal: 131 degrees
- Vertical: 99 degrees
10. Weight: about 28g

Specification:

Package Weight

One Package Weight

0.04kgs / 0.10lb

One Package Size

8cm * 4cm * 1cm / 3.15inch * 1.57inch * 0.39inch

Qty per Carton

500

Carton Weight

22.00kgs / 48.50lb

Carton Size

50cm * 50cm * 44cm / 19.69inch * 19.69inch * 17.32inch

Loading Container

20GP: 242 cartons * 500 pcs = 121000 pcs
40HQ: 562 cartons * 500 pcs = 281000 pcs
