Name: Waveshare WS1842714 For Raspberry Pi M12 High Resolution Lens, 14MP, 2.72mm Focal Length,23964
Brand: MiOT Store
SKU: TBD01283787
Price: 13.49 USD
Availability: InStock

TBD01283787.jpg@429e76f245a475f21eb287cd5fafe0c5

TBD01283787_1.jpg@4588e4f4b32c0f09fd6fe46c77ef6959

TBD01283787_2.jpg@f981e51d5761aa77acab1f93a1861ec2

TBD01283787_3.jpg@07827486a213021102924a838376da2f

Roll over image to zoom in Click on image to zoom

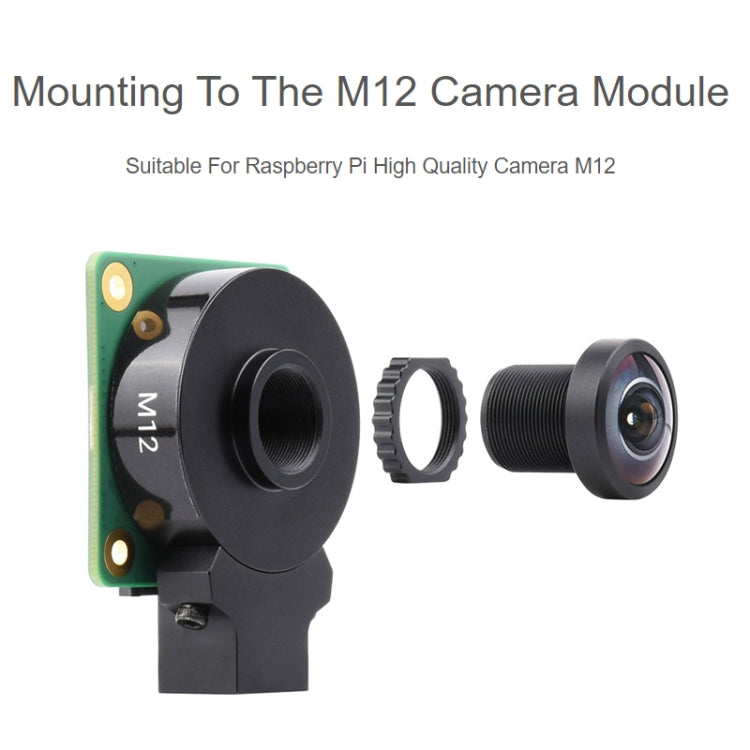

1. For Raspberry Pi M12 camera
2. Resolution: 14MP
3. Focal length: 2.72mm
4. Aperture (F/NO): 2.5

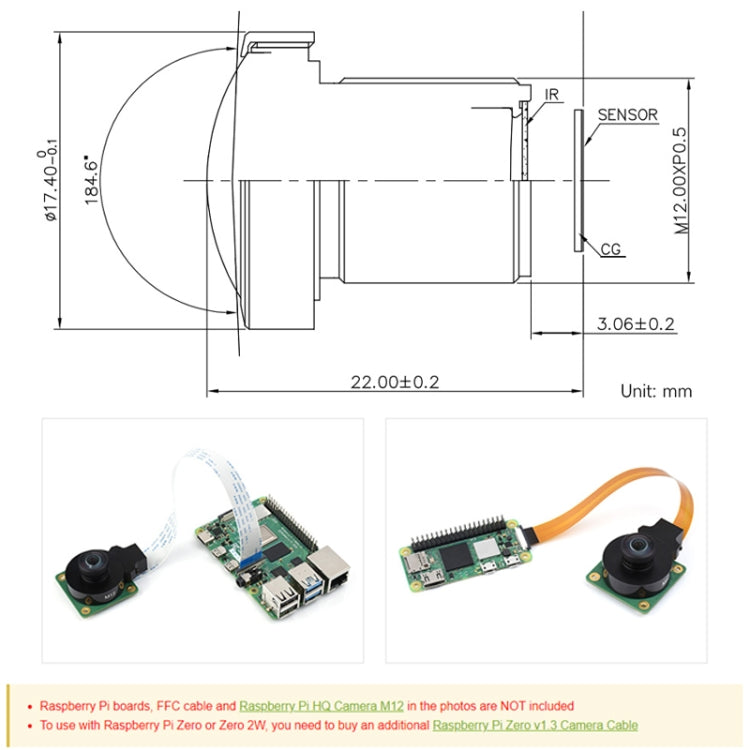

5. Back focus length: 3.06mm
6. Distortion: less than -21%
7. Mounting: M12 x P0.5
8. Construction: 8G+IR
9. Field of view:
- Image format: 1/2.3 inch
- Diagonal: 184.6 degrees
- Horizontal: 140.0 degrees
- Vertical: 102.6 degrees
10. Weight: about 9g

Specification:

Package Weight

One Package Weight

0.02kgs / 0.04lb

One Package Size

8cm * 4cm * 1cm / 3.15inch * 1.57inch * 0.39inch

Qty per Carton

500

Carton Weight

9.00kgs / 19.84lb

Carton Size

30cm * 30cm * 50cm / 11.81inch * 11.81inch * 19.69inch

Loading Container

20GP: 592 cartons * 500 pcs = 296000 pcs
40HQ: 1375 cartons * 500 pcs = 687500 pcs
