1. System configuration:
RK3288 quad-core CPU (Cortex-A17 1.8GHz), Android 9.0 OS, 2GB RAM+16GB ROM
or RK3568 quad-core CPU (Cortex-A55 2.0GHz), Android 11 OS, 2GB RAM+16GB ROM
or RK3399 six-core CPU (2xARM-A72+4xARM-A53 2.0GHz), Android 9.0 OS, 4GB RAM+32GB ROM
2. 10.1-inch HD IPS screen, 1280x800 resolution, 10-point capacitive touch, viewing area 216.96x135.6mm, screen ratio 16:10, brightness 300cd/m2
3. Network: WiFi 802.11 b/g/n, Bluetooth 4.0, 100M/1000M Ethernet

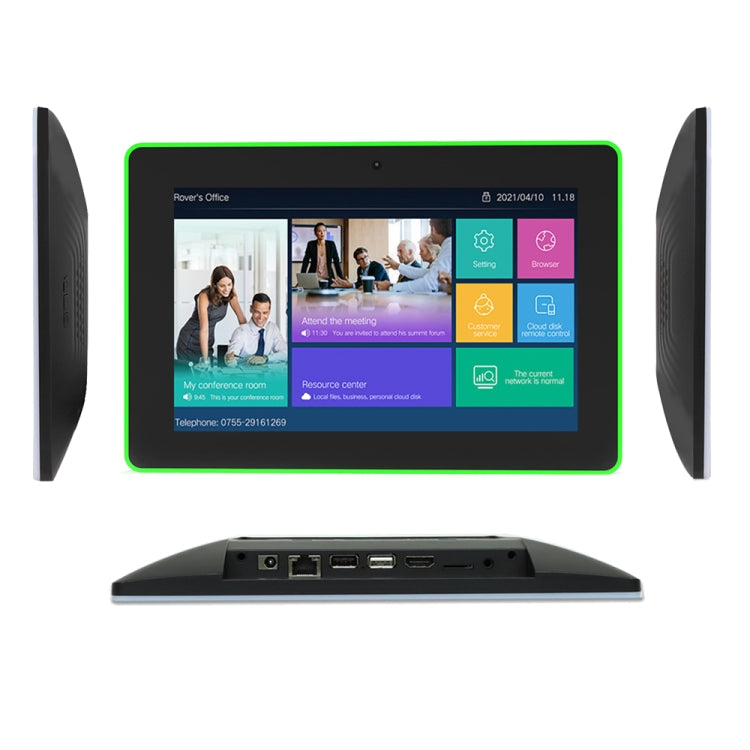

4. Interface: TF card slot x1, HDMI output x1, USB OTGx1, USB (for serial port) x1, RJ45x1, POE (IEEE802.3at/af)x1, DC-in x1, 3.5mm headset & microphone jack x1
5. Multimedia formats:
Video formats: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., supports up to 4K video
Audio format: MP3/WMA/AAC etc.
Image format: jpeg

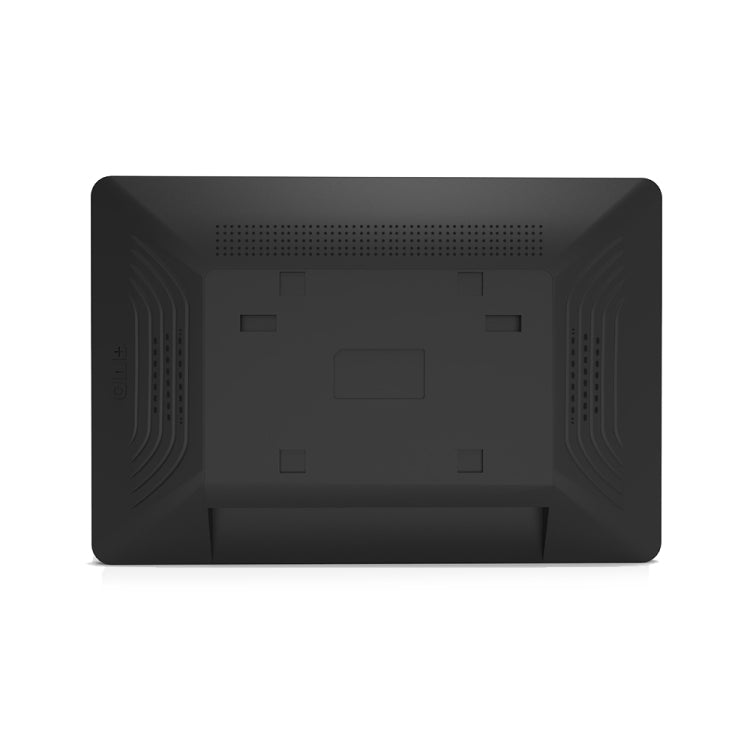

6. VESA size: 75x75mm
7. Speaker: built-in 2x1.5W
8. Camera: 200W front camera
9. Working temperature: 0-40 degrees Celsius
10. Power adapter: 12V/2A
11. OSD language: Chinese, English and other multi-lingual
12. Size: 254.98x173.78x29.75mm
13. Net weight: 1.2kg
Specification:
|
Package Weight
|
| One Package Weight |
1.50kgs / 3.32lb
|
| One Package Size |
32cm * 23cm * 9cm / 12.6inch * 9.06inch * 3.54inch
|
| Carton Weight |
16.00kgs / 35.27lb
|
| Carton Size |
49cm * 33cm * 48cm / 19.29inch * 12.99inch * 18.9inch
|
| Loading Container |
20GP: 343 cartons * 10 pcs = 3430 pcs
40HQ: 797 cartons * 10 pcs = 7970 pcs
|
|
