1. Printing Speeds Up To 152mm/s: Print at up to 152 mm/s for faster printing and improved work efficiency.
2. Multiple Sizes and Media: Supports 25.4-116 mm media in various sizes and materials for flexible printing.
3. Intelligent Temperature Control: Automatically adjusts the printing temperature for stable and consistent performance.

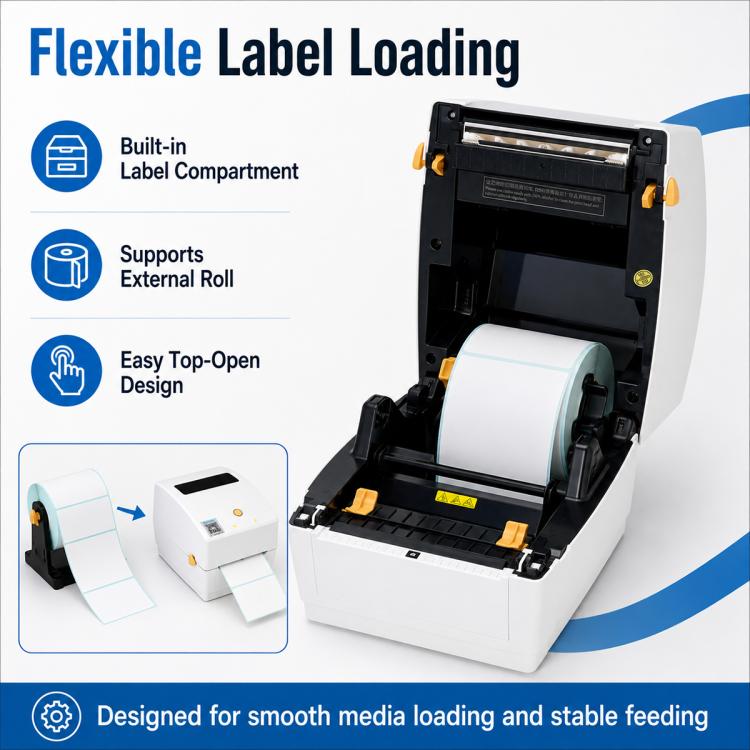

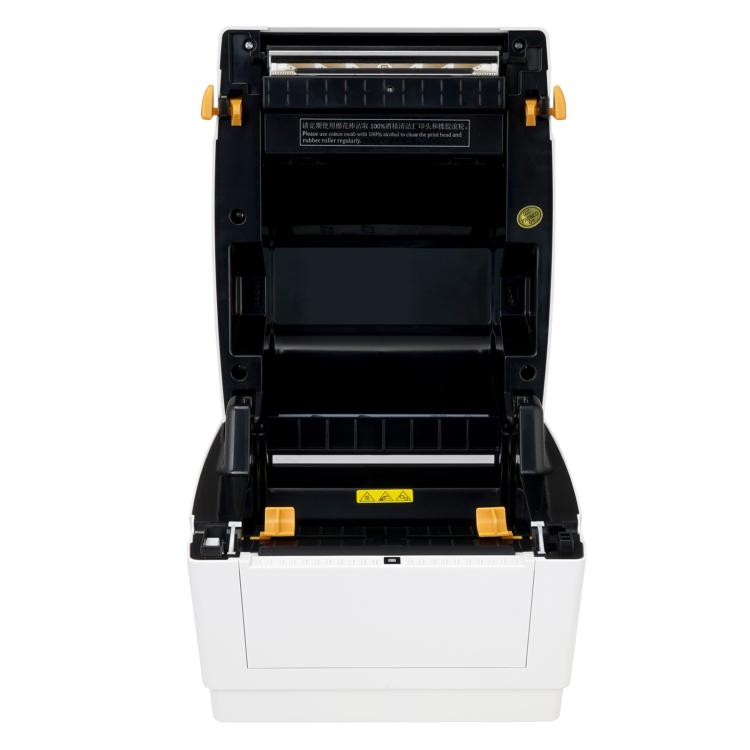

4. Large 127 mm Paper Compartment: Features a large 127 mm paper compartment and supports connection to an external paper holder.
5. Multiple Interfaces and Functions: Offers various interface and function options to meet different printing needs and applications.
Specifications
1. Shell Material: Plastic
2. Product Dimensions: 219 x 189.6 x 178.5mm
3. Product Weight: 1.4kg
4. Resolution: 203 DPI
5. Print Speed: 152 mm/s
6. Print Width: 108mm
7. Print Length: 10-1778mm (0.39-70 inches)
8. CPU: 32-bit RISC CPU
9. Label Roll Capacity: 127mm outer diameter
10. Media Type: Continuous paper, gap paper, black label paper, folded paper, perforated paper
11. Media Width: 25.4-116mm
12. Media Thickness: 0.06-0.25mm
13. Media Core Diameter: 25.4-76.2mm
14. Memory: 8MB Flash Memory / 8MB SDRAM / MicroSD flash memory reader expandable up to 4GB (excluding memory)

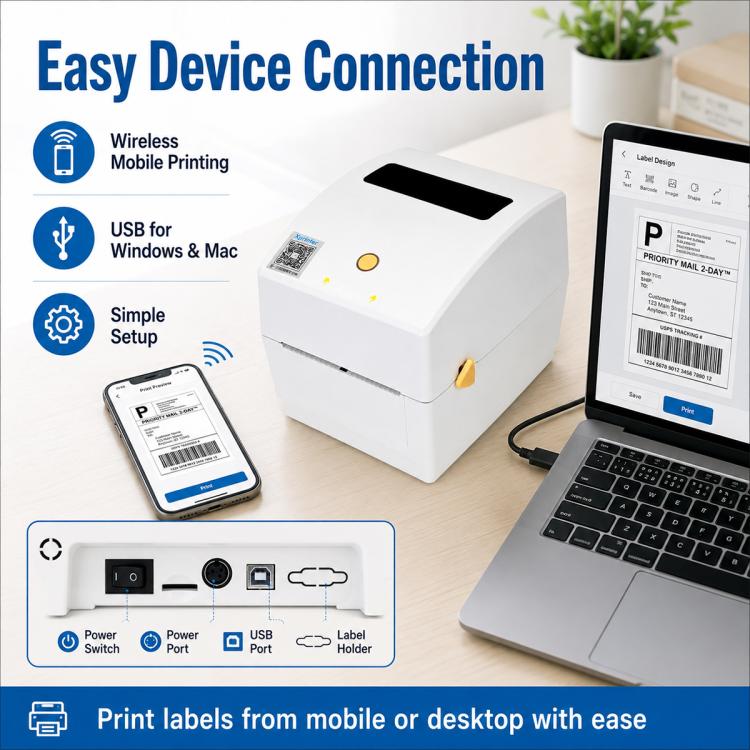

15. Communication interface: Standard USB 2.0
16. Supported barcodes: 1D barcode: Code128 subsets A.B.C, Code128UCC, EAN128, Interleave 2 of 5, Code 39, Code 93, EAN-13, EAN-8, Codabar, POSTNET, UPC-A, UPC-E, EAN and UPC 2(5) digits, MSI, PLASEY, China Post, ITF14, EAN14, Code 11, TELPEN, PLANET, Code 49, Deutsche Post Identcode, Deutsche PostLeitcode, LOGMARS
17. Font and barcode rotation: 0 degrees, 90 degrees, 180 degrees, 270 degrees
18. Printer languages: TSPL, EPL, ZPL, DPL
19. Power input: AC 100-240V 1A, 50-60Hz; Output: DC 24V 2.5A, 60W
20. Operating Environment: 5 to 40 degrees Celsius (41 to 104 degrees Fahrenheit), Humidity (non-condensing) 25-85%
21. Storage Environment: -40 to 60 degrees Celsius (-40 to 140 degrees Fahrenheit), Humidity (non-condensing) 10-90%
Specification:
|
Package Weight
|
| One Package Weight |
1.50kgs / 3.32lb
|
| One Package Size |
30cm * 20cm * 20cm / 11.81inch * 7.87inch * 7.87inch
|
| Carton Weight |
16.00kgs / 35.27lb
|
| Carton Size |
35cm * 42cm * 42cm / 13.78inch * 16.54inch * 16.54inch
|
| Loading Container |
20GP: 431 cartons * 10 pcs = 4310 pcs
40HQ: 1002 cartons * 10 pcs = 10020 pcs
|
|
