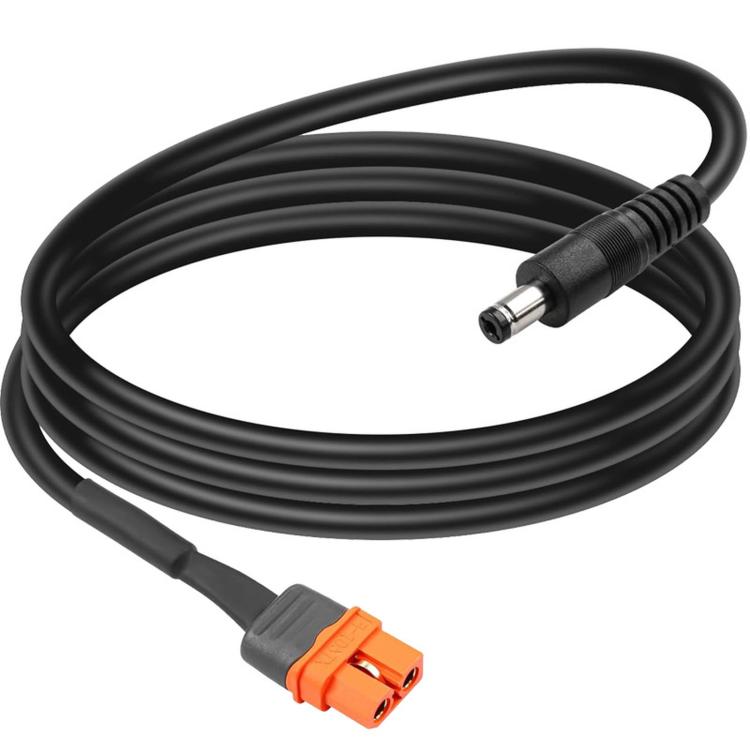

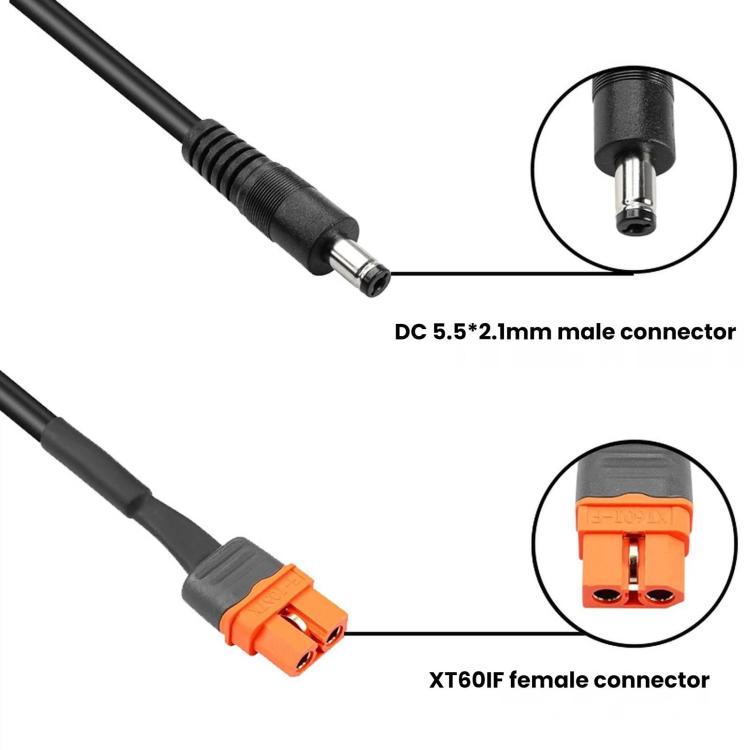

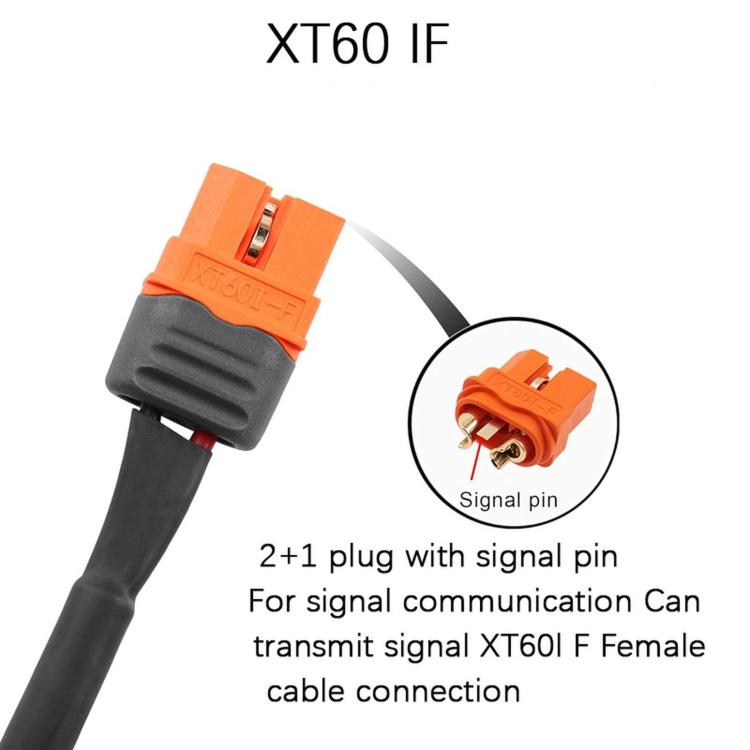

1. One end is a DC 5.5x2.1mm male connector, and the other end is an XT60IF female connector with signal pins, used to connect photovoltaic solar panels, mobile energy storage devices, various remote control models, and outdoor power systems.

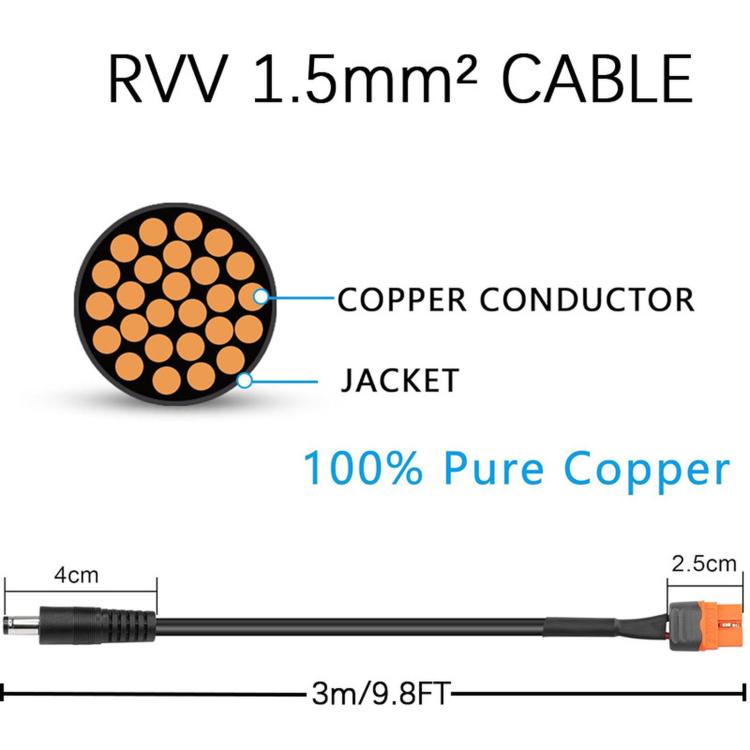

2. Uses RVV specification pure copper wire core, possessing strong conductivity.
3. Capable of carrying large currents, effectively reducing heat generation and loss during power transmission.

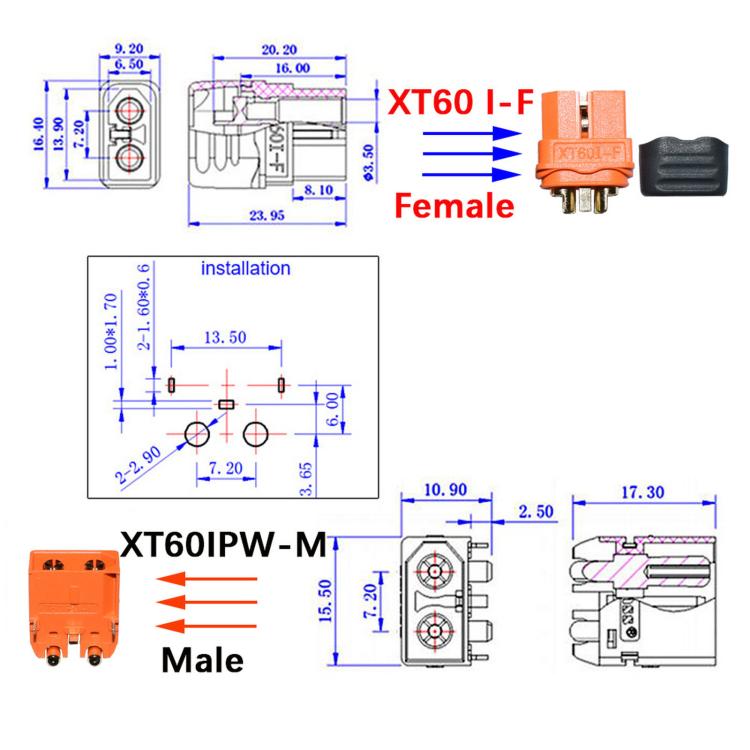

4. The total width of the XT60IF male and female connectors, the internal pin spacing (7.20mm), and the outer shell opening size are all standardly designed to ensure a tight fit during insertion and removal, reducing contact resistance.

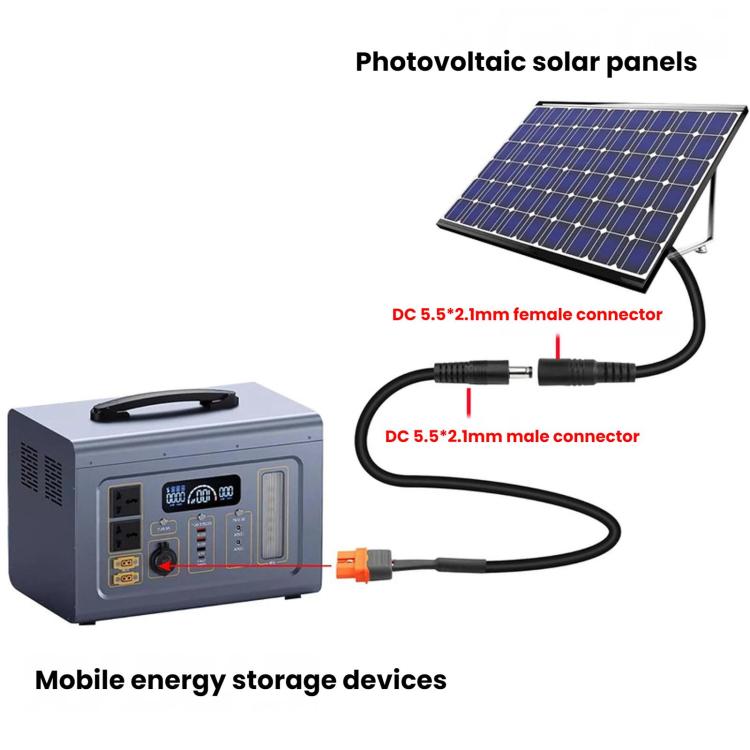

5. One end is a standard DC5521 plug, and the other end is an XT60IF connector, which can be used to connect solar panels (DC female connector) to mobile energy storage devices (XT60 male connector) or other required devices according to the diagram.
6. The outer black sheath has good wear resistance and flexibility, suitable for wiring and storage in confined spaces and outdoor environments.
Specification:
|
Package Weight
|
| One Package Weight |
0.07kgs / 0.16lb
|
| One Package Size |
18cm * 15cm * 5cm / 7.09inch * 5.91inch * 1.97inch
|
| Carton Weight |
2.80kgs / 6.17lb
|
| Carton Size |
38cm * 32cm * 32cm / 14.96inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 685 cartons * 24 pcs = 16440 pcs
40HQ: 1590 cartons * 24 pcs = 38160 pcs
|
|
