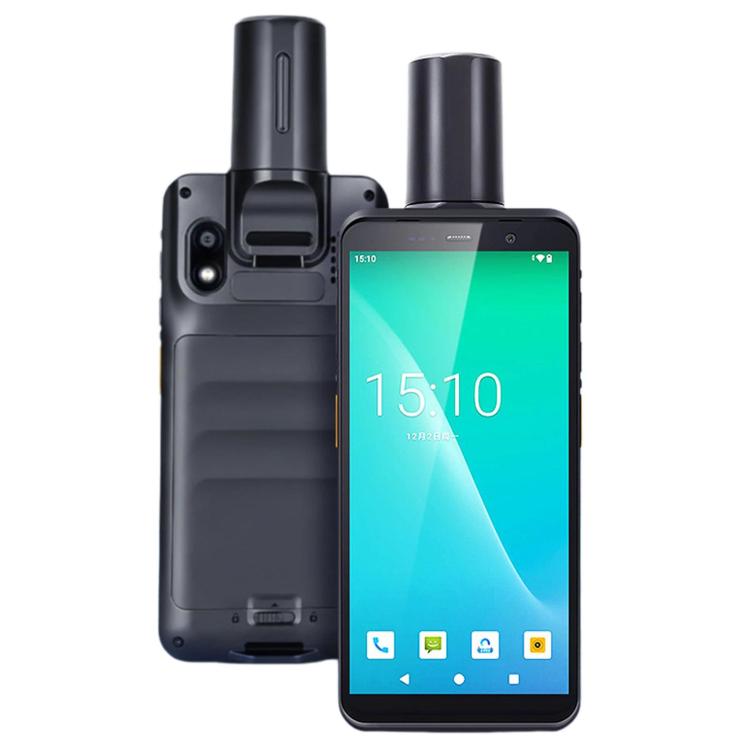

Yokoscan TC60RTK Android Dynamic Positioning Mapping Handheld Terminal AU Plug

1. Features a 6.0-inch high-brightness full-screen display that ensures clear visibility of screen content even in bright light and direct sunlight
2. Equipped with an 8-megapixel front-facing camera and a 13-megapixel rear main camera with a flash; the flash delivers a maximum current output of 1A and can serve as an emergency flashlight, ensuring clear images for everyday photography and on-site evidence collection
3. Supports public network PTT (Push-to-Talk) for one-touch communication, enabling real-time two-way radio communication for field personnel via cellular networks
4. Equipped with dual-band Wi-Fi and a dedicated signal amplification module for stable, uninterrupted network connectivity
5. Compatible with multiple satellite systems including GPS, BeiDou, Galileo, GLONASS, and AGPS; features a built-in positioning antenna for precise location tracking
6. High-capacity removable lithium battery for long-lasting battery life
7. Reinforced overall structure; the body is water-resistant, and the casing is highly durable, scratch-resistant, and wear-resistant
8. Octa-core processor delivers high-performance computing and smooth operation

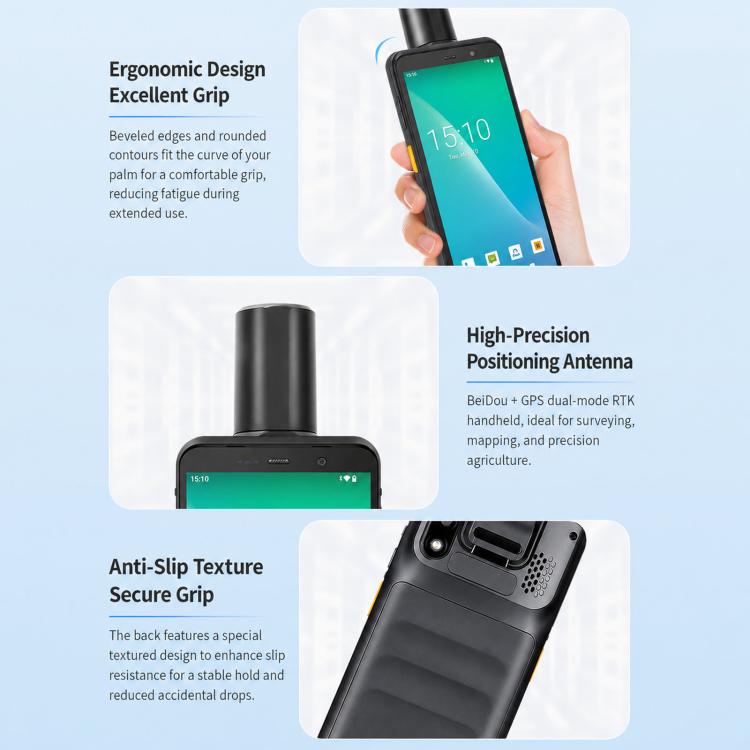

9. Ergonomic body design minimizes soreness and fatigue during extended use

Specifications
1. CPU: MTK8781, octa-core 2.2GHz, 2 x Arm Cortex-A76 up to 2.2GHz, 6 x Arm Cortex-A55 up to 2.0GHz
2. Operating System: Android 14
3. Memory: RAM: 4GB LPDDR4X 4266MHz; ROM: 64GB
4. Expandable storage: supported; MicroSD up to 1TB; supports SDIO-encrypted T-cards
5. Display: 5.99-inch TFT (IPS)
6. Resolution: HD+, 720 x 1440
7. Touchscreen: INCELL multi-touch capacitive

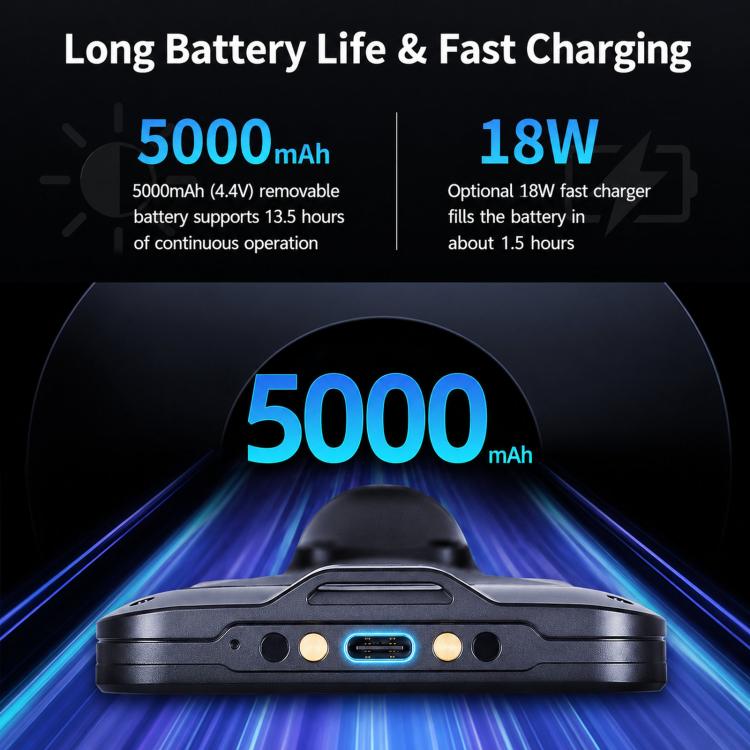

8. Main battery: 5000mAh (4.4V), tool-free removal of the integrated battery (lithium-polymer, supports 0V charging); supports RTC battery (on-board button cell battery for maintaining time during battery replacement)
9. Cover glass: full lamination (1.1mm tempered glass cover)
10. Charging time: about 4.5 hours (using a 10W charger) about 3 hours (using a 15W fast charger)
11. Standby time: 168 hours (7 days); operating time: 13.5 hours; about 9.5 hours with LCD brightness and volume set to maximum
12. Audio: supports MIC (dual silicone microphones); supports noise cancellation; supports PA-type audio; supports speaker (100dB loudspeaker); Supports motor; supports earpiece
13. Port: USB Type-C port
14. I/O ports: USB x 1: standard Type-C port (USB 2.0 device, supports OTG), waterproof body; 2-pin charging dock x 1 (5V~2A, supports UC100 universal charging dock)
15. Buttons: left side of the device (FN key + 2 volume keys); right side of the device (FN key + Power key + FN key)
16. Cameras: front camera: 8 MP, fixed focus (FF), f/2.4; main camera: 13 MP, PDAF, f/2.2; supports flash (maximum current 1A, supports flashlight function)
17. Sensors: proximity sensor, gravity accelerometer, Hall sensor, geomagnetic sensor, gyroscope
18. Card slot type: SIM card slots: NanoSIM + NanoSIM/TF (built-in choose two out of three card tray-style battery compartment)
19. Status indicator: three-color LED: Slow flashing for low battery, red for charging, green for full charge
20. SIM mode: supports dual-SIM dual-standby; supports primary/secondary SIM switching
21. Voice solutions: VoLTE, ViLTE, VoWiFi
22. Positioning: GPS/Beidou/Galileo/GLONASS/AGPS (built-in antenna)
23. NFC: ISO 18092, ISO 14443 A/B, ISO 15693 protocols, Mifare compliance
24. Bluetooth: BLE 5.2, 3.0+HS, 2.1+EDR
25. Operating temperature: -20°C to 55°C
26. Storage temperature: -40°C to 70°C
27. Humidity: 5%RH to 95%RH (non-condensing)

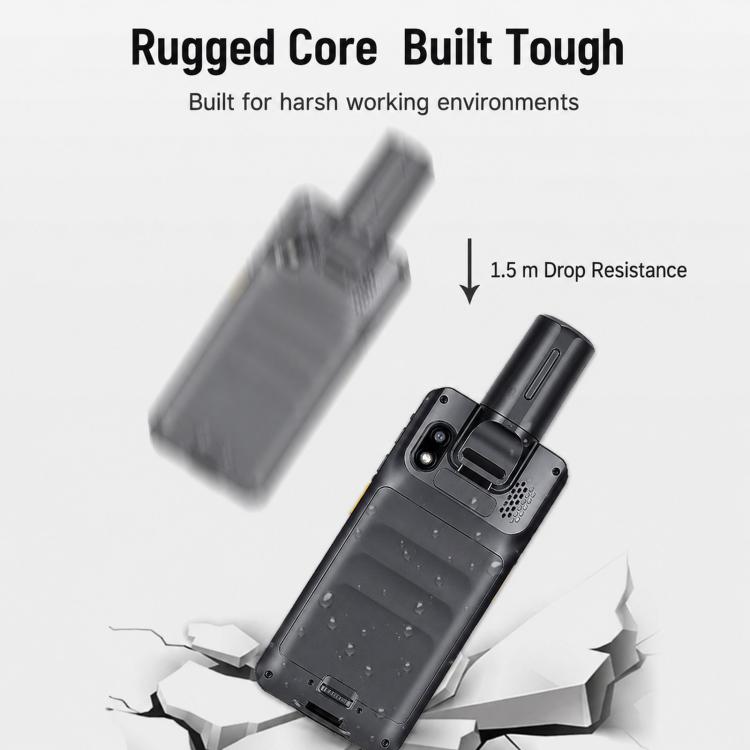

28. Drop resistance: withstands multiple drops from a height of 1.5 meters onto a smooth concrete surface
29. IP Rating: IP67 (waterproof, dustproof, and shockproof)
30. Electrostatic discharge (ESD) protection: ±12 kV air discharge, ±8 kV contact discharge
31. Material: high-strength engineering plastic
