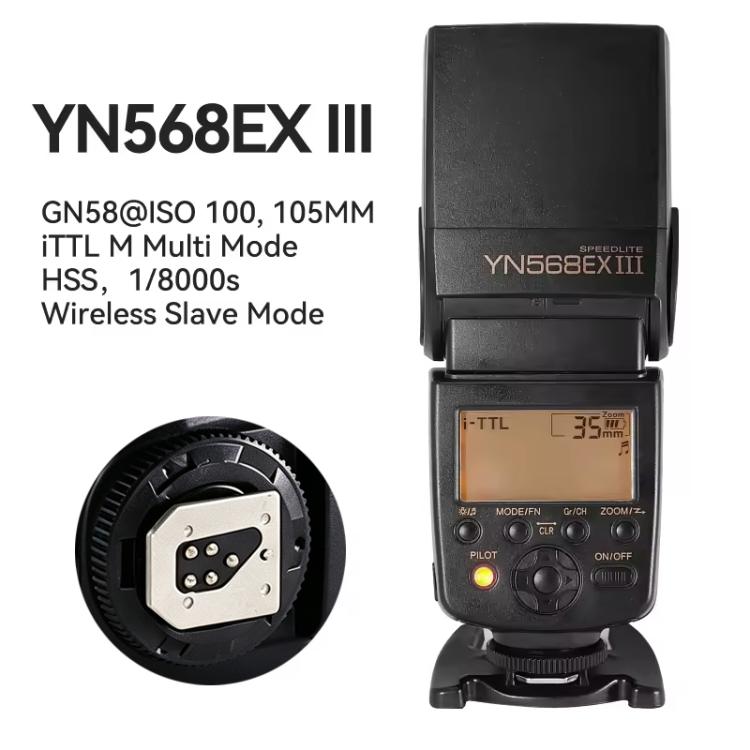

Features1. Support C optical transportation wireless master flash: In the optical transportation wireless flash shooting, the YN568EX III can be used as a master unit to trigger YONGNUO and C EX series speedlite(except the YN585EX), and supports 4 channels, realize wireless TTL, manual flash and stroboscopic flash.
2. Compatible with C and N optical transportation wireless slave flash: One YN568EX III can respectively accept the master unit of YN600EX-RT II, YN568EX II, YN568EX III, 600EX(II)-RT, 580EX II, SB-910/900/800/700, for Nikon internal flash and for Canon commander and wireless signal of 7D/60D/600D, realiszs external TTL, manual flash and stroboscopic flash.
3. GN58 ISO100, 105mm, and supports automatic & manual zooming(24-105mm): High index TTL flash, supports TTL, M, Multi flash; and supports supports automatic & manual zooming, the focal length can be varied between 24-105mm.
4. Supports high speed sync(HSS) flash and with high speed recyling(2s) system: The YN568EX III can synchronize with all shutter speeds, realize TTL and manual flash, 1/8000s maximum shutter sync; and the recyling time for full output just takes 2 seconds.
5. Multiple trigger modes, automatic settings saving and custom setting supported: YN568EX III can be triggered by the camera set-top, PC synchronization trigger and wireless optical trigger off the camera.
6. Supports firmware upgrade: The YN568EX III is equipped with USB interface, you can download the latest firmware from YONGNUO official website to upgrade the speedlite.
7. LCD Display: Equipped with large-size LCD display and 2.5mm PC interface, and supports the battery remaining power real-time display, convenient to use.
YN568EX III C Suit for1), Hot shoe TTL mode:
For Canon 1Dx, 1Ds series, 1D series, 5DIV, 5DIII, 5DII, 5D, 7D, 7DII, 6D, 80D, 70D, 60D, 50D, 40D, 30D, 20D, 800D, 750D, 700D, 650D/T4i, 600D/T3i, 550D/T2i, 500D/T1i, 450D/Xsi, 400D/Xti, 350D, 100D, 1100D, 1000D, 1200D, 1300D
2), Wirelss TTL Slave mode:
For Canon 5DIII 7D 60D 700D 650D 600D, Yongnuo ST-E2, Canon 580EX II
For Nikon SB-910, SB-900, SB-800, SB-700, Commander SU-800,
Camera with CLS i-TTL system: D4, D3x, D3s, D3, D2x, D700, D300s, D300, D200, D7000, D90, D80
Master Mode, It can trigger these flash:
YONGNUO: YN568EX III, YN568EX II, YN685, YN568EX, YN565EX, YN500EX, YN560EX, YN510EX
For Canon: 600EX-RT, 580EX II, 580EX, 430EX II
Specifications1. Product Model: YN568EX III
2. Circuit design: Insulated Gate Bipolar Transistor (IGBT)
3. Guide No.: 58(ISO 100, 200mm)
4. Flash mode: TTL, M, Multi
5. Trigger Mode: Set-top, wireless optical slave (Sc, Sn, S1, S2)
6. Zoom range: 20,24,28,35,50,70,80,105mm
7. Vertical rotation angle: -7-90 degree
8. Horizontal rotation angle: 0-270 degree

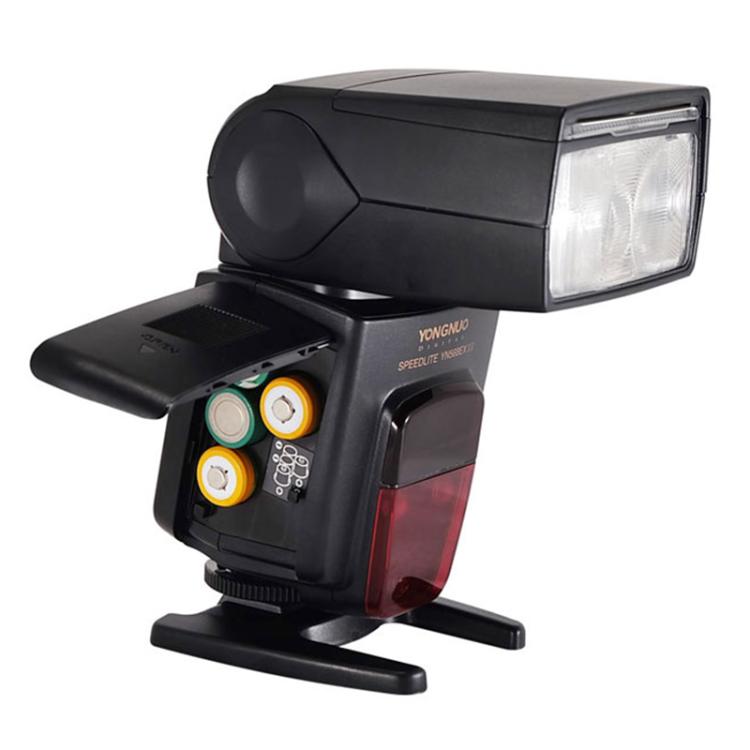

9. Power supply: 4xAA Alkaline battery or AA NI-MH battery (not included)
10. Light-emitting times: 100-1500 times (with AA alkaline battery)
11. Recycle time: Approx. 2s (with new AA alkaline battery)
12. Color temperature: 5600k
13. Flash time: 1/200s-1/20000s
14. Flash control: 8 levels of output control (1/128-1/1), 29 levels of fine tuning in total
15. External interface: Hot shoe, PC port, USB port
16. Wireless triggering distance: 20-25m indoors, 10-15m outdoors
17. Dimensions: 62x72x188mm
18. Net Weight: 350g
Package List1. YN-568EX III Flash Speedlite x 1
2. Mini Stand x 1
3. Manual in English and Chinese x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.60kgs / 1.32lb
|
| One Package Size |
22cm * 10cm * 8cm / 8.66inch * 3.94inch * 3.15inch
|
| Carton Weight |
12.20kgs / 26.90lb
|
| Carton Size |
42cm * 42cm * 22cm / 16.54inch * 16.54inch * 8.66inch
|
| Loading Container |
20GP: 687 cartons * 20 pcs = 13740 pcs
40HQ: 1595 cartons * 20 pcs = 31900 pcs
|
|
